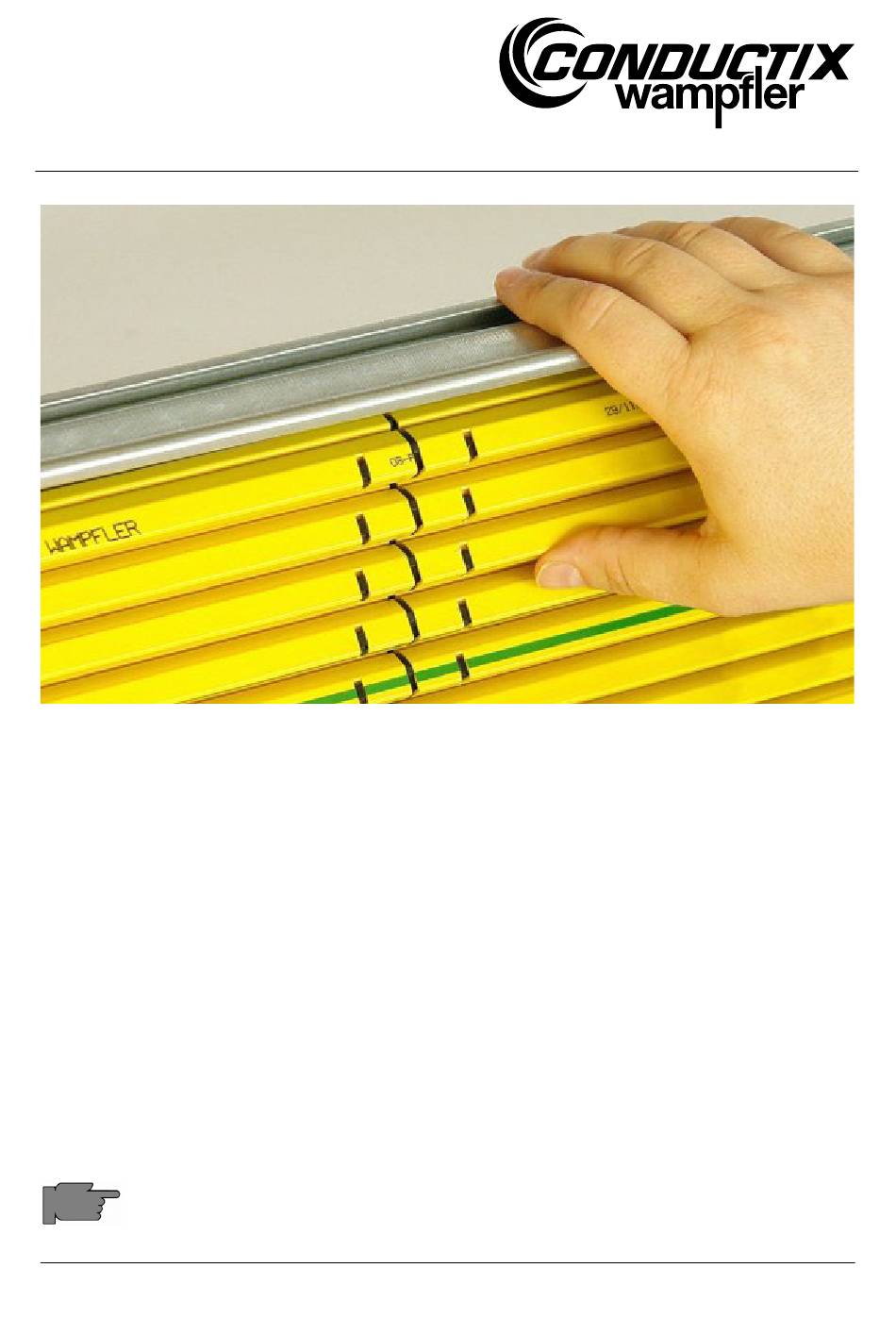

Operating instructions
Conductor rail program 0832
System module and tools
Content
1
System module for conductor rail 0832 ................................................................................................................................... 2
2
Tools for conductor rail 0832 ................................................................................................................................................... 6
2.1
2.2
Reprints and reproductions, even in excerpts, are only permitted with our approval.
© Conductix-Wampfler AG / 2009
First read the operating instructions BAL0832-0001 with the included system description. It is enclosed in the
basic module.
BAL0832-0002a-EN
www.conductix.com
Page
Page 1 of 12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Conductix-Wampfler 0832
Summary of Contents for Conductix-Wampfler 0832
- Page 1 Conductor rail program 0832 System module and tools Content Page System module for conductor rail 0832 ........................... 2 Tools for conductor rail 0832 ..............................6 Content of tool kit “Standard” ............................6 Content of tool kit “Profi” ............................10 Reprints and reproductions, even in excerpts, are only permitted with our approval.
-
Page 2: System Module For Conductor Rail 0832
1 System module for conductor rail 0832 • The conductor rail of series 0832 is constructed on an efficient logistics and module concept. Here, logical units that contain all f the necessary parts are delivered pre-packaged, so that these can be delivered directly to the assembly location. - Page 3 Operating instructions Conductor rail program 0832 System module and tools 6 x connector pin (compare 6 x insulating connector (compare 6 x clamping plate (compare assembly instructions of the assembly instructions of the assembly instructions of the support profile) insulation profile)
- Page 4 Operating instructions Conductor rail program 0832 System module and tools B) Expansion modules - Contain all aisle components for expanding the basic module to the aisle length. They are available in 24, 8 and 4 m. Content: Insulation profile snapped into the support profile; 4 m.
- Page 5 • Shorting system components: The conductor rail 0832 is designed as a 4 m system. The support profiles and the insulation profiles are delivered and installed in this length. It is always possible that collisions of connecting points, especially those of the support profile and the system hangers/rack consoles or other assemblies develop.
-
Page 6: Tools For Conductor Rail 0832
Conductor rail program 0832 System module and tools 2 Tools for conductor rail 0832 There are 2 tool kits for the simplified assembly - Standard and Profi. The Profi tool kit can also be leased. 2.1 Content of tool kit “Standard”... - Page 7 Operating instructions Conductor rail program 0832 System module and tools • 1 x disassembly tool A disassembly tool is provided to separate the connected insulation profile ends. It is marked with “TOP” for proper handling. The wing nut must be released [A], so that the bracket can be shifted upward in longitudinal hole [B]. The disassembly tool must be attached below in the C-groove of the support profile [C].
- Page 8 Operating instructions Conductor rail program 0832 System module and tools If an attachment in the C-grooves of the support profile is not possible, the disassembly tool must be turned and pushed manually into the slits of the insulation profile with its handle [I], in order to release the snap hooks.
- Page 9 Operating instructions Conductor rail program 0832 System module and tools • 1 x saw jig The slits must be sawed into the PVC profile with the aid of the saw jig. The device must be pressed into the insulation profile up to the stop (compare the following illustrations).
-
Page 10: Content Of Tool Kit "Profi
Operating instructions Conductor rail program 0832 System module and tools Saw blade The remaining intermediate bridges (2) must be broken out with a small screwdriver. By using such an insulating connector it must be checked to determine if the individual snap hooks snap easily behind the sawed areas. - Page 11 - The illustrations are intended as aids. They may not show the current status of a component or assembly! Note: Conductix-Wampfler will not assume any liability and warranty for operation breakdowns and damages as a result of non-compliance with these assembly instructions! BAL0832-0002a-EN www.conductix.com...
- Page 12 Operating instructions Conductor rail program 0832 System module and tools Conductix-Wampfler GmbH Phone: +49 (0) 7621 662-0 Rheinstraße 27 + 33 Fax: +49 (0) 7621 662-144 79576 Weil am Rhein - Märkt info.de@conductix.com Germany www.conductix.com Importer for the United Kingdom: Conductix-Wampfler Ltd.
