Mounting the fixed point

A fixed point consists of a hanger clamp and 2 fixed point clamps per pole. The positions of the fixed points are determined when
planning the system. The correct positioning of the fixed points is crucial for the thermal expansion behavior of the conductor-rail
system.
Establishing a fixed point:
→ Install a fixed point left and right of a hanger clamp per conductor-rail pole. The fixed-point cap is secured by an engagement
cam in a hole in the side wall of the conductor-rail.
→ Scribe the position on the conductor-rail before installation.
→ Put the fixed-point cap on the conductor-rail as a drilling jig and drill a 3-mm hole through the insulation and copper profile on
one side.
→ Remove the fixed-point cap and replace it after rotating through 180° and insert an engagement cam into the hole.

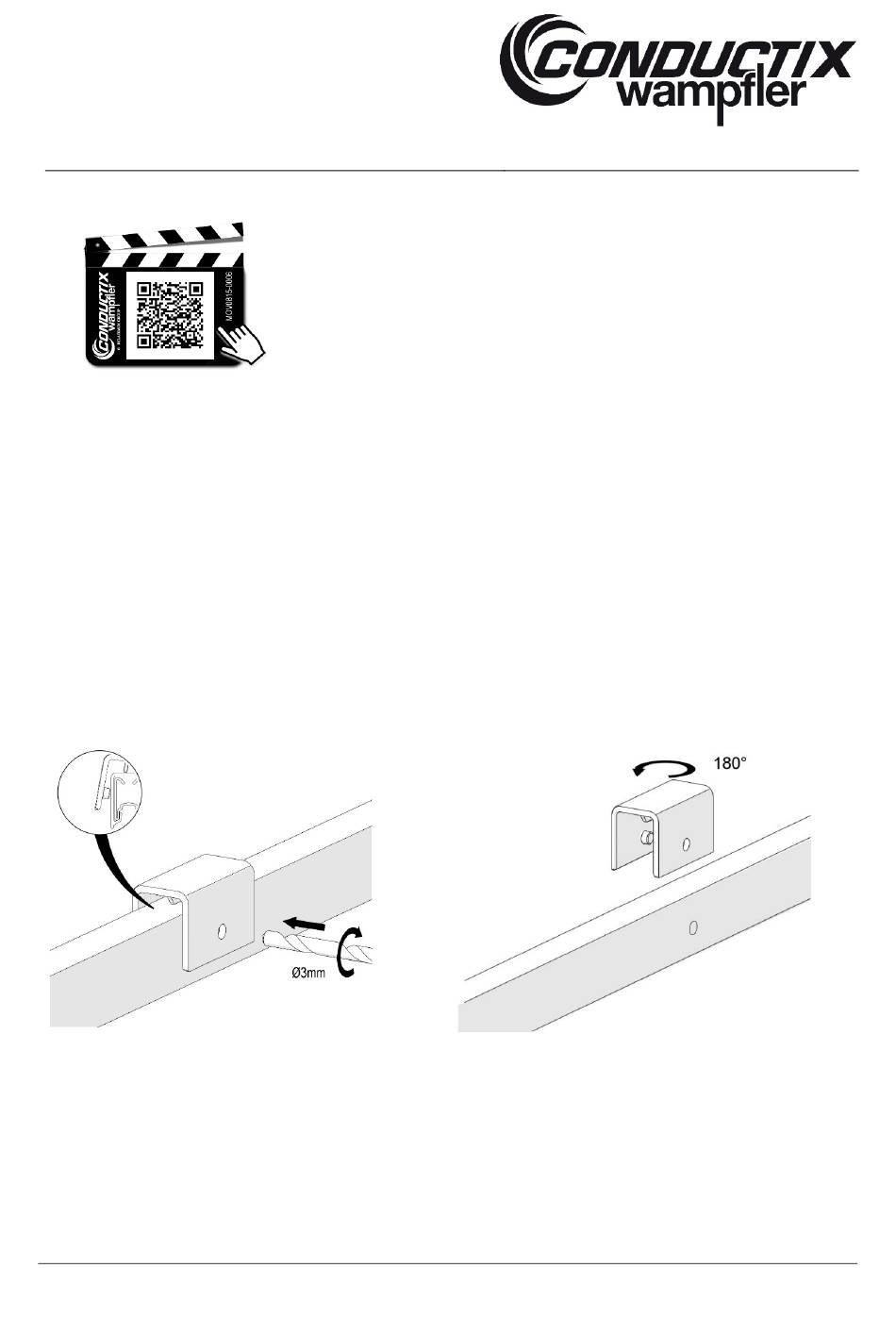

Fig. 62: Drill the hole for the engagement cam, insulating profile and
copper element
BAL0815-0002d-US
www.conductix.us
Use the QR code
Mounting End Cap for End Cap Base and Clipping Rail.
Fig. 63: Rotate the fixed-point cap through 180°.
translated document
("click" or "scan"), to watch our animation
