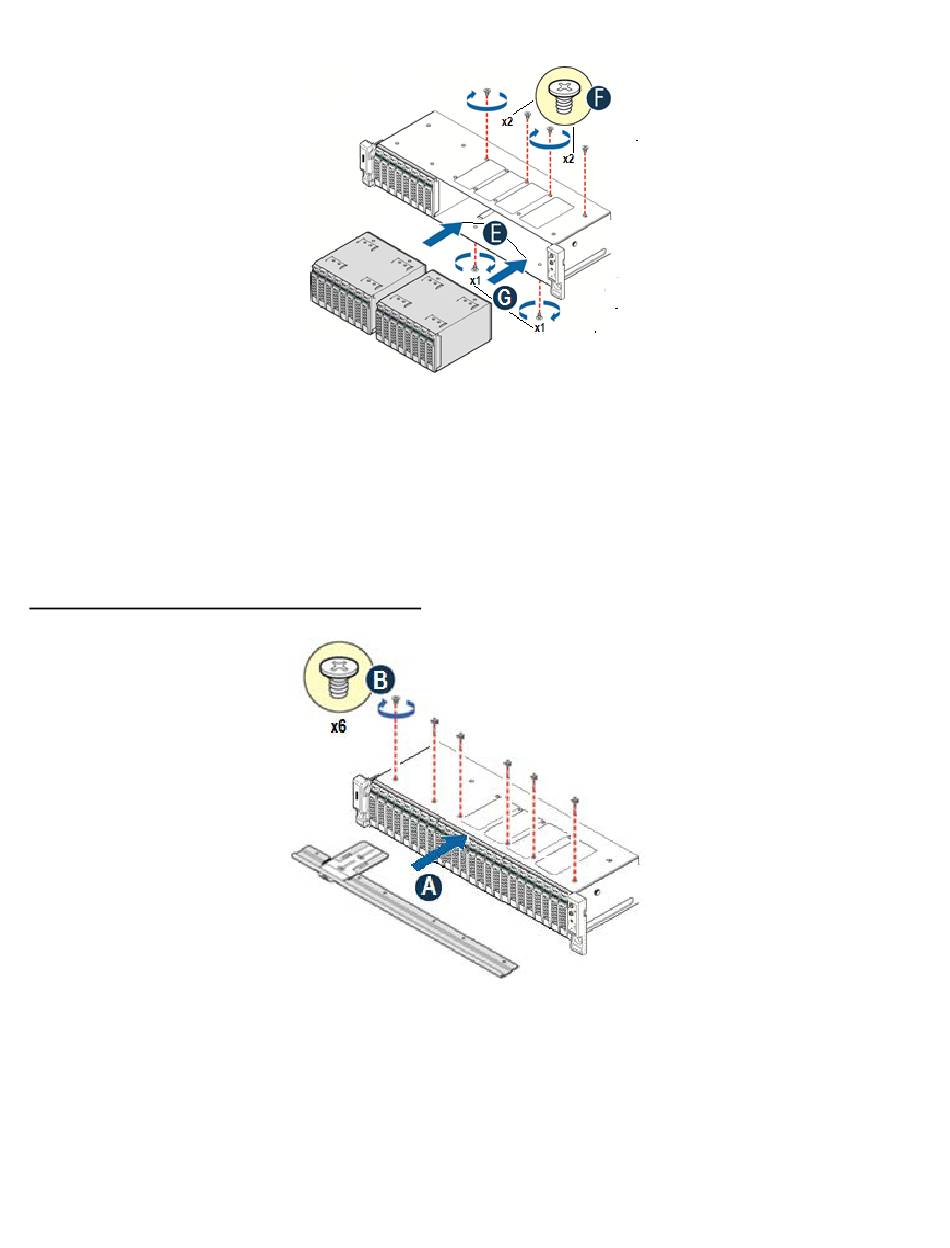

• Slide all 8x2.5" drive bay module(s) into the chassis (see letter 'E')
Secure the top side of each drive bay module with two fastener screws each (see letter 'F') (8 in/lbs
•
torque for each screw)
Carefully place the chassis on its side and secure the bottom side of each drive bay module with one
•
fastener screw (see letter 'G') (8 in/lbs torque for each screw)
Carefully return the chassis to its original position
•
Install drive bay retention bracket
• Locate the drive bay retention bracket and screws
Carefully slide the drive bay retention bracket into the gap between the top of the drive bay module(s)
•
and the bottom of the drive bay sheet metal. (see letter 'A').
Secure the retention bracket with six fastener screws (see letter 'B'). (8 in/lbs torque for each screw)
•
Connect a power cable to each of the hot swap backplanes
•
Note: if installing a RAID expander card, do NOT attach the power cable to the middle hot swap backplane.
This will be attached at a later time.
