3.10 Intel ® RAID Maintenance Free Backup Unit (RMFBU) –
Mounting Bracket Installation
Locate the RMFBU mounting bracket from the system accessory kit
•
• Place the RMFBU bracket onto the air duct (see letter 'A')
Secure the RMFBU bracket to the air duct using the four fastener screws (see letter 'B')
•
Slide and lock the RMFBU onto the bracket (see letter 'C')
•

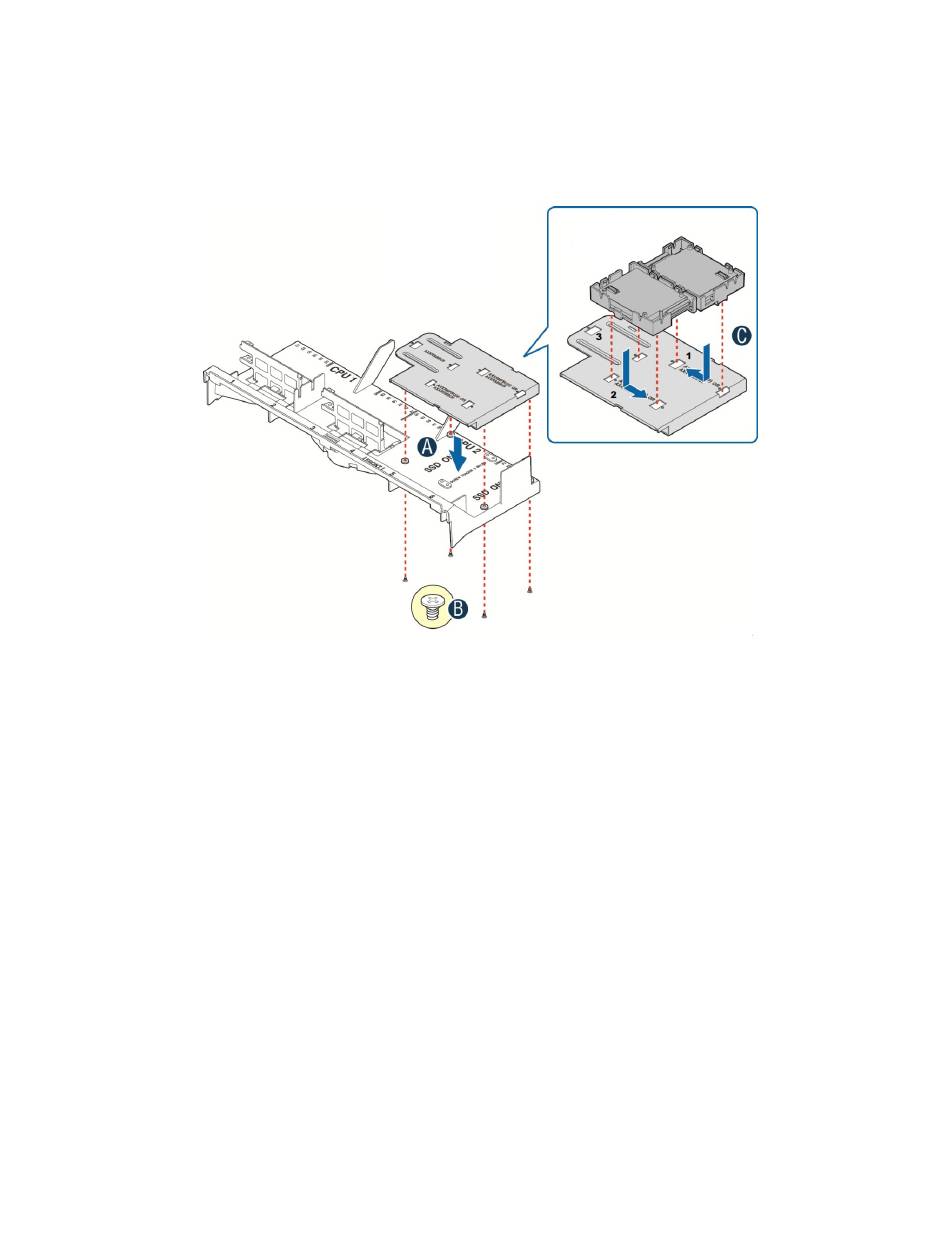

Figure 76. Intel® RMFBU Installation
