Install 8 x 3.5" Front Drive Bay Module into Chassis
• Remove the bottom four drive trays from the drive bay module
Slide the 8 x 3.5" Front Drive Bay module into the front of the chassis (see letter 'A')
•
Push the drive bay module in far enough so that the screw holes on the top of the drive bay are properly
•
aligned
• Using 8 fastener screws, secure the drive bay module to the chassis (8 in/lbs torque) (see letter 'B')
Locate the drive bay retention clip
•
Slide the drive bay retention clip over the bottom edge of the drive bay assembly as shown in the
•
illustration. The retention clip should clamp together the bottom of the drive bay module to the chassis
base.
14

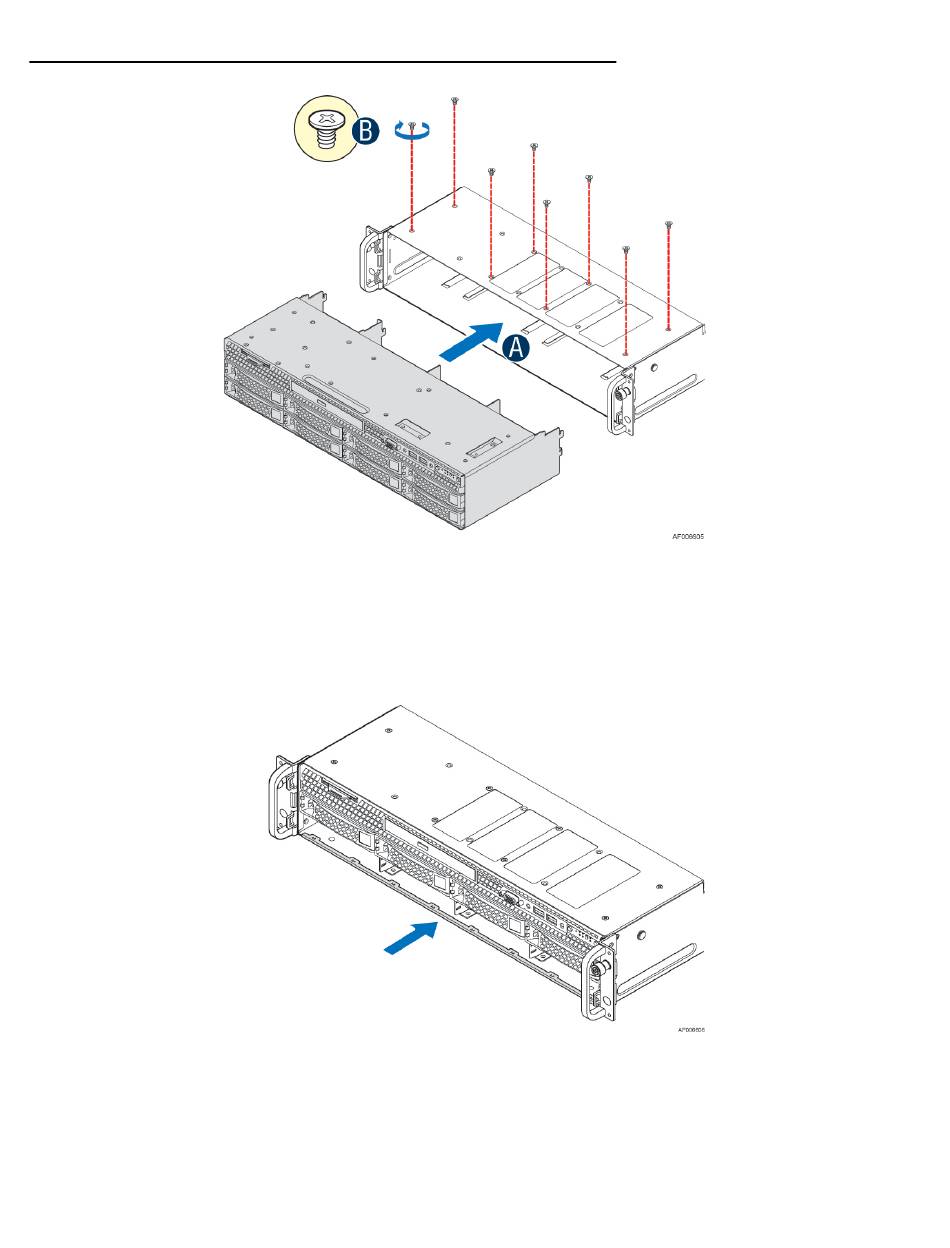

Figure 12. 8x3.5" Front Drive Bay Module Installation
Figure 13. 8x3.5" Front Drive Bay Retention Clip Installation
