• Locate the two black plastic air duct sidewalls
Fasten down the appropriate air duct side wall onto each side of the server board using 8 in/lbs torque
•
for each screw (See letter 'C')
Re-attach all cables previously removed from the server board
•
Install processor(s) (see section 2.5.2)
•
Install DIMMs (see section 2.6.2)
•
• Re-Install all options previously removed from the server board
Re-Install riser card assemblies (see section 2.8.4)
•
Re-attach all internal cables previously detached from add-in cards and modules
•
Re-install system fan assembly (see section 2.4.2)
•
Re-install air duct
•
• (If installed) re-attach cables to any device mounted to the air duct
Install power supply module(s) (see section 3.2.1)
•
Install system cover (see section 2.2.2)
•
100

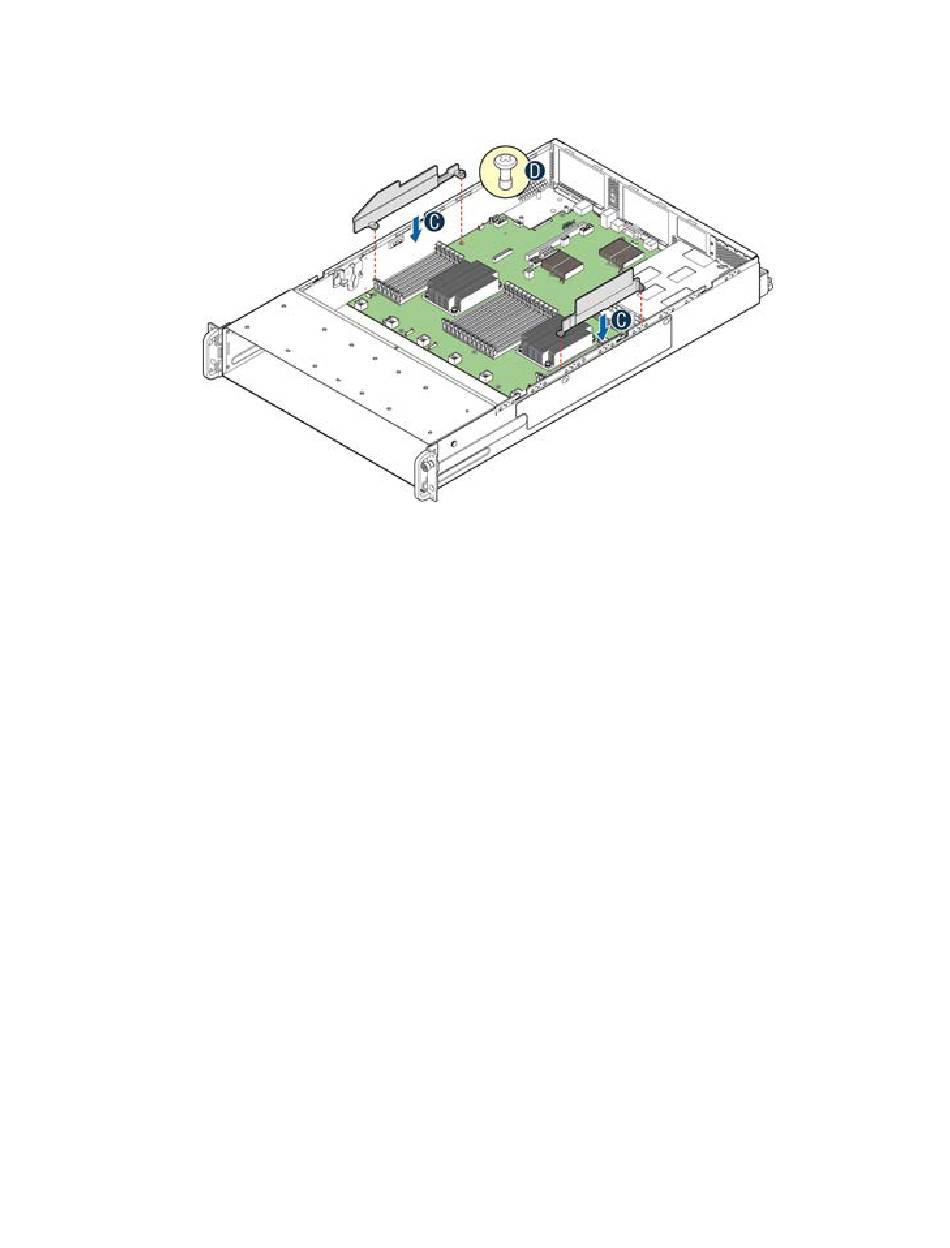

Figure 104. Air Duct Sidewall Installation
