Server System R2000WT Product Family System Integration and Service Guide
2.7.2.2
2.5" Hard Disk Drive (HDD) / SoIid State Device (SSD) Installation
Remove the four screws securing the plastic drive blank to the carrier (see letter 'C')
•
Remove the drive blank from the carrier (see letter 'D')
•
Install the storage device into the carrier. Verify the connector end of the drive is located towards the
•
back of the carrier (see letter 'E').
Secure the drive to the carrier using four screws
•
2.7.2.3
2.5" Drive Carrier Insertion
•
With the lever open, insert the drive assembly into the chassis
Push in the lever to lock it into place (see letter 'F')
•
2.7.3
Internal Fixed Mount SATA SSD – Installation / Removal
The system has support for upto two internal fixed mounted SATA Solid State Devices (SSDs). SSD's can be
mounted to either of the two available air duct options. SSD installation and removal procedures are the
same for both air ducts.

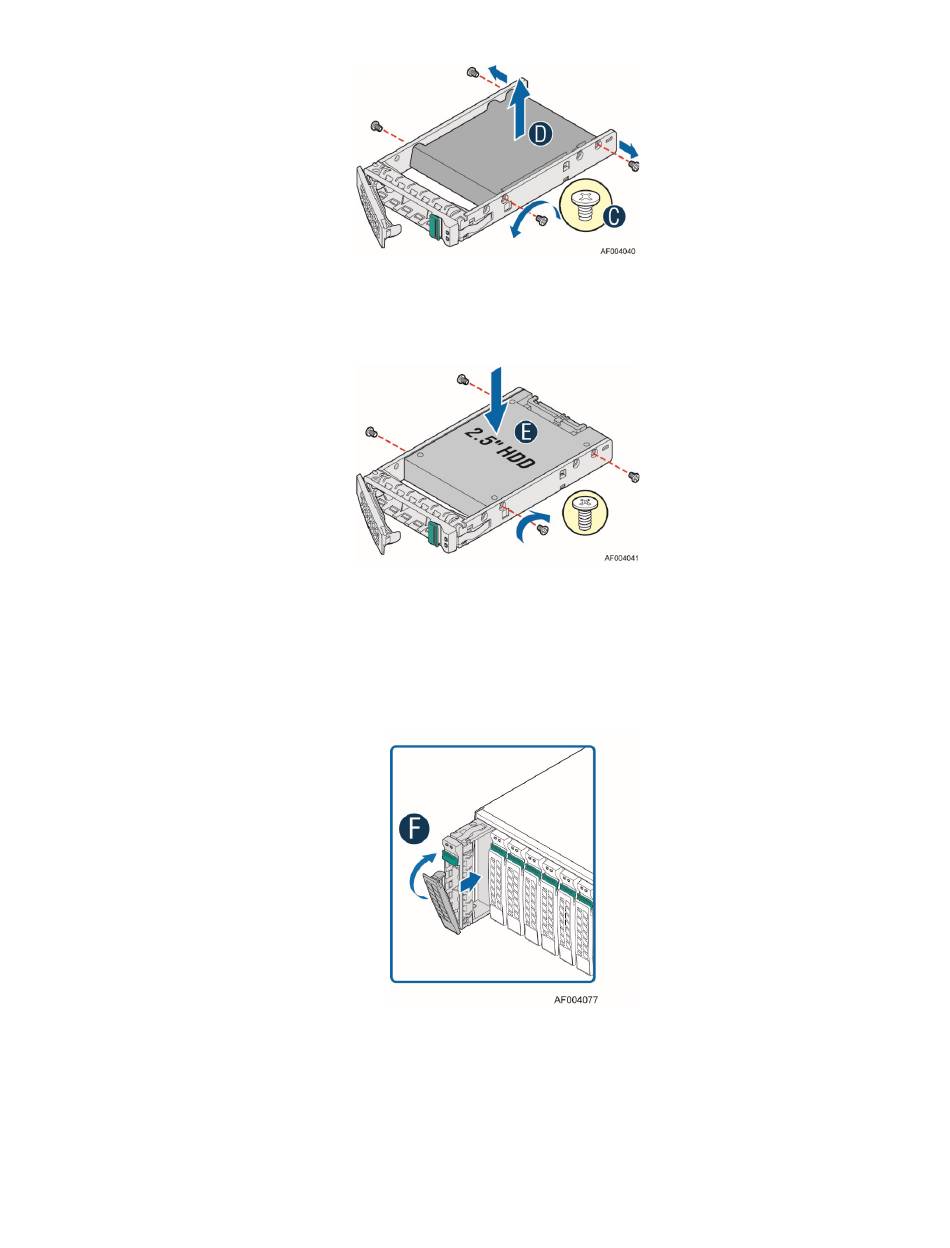

Figure 46. 2.5" Storage Device Installation – Remove the drive blank
Figure 47. 2.5" Storage Device Installation – Mount Drive to Carrier
Figure 48. 2.5" Storage Device Installation – Inserting 2.5" Drive assembly
