Place the Solid State Drive onto the air duct (see letter 'A').
•
• Secure the Solid State Drive with four screws (see letter 'B').
Install the air duct (see section 2.3.2)
•
• Attach the SATA and Power cables to the SSD (see letter 'C').
2.7.3.2 Internal Fixed Mount Solid State Drive Removal
NOTE: The internal SSD is NOT hot-swappable. Before removing or replacing the drive, you must first take the
server out of service, turn off all peripheral devices connected to the system, turn off the system by pressing
the power button, and unplug the power cord from the system or wall outlet.
• Remove the system cover (see section 2.2.1)
Detach the SATA and Power cables from the back of the SSD (see letter 'A').
•
• Remove the air duct from the system (see section 2.3.1)
Remove the four screws to release the Solid State Drive (see letter 'B').
•
Remove the SSD from the air duct (see letter 'C').
•
Figure 50. Internal fixed mount SSD Installation

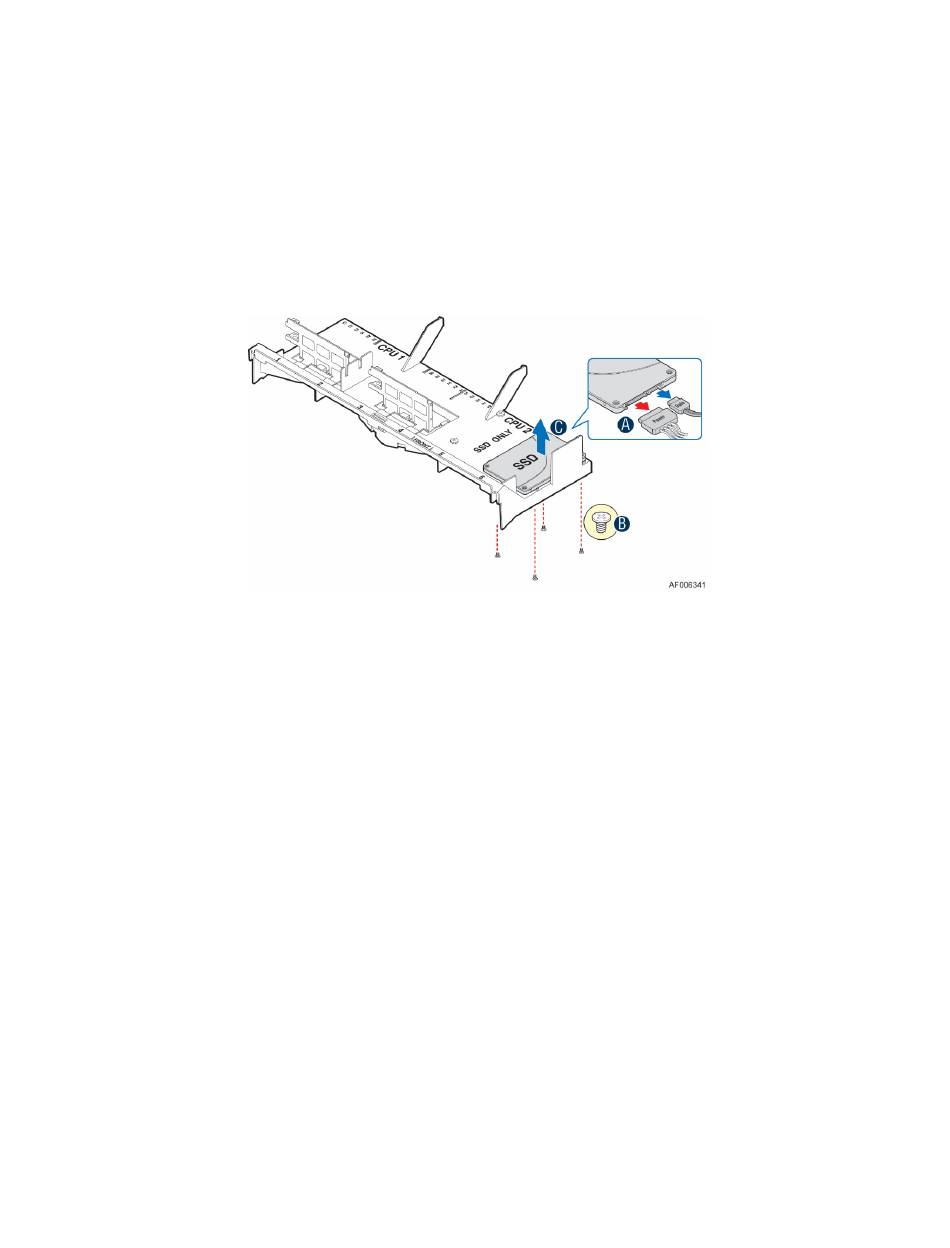

Figure 51. Removing an internal fixed mount SSD
