Intel Server System R2000WT Product Family System Integration and Service Guide
®
Appendix B: System Cable Routing Diagrams
The system fan assembly must be removed when routing cables from front-to-back. All cables should be
routed using the cable channels in between the chassis sidewalls and the air duct side walls, as shown in the
following illustration. When routing cables front-to-back, none should be routed through the center of the
system or in the area between the system fans and the DIMMs slots.

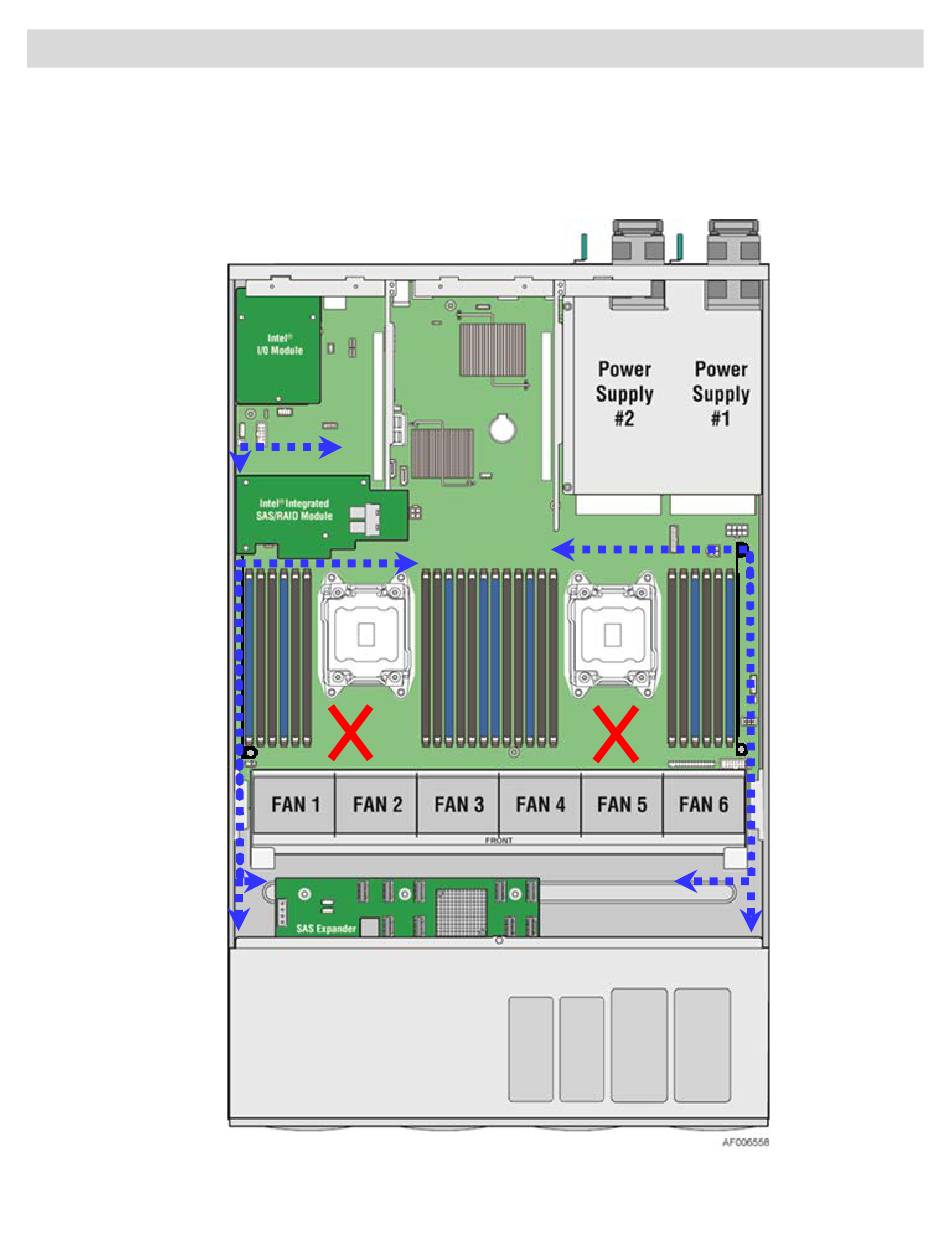

Figure 105. System Cable Routing Channels
103
