Intel ® Server System R2000WT Product Family System Integration and Service Guide
Remove the top cover screws (see letter "A"). This step is not requiered on tool less top cover.
•
• Loosen the two captive thumb screws located on the back edge of the system cover (See letter "B")
Slide cover back and lift upward (see letter "C").
•
Note: Equipment is serviced and maintained only by service persons / technically qualified persons.
The System is not intended to be installed and used in a home, school or public area accessible to the
general population; and safety instructions state that thumbscrews should be tightened with a tool after
both initial installation and subsequent access to the panel.
Chassis Component Identification
The accessory kit and or system packaging will include the following components:
The left and right black plastic air duct side walls
•
Optical drive power cable and mounting clip
•
• Separate bags of screws for mounting the server board and riser card assembly
RAID Maintenance Free Backup Unit (RMFBU) mounting plate and screws
•
DIMM Blanks
•
• 2 black mylar processor socket spacers
Note: spare screws included in kit.
•
The chassis will include the following components. Each should be removed:
• Clear plastic air duct
4

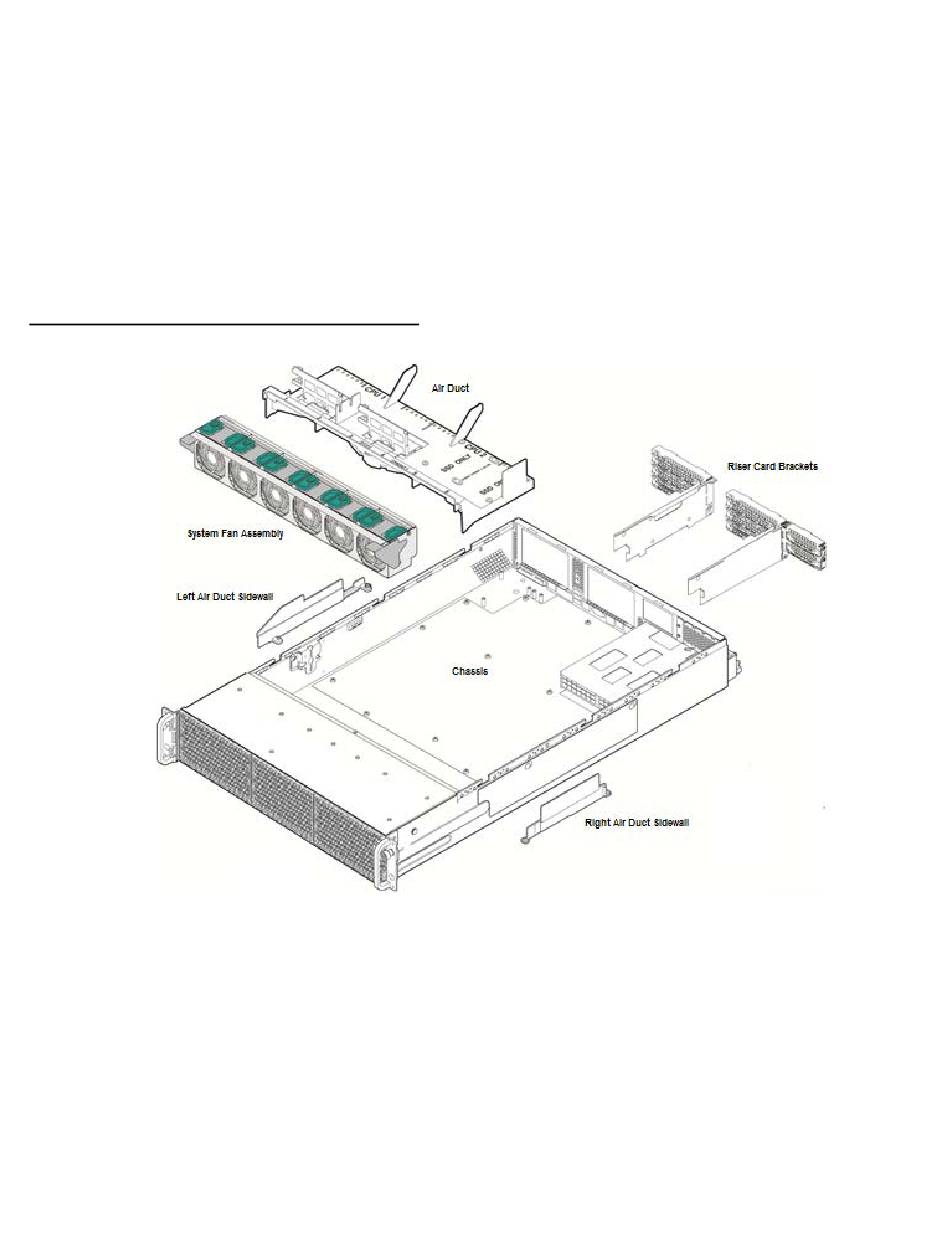

Figure 3. Chassis Components
