3.3 Power Cord Retention Strap Installation
Locate the power cord retention strap from the system accessory kit
•
• Insert the locking tab end of the Retention Strap into the receiver hole located beneath the power cord
receptical on the back of the power supply module (see letter 'A')
While pushing up the locking tab on the bottom of the slider, adjust the slider to the desired position (see
•
letter 'B')
Install the power cord into the power cord receptical on the back side of the power supply (see letter 'C')
•
• Pull the slider strap over the power cord and lock it securely into place (see letter 'D')
To remove the power cord from the Retention Strap
• Push down on the slider tab to release the slider strap
Pull the slider strap back over the power cord
•
• Remove power cord

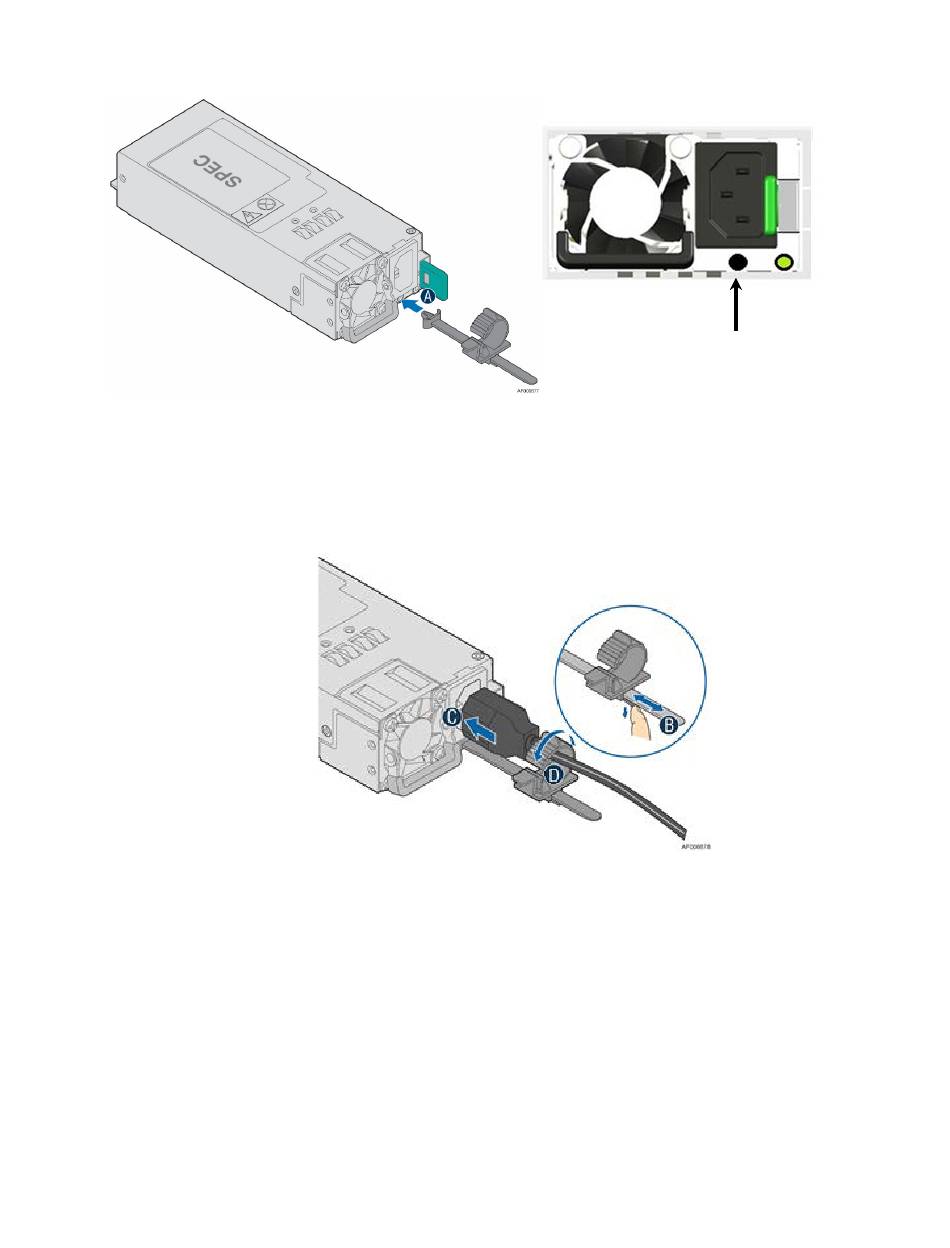

Figure 65. Power Cord Retention Strap Installation
Retention Strap
Receiver Hole
