Server System R2000WT Product Family System Integration and Service Guide
3.8 Trusted Platform Module (TPM) Installation
Locate the TPM module connector on the server board near the Riser Slot 1.
Insert the plastic stand-off into the server board mounting hole (see letter "A").
Place the TPM module over the connector, match the orientation and press the key down onto the
connector (see letter "B").
Secure the TPM module to the stand-off with the fastener screw (see letter "C").
56

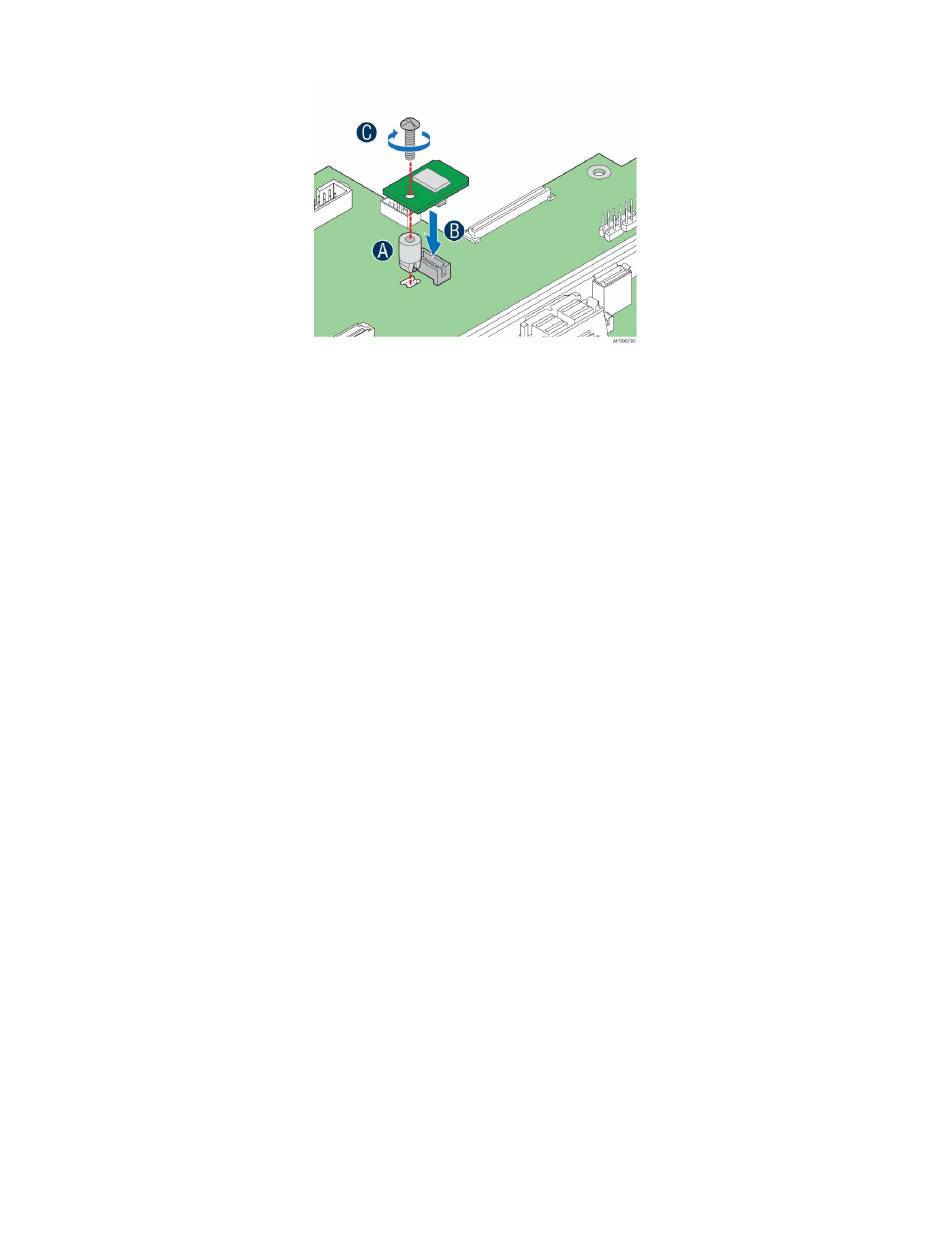

Figure 71. Trusted Platform Module (TPM) Installation
