7.2 Replacing the System Fan
System fans used in the Intel Server System R2000WT product family are hot-swappable.
7.2.1 To remove a failed system fan
Remove the system top cover (see section 2.2.1)
•
• Squeeze the two loop handles on the top side of the fan, and pull straight up until it clears the fan
assembly bracket
7.2.2 To install a new system fan
• Locate the replacement fan (Intel product Code – FR2UFAN60HSW)
Orient the fan so the arrow located on the top side of the fan points to the back of the system
•
Insert the fan into the fan assembly bracket
•
Push down until it is firmly seated into the server board connector
•
Re-install system top cover (see section 2.2.2)
•

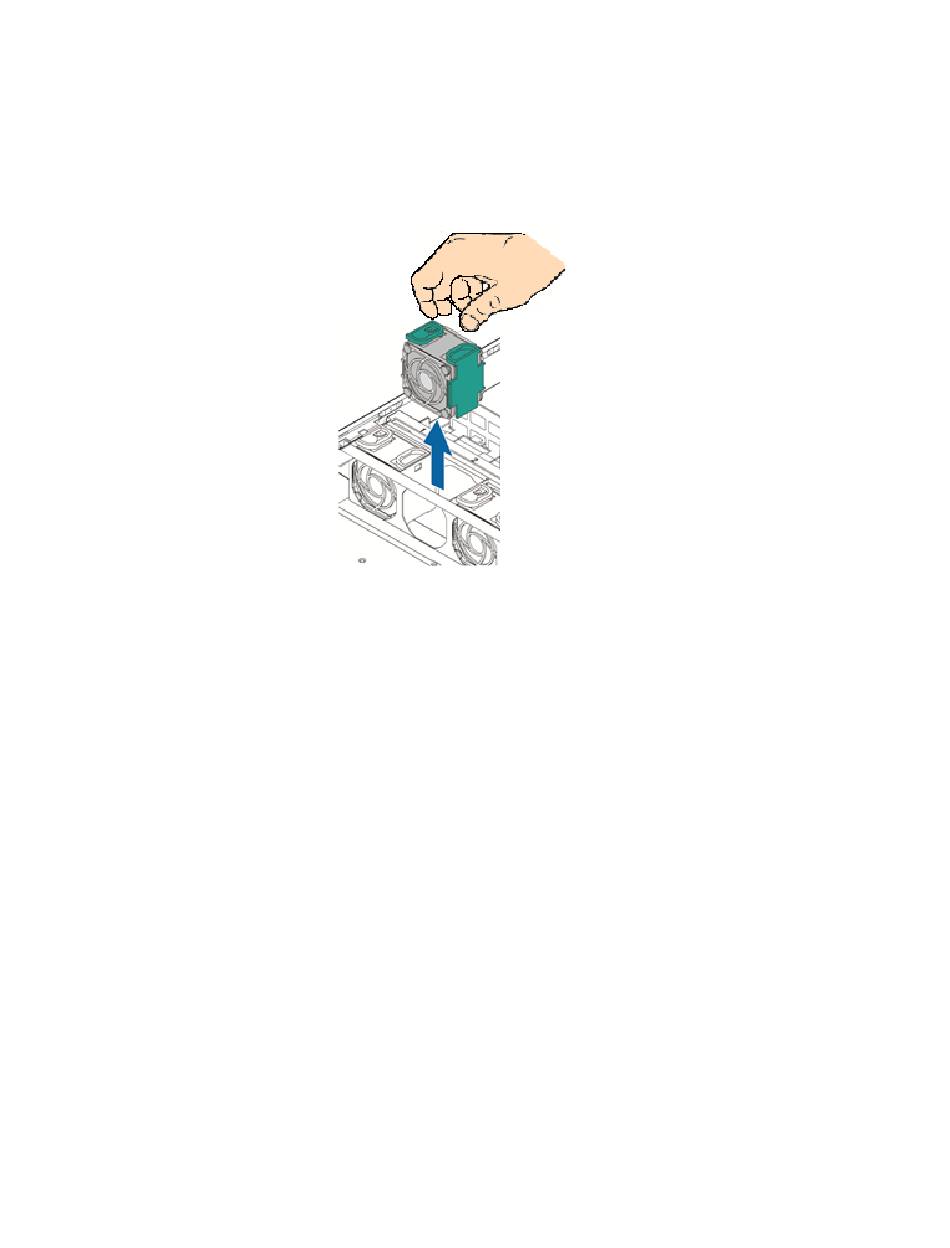

Figure 101. System Fan Installation
