Server System R2000WT Product Family System Integration and Service Guide

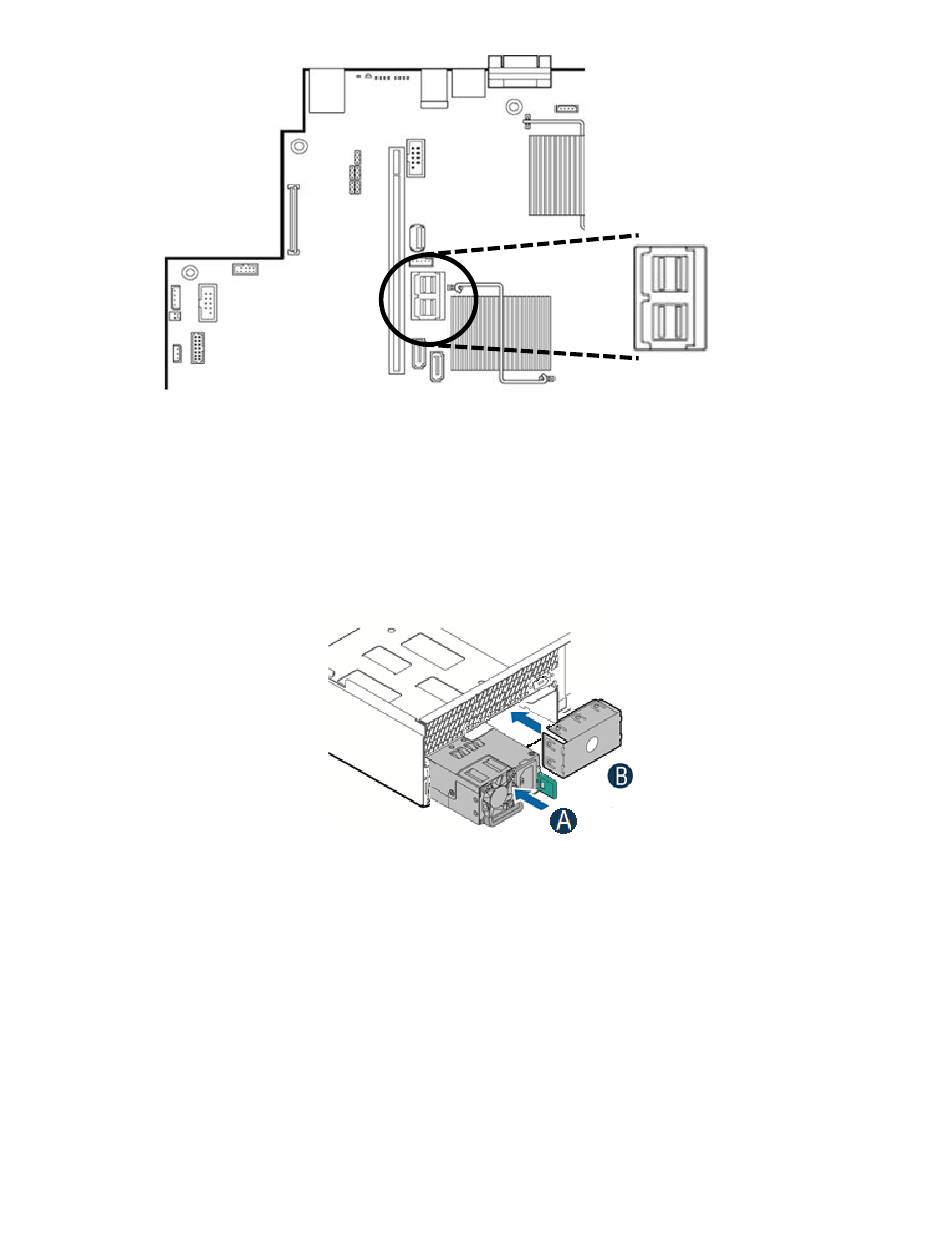

Figure 22. On-Board Mini-SAS HD Connectors for embedded SATA Support
Attach the P2 end of the SATA Data cables to the on-board Mini-SAS HD connectors for embedded SATA
•
support (see illustration).
1.3.4
Power Supply Installation
•
Insert the power supply module into the power supply bay until it clicks and locks into place (see letter
'A').
•
Single power supply configurations require the filler panel to be installed (see letter 'B').
Figure 23. Power Supply and Power Supply Bay Filler Installation
sSATA Ports 0 - 3
SATA Ports 0 - 3
21
