Intel ® Server System R2000WT Product Family System Integration and Service Guide
7.5 Replacing the Server Board
7.5.1 Server Board Removal
• Power off system and remove power cords from each power supply module
• Disconnect all externally attached cables
Remove the system cover (see section 2.2.1)
•
• Remove power supply modules (see section 3.2.2)
(If Installed) remove all cables from devices mounted to the air duct
•
• Remove air duct (see section 2.3.1)
• Remove System Fan Assembly (see section 2.4.1)
Disconnect all cables attached to add-in PCIe add-cards and I/O modules
•
• Remove riser card assemblies (see section 2.8.1)
Remove all options installed onto the server board including (if installed): Intel® I/O Module, Intel® SAS
•
RAID Module, Intel® RAID 5 option key, Intel® RMM 4 Lite key, TPM Module, eUSB SSD
Remove Processors (see section 2.5)
•
Remove all DIMMs (see section 2.6.3)
•
• Disconnect and clear from the server board area all cables attached to connectors on the server board
Remove the two air duct sidewalls located on each side of the server board
•
• Remove nine fastener screws used to secure the server board to the chassis (see letter 'A')
Carefully lift server board from the chassis and place into anti-static bag
•
98

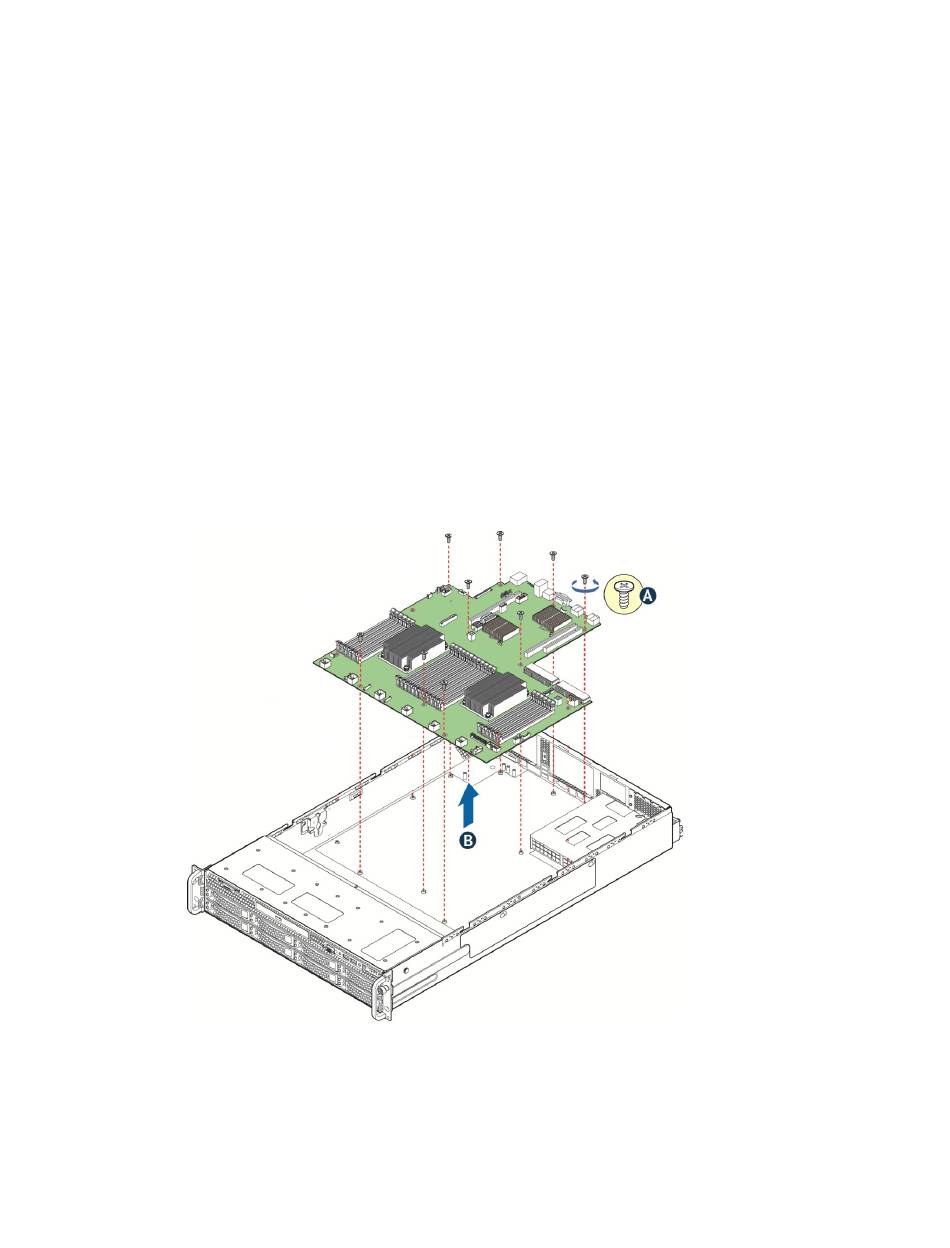

Figure 102. Server Board Removal
