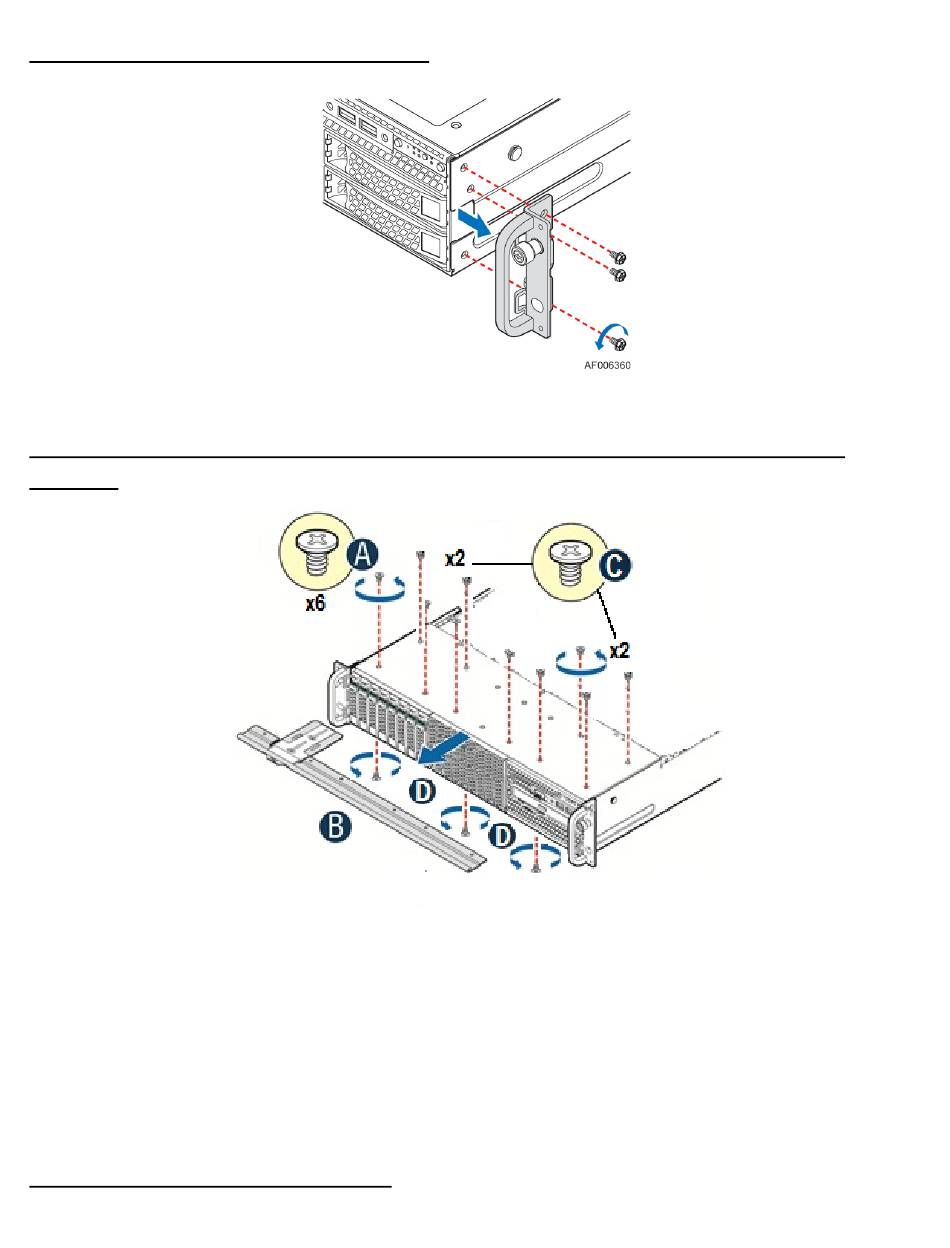

Remove the standard rack handles
Remove the three screws holding each rack handle to the chassis
•
Remove drive bay retention bracket, 1st drive bay module, and I/O bay
module
• Remove the 6 fastener screws from the top front edge of the drive bay (See Letter 'A') and pull out the
metal bracket (see letter 'B')
Remove fastener screws over the 1st (left most) drive bay module and I/O Bay Module (see letter 'C')
•
Carefully place the chassis on its side.
•
• From the bottom of the chassis, remove the fastener screw securing 1st (left most) drive bay module, the
I/O Bay Module, and drive bay filler panel (if installed) (see letter 'D')
• Carefully return the chassis to its original position
Slide out the 1st (left most) drive bay module and drive bay filler panel (if installed) and the I/O Bay
•
Module
