Intel ® Server System R2000WT Product Family System Integration and Service Guide
2.7.3.1 Internal Fixed Mount Solid State Drive Installation
From the system's accessory kit, locate the peripheral device power cable.
•
• Connect the 2x3 cable connector (labeled "SB") to the server board "Peripheral PWR" connector
Locate the SATA cable and install it to either the "SATA 4" or "SATA 5" ports on the server board
•
40
SSD Power
Connectors
Server Board
Connector
(Peripheral PWR)

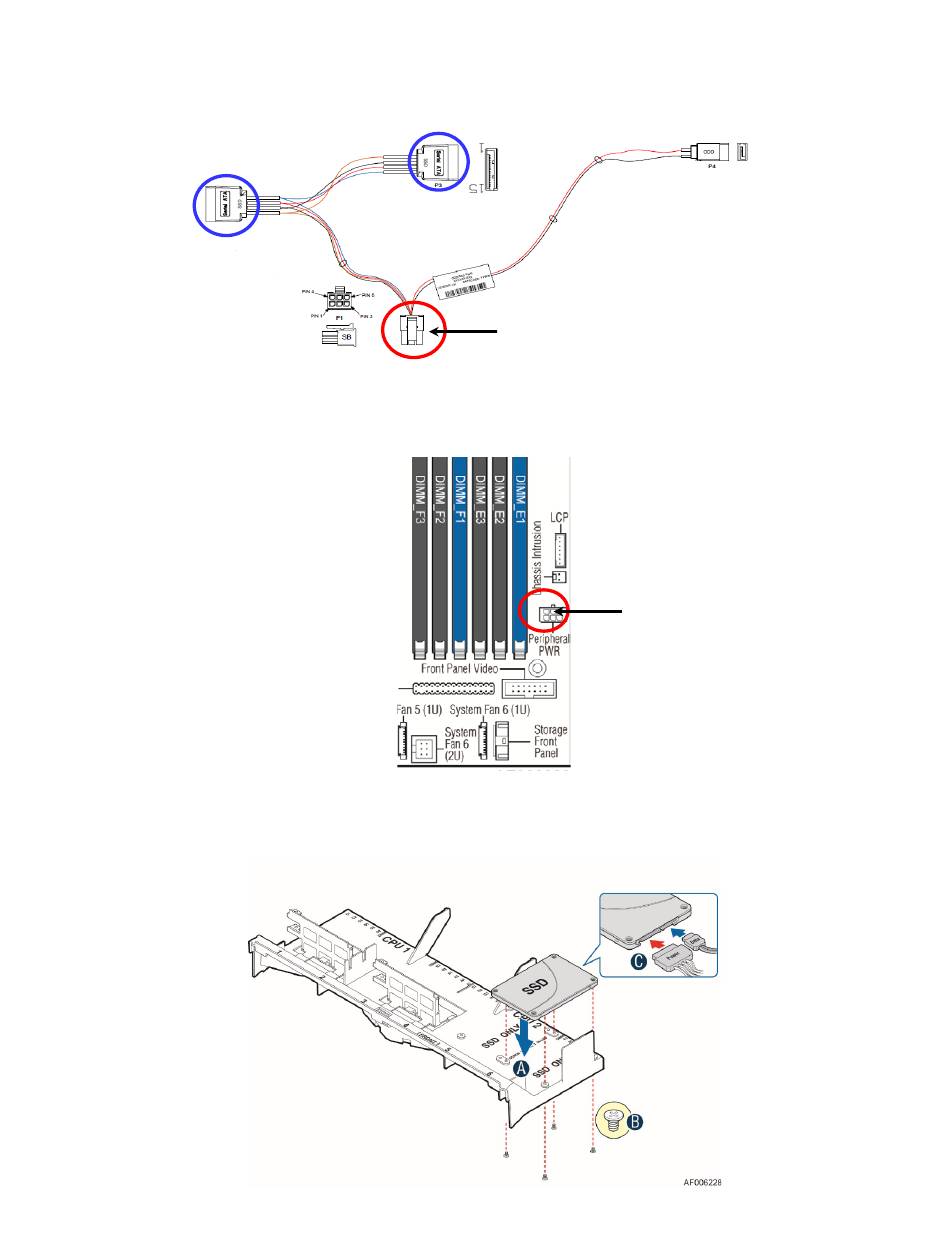

Figure 49. Peripheral Device Power Cable
Peripheral
Power
Connector
