3.11 2 x 2.5" Rear Mount Backplane Module Accessory Kit
Installation
Two 2.5" SATA Hot Swap
Drive Bay Option
Remove the two fastener screws securing the bay cover plate to the chassis (see letter 'A')
•
Unlatch and remove the bay cover plate from the chassis (see letter 'B')
•
• Carefully remove the backplane module from its packaging
Position the drive bay module over the power supply bay and slide back (see letter 'C')
•
Secure the drive bay module to the chassis using four fastener screws; two on the chassis sidewall, and
•
two on the chassis back panel. (see letter 'D')
60

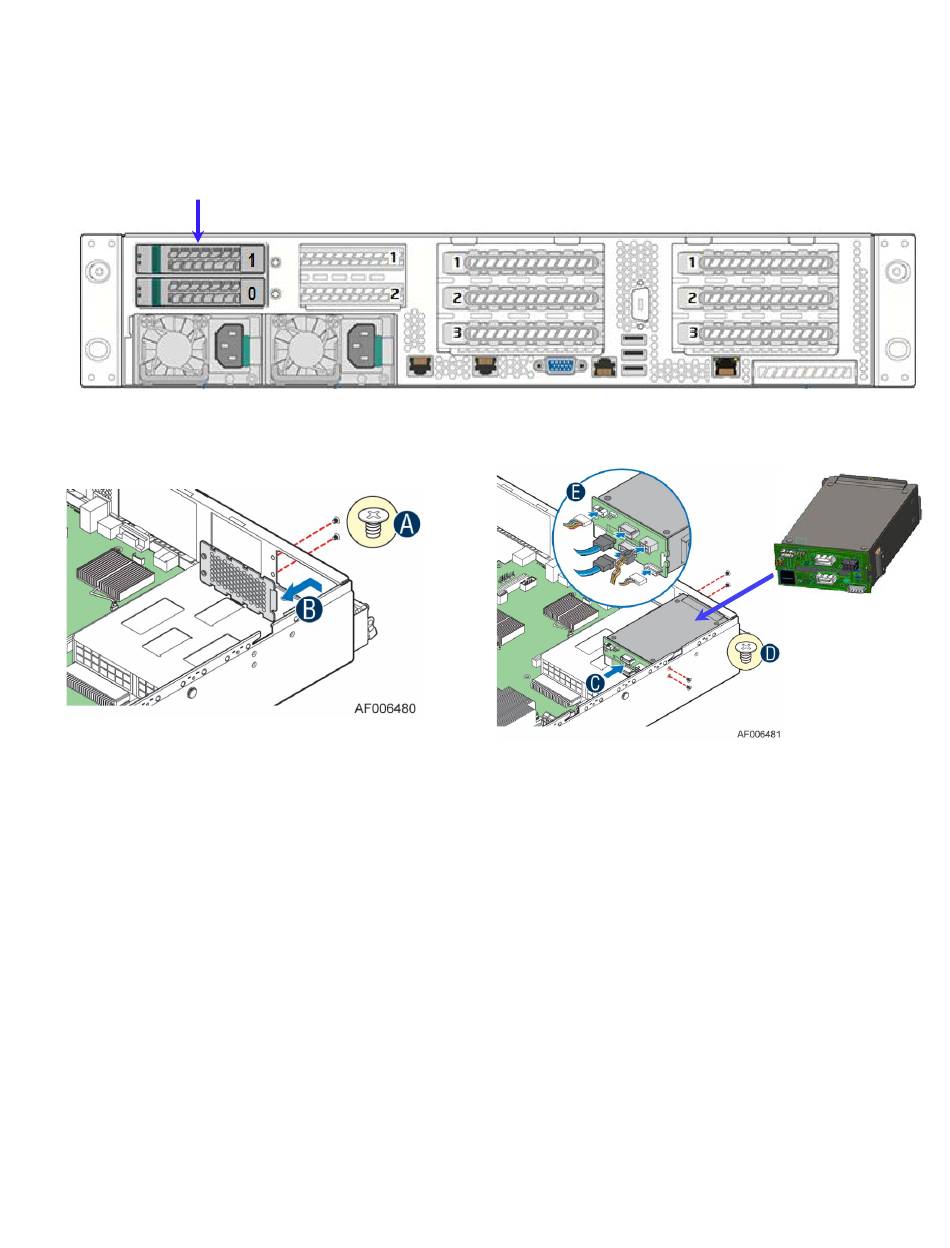

Figure 77. 2 x 2.5" Rear Mount Backplane Module Installation
