Server System R2000WT Product Family System Integration and Service Guide
2.4.1
System Fan Assembly Removal
To remove the system fan assembly:
Lift the latches located on each end of the fan assembly until each latch is fully disengaged from the latch
•
receivers on the chassis side wall. (see letter 'A')
Grasp each end of the fan assembly and pull straight up (see letter 'B')
•
Carefully place the fan assembly face down onto a flat surface. Do NOT rest the fan assembly on the fan
•
connectors located on the bottom side of the fan assembly. Doing so may damage the connectors.
2.4.2
System Fan Assembly Installation

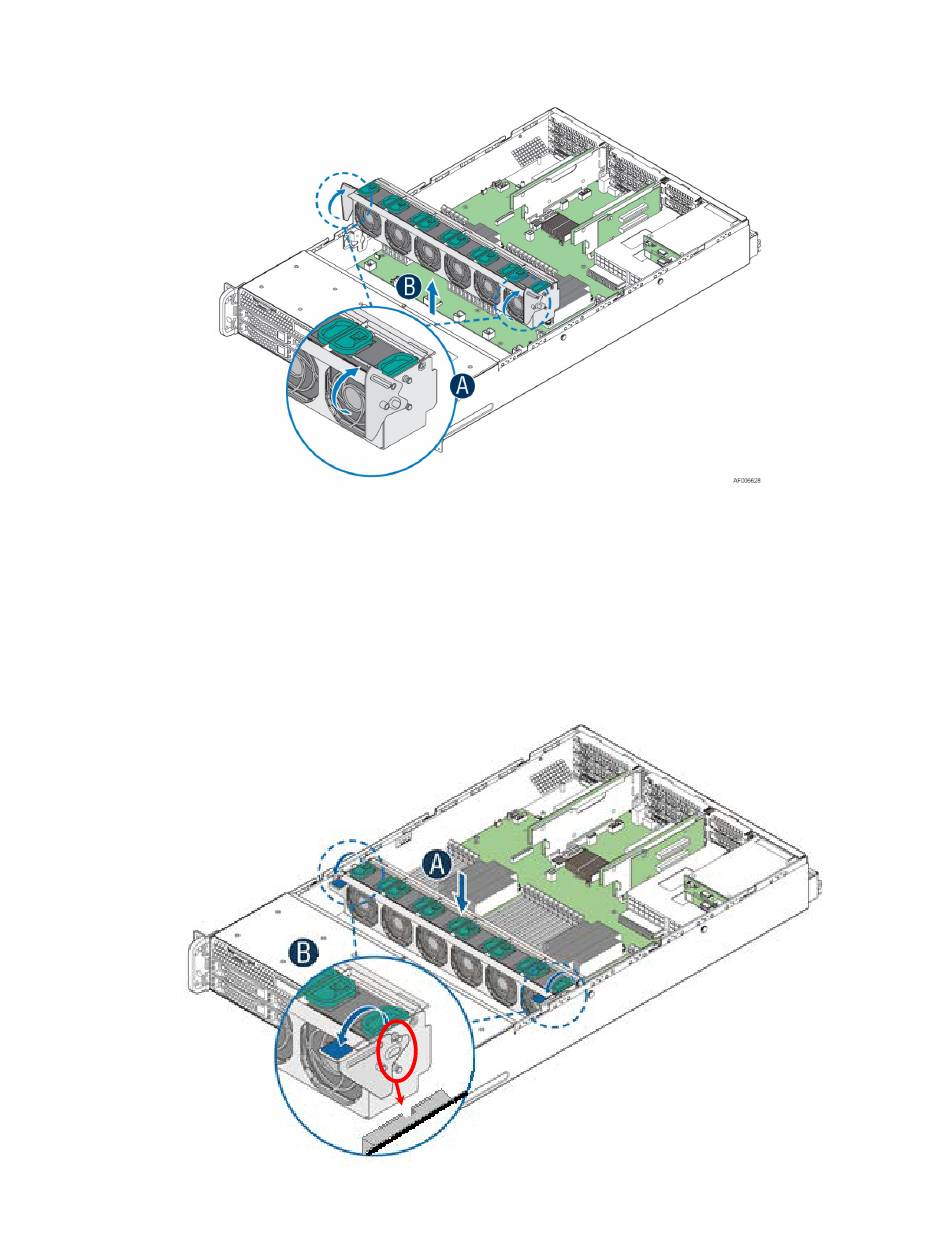

Figure 27. System Fan Assembly Removal
Figure 28. System Fan Assembly Installation
27
