Intel
®
Server System R2000WT Product Family System Integration and Service Guide
3.12 Intel® RAID Expander Card Installation
Depending on the front drive bay configuration, 2.5" or 3.5" drive support, and storage device technology
type, 6Gb/s SAS/SATA or 12 Gb/s SAS, the 2U server system can support different Intel® SAS RAID Expander
card options.
3.12.1 2.5" Front Drive Bay Support
For Intel® Server Systems R2208WTxxxx, R2216WTxxxx, and R2224WTxxxx, an Intel® Raid Expander
Mezzanine Card option is mounted internally behind the front drive bays.
Intel product codes: RES2CV360 (6Gb) and RES3TV360 (12Gb)
Note: In order to attach the 6Gb RES2CV360 RAID Expander Card to a 12Gb compatible backplane, you must
use miniSAS (SFF8087)-to-miniSAS HD (SFF8643) cables from Intel® Accessory Kit AXXCBLEXPHDMS.
Locate the Intel RAID Expander Mezzanine Card
Remove the system cover (see section 2.2.1)
Remove the air duct (see section 2.3.1)
Remove the system fan assembly (see section 2.4.1)
Attach the rubber bumpers to the white circle targets on the bottom side of the RAID Expander card

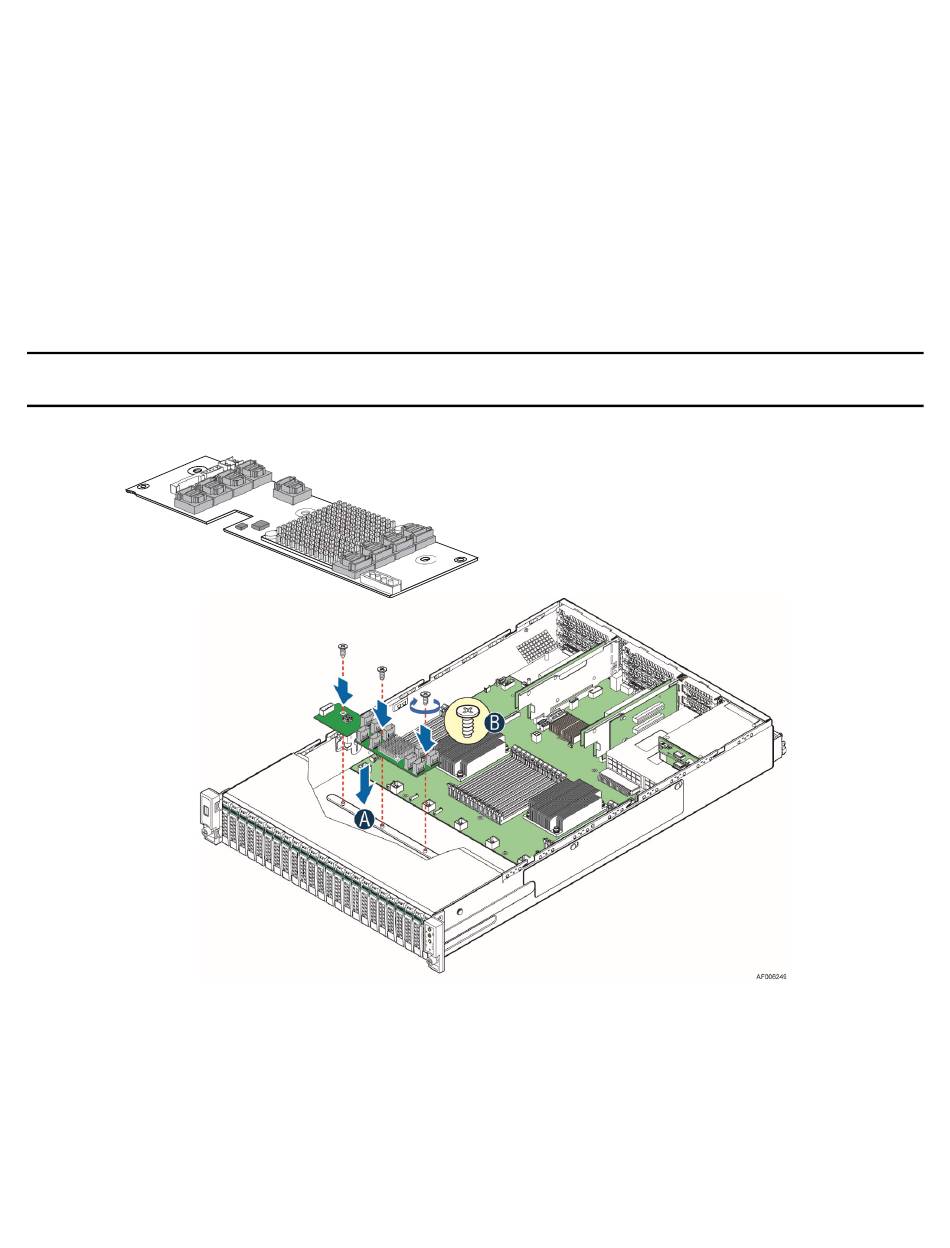

Figure 82. SAS Expander Mezzanine Card Installation
63
