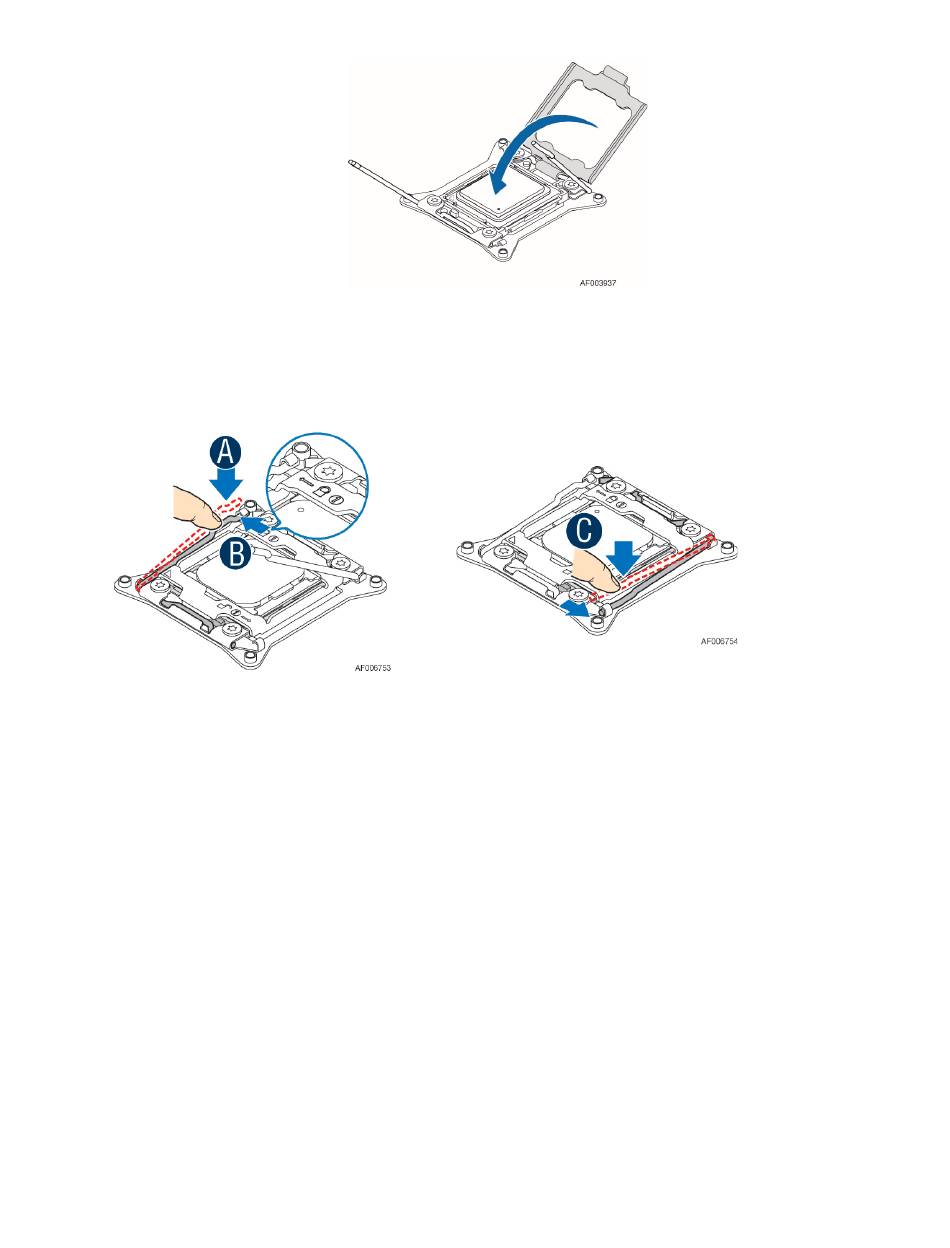

Figure 34. Processor Installation – Close the Load Plate
Carefully lower the load plate down over the processor.
• Lock down the Load Plate.
Figure 35. Processor Installation – Latch the Locking Lever
Push down on the locking lever on the CLOSE 1st side (see letter 'A'). Slide the tip of the lever under the
notch in the load plate (see letter 'B'). Make sure the load plate tab engages under the socket lever when fully
closed. Repeat the steps to latch the locking lever on the other side (see letter 'C'). Latch the levers in the
order as shown.
