Intel ® Server System R2000WT Product Family System Integration and Service Guide
• Secure the device using four screws (see letter 'd4')
2.7.1.4 3.5" Drive Carrier Insertion
• With the lever open, insert the drive assembly into the drive bay (see letter 'E')
Push in the lever to lock it into place (see letter 'F')
•
2.7.2 8 x 2.5", 16 x 2.5", and 24 x 2.5" Front Drive Bay Storage
2.7.2.1 2.5" Drive Carrier Extraction
Remove the drive carrier from the chassis by pressing the green button and pulling open the lever (see
•
letter 'A')
Pull the carrier out of the drive bay (see letter 'B')
•
38

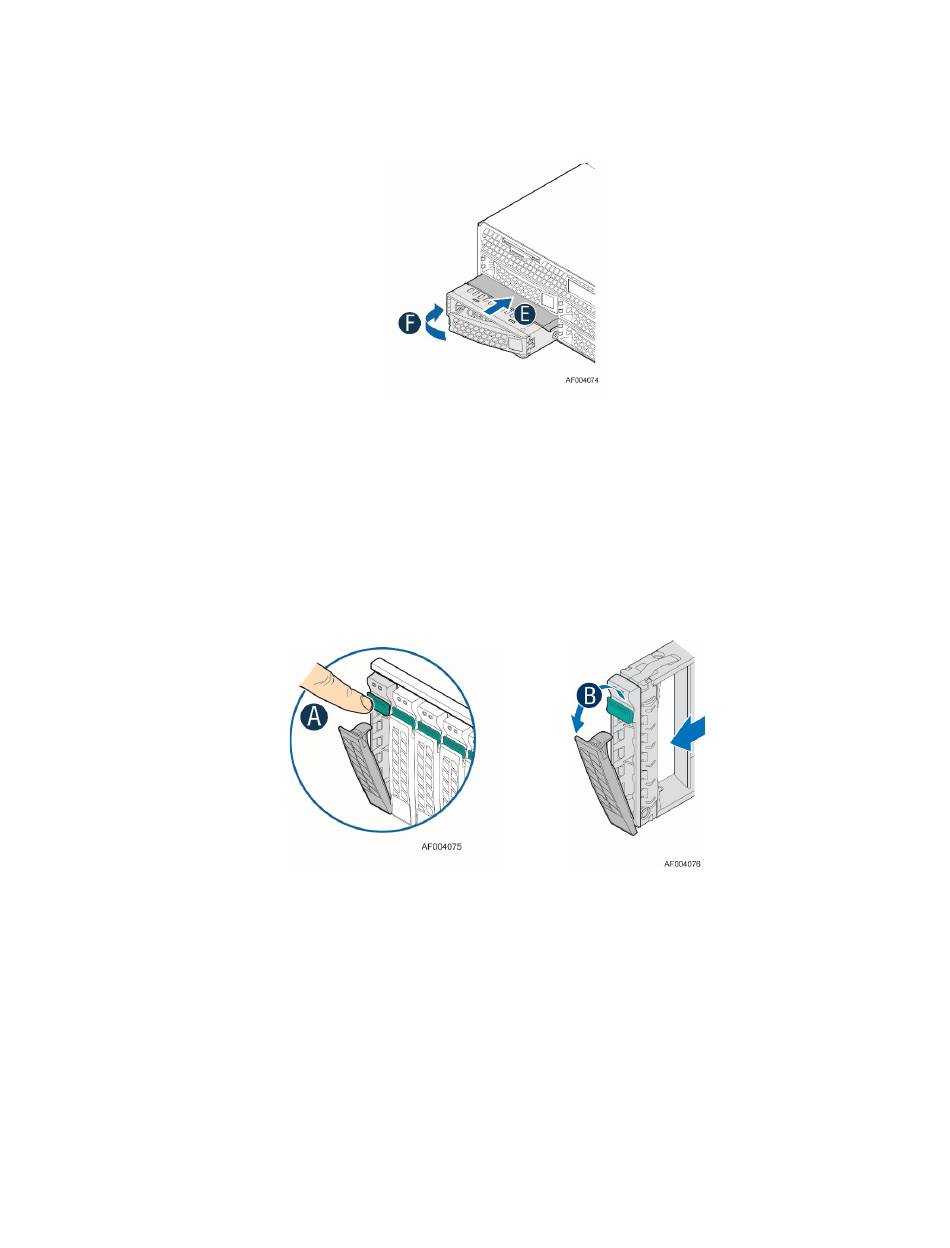

Figure 44. Hard Disk Drive Installation – Inserting 3.5" HDD assembly
Figure 45. Installing Hot-swap storage devices – 2.5" carrier extraction
