3.7 Intel Remote Management Module 4 Lite Key – Installation /
®
Removal
3.7.1 Intel® RMM4 Lite Key Installation
Remove the Intel® RMM4 Lite key from its packaging
•
• Locate the Intel® RMM4 Lite connector on the server board near the back of the server board next to the
I/O Module connector
Place the Intel® RMM4 Lite key over the connector and match the orientation of the key to that of the
•
connector
• Press the key down onto the connector
3.7.2 Intel® RMM4 Lite Key Removal
Power off the system and disconnect the power cable(s)
•
Remove the system cover (see section 2.2.1)
•
• Carefully grasp the key and pull it up until it disengages from the connector

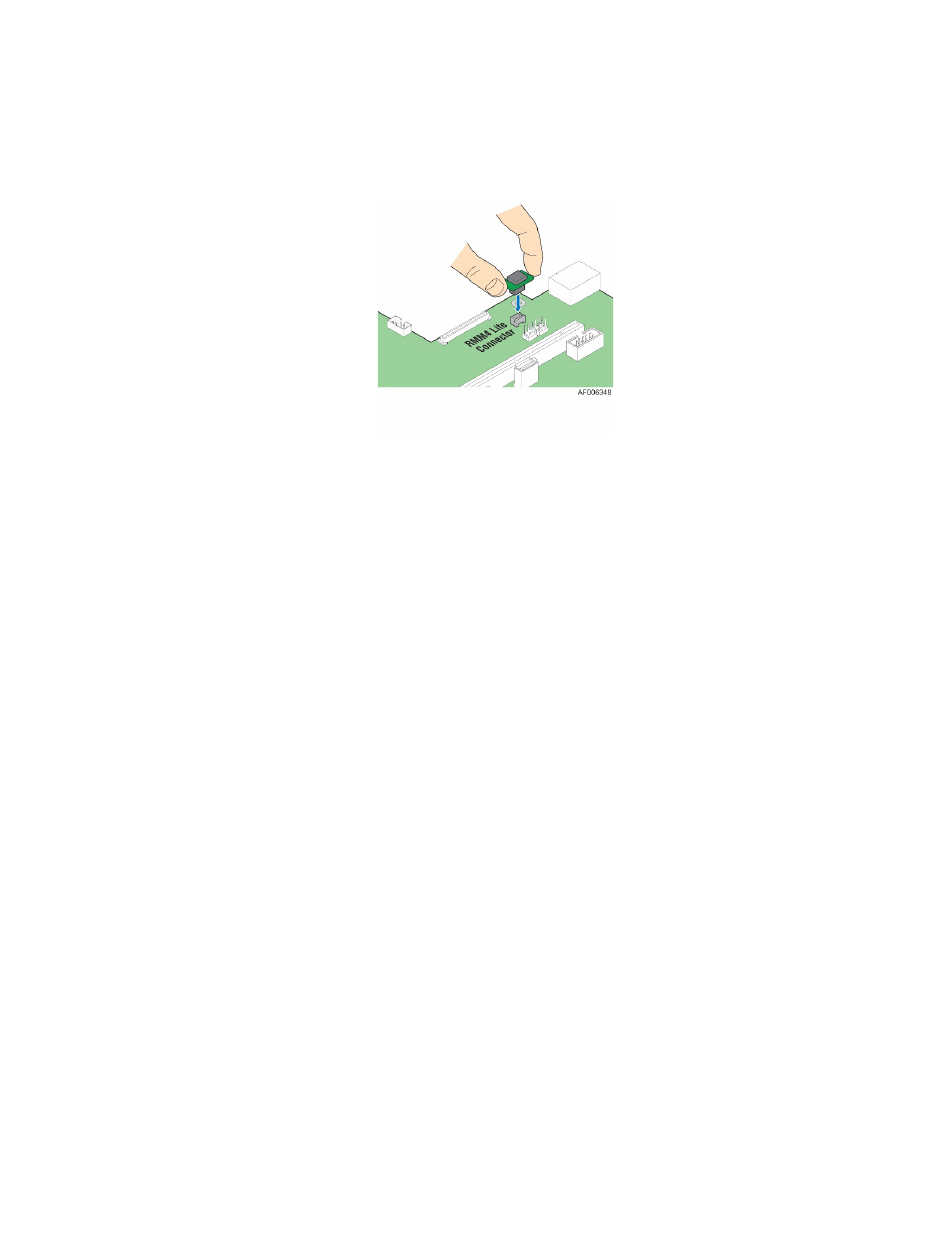

Figure 70. Installing the Intel ® RMM4 Lite
