Intel ® Server System R2000WT Product Family System Integration and Service Guide
3.4 Intel® SAS RAID Module Installation / Removal
3.4.1 Intel® SAS RAID Module Installation
Insert the four barrel standoffs into the matching holes in the server board
•
Align the module mounting holes over the four barrel standoffs
•
• Press down firmly until the module connector is fully engaged with the matching connector on the server
board and the module is firmly seated over each barrel standoff
• Insert a locking pin into each barrel standoff and connect cables
3.4.2 Intel® SAS RAID Module Removal
Disconnect cables and remove the four locking pins from each barrel standoff
•
• Grasp the module near the front two barrel standoffs and pull up firmly until the front side of the module
is clear of the standoffs
• Repeat step 2 to release the other side of the module
Note: Remember to remove the four plastic barrel standoffs when replacing the server board
52

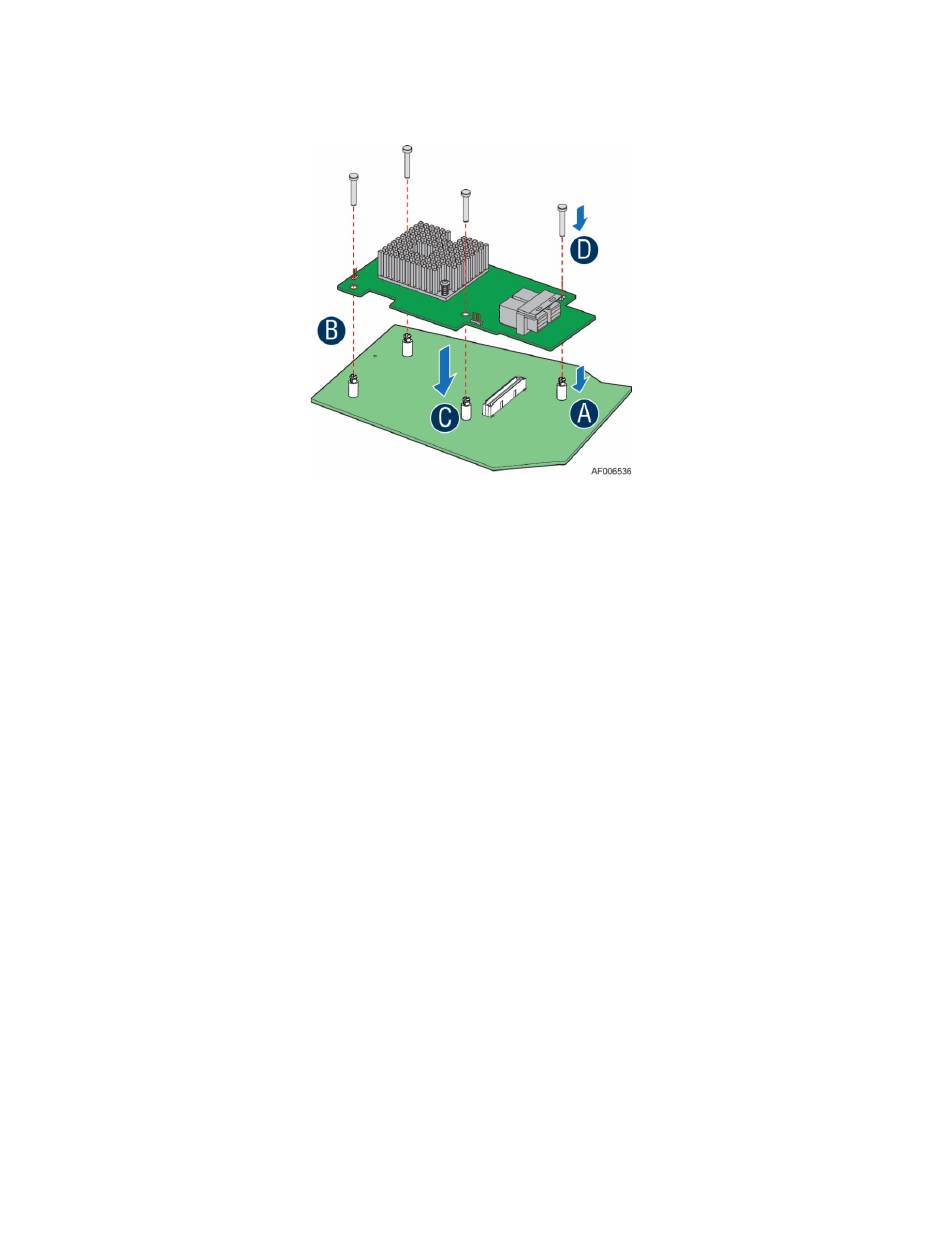

Figure 66. Intel® SAS RAID Module Installation
