Intel ® Server System R2000WT Product Family System Integration and Service Guide
3.1 Slimline Optical Drive – Installation and Removal
This section provides installation and removal instructions for an optionally installed slimline SATA optical
drive for systems that support the option.
3.1.1 Slimline Optical Drive Installation
NOTE: The slimline optical drive is NOT hot-swappable. Before removing or replacing the drive, you must first
take the server out of service, turn off all peripheral devices connected to the system, turn off the system by
pressing the power button, and unplug the power cord from the system or wall outlet.
From the system's accessory kit, locate the Blue plastic mounting clip and fasten it to the back of the
•
optical using two screws as shown (see letter "A")
From the system's accessory kit, locate the peripheral device power cable
•
Connect the 2x3 cable connector (labeled "SB") to the server board "Peripheral PWR" connector
•
Locate the SATA cable and install it to either the "SATA 4" or "SATA 5" ports on the server board
•

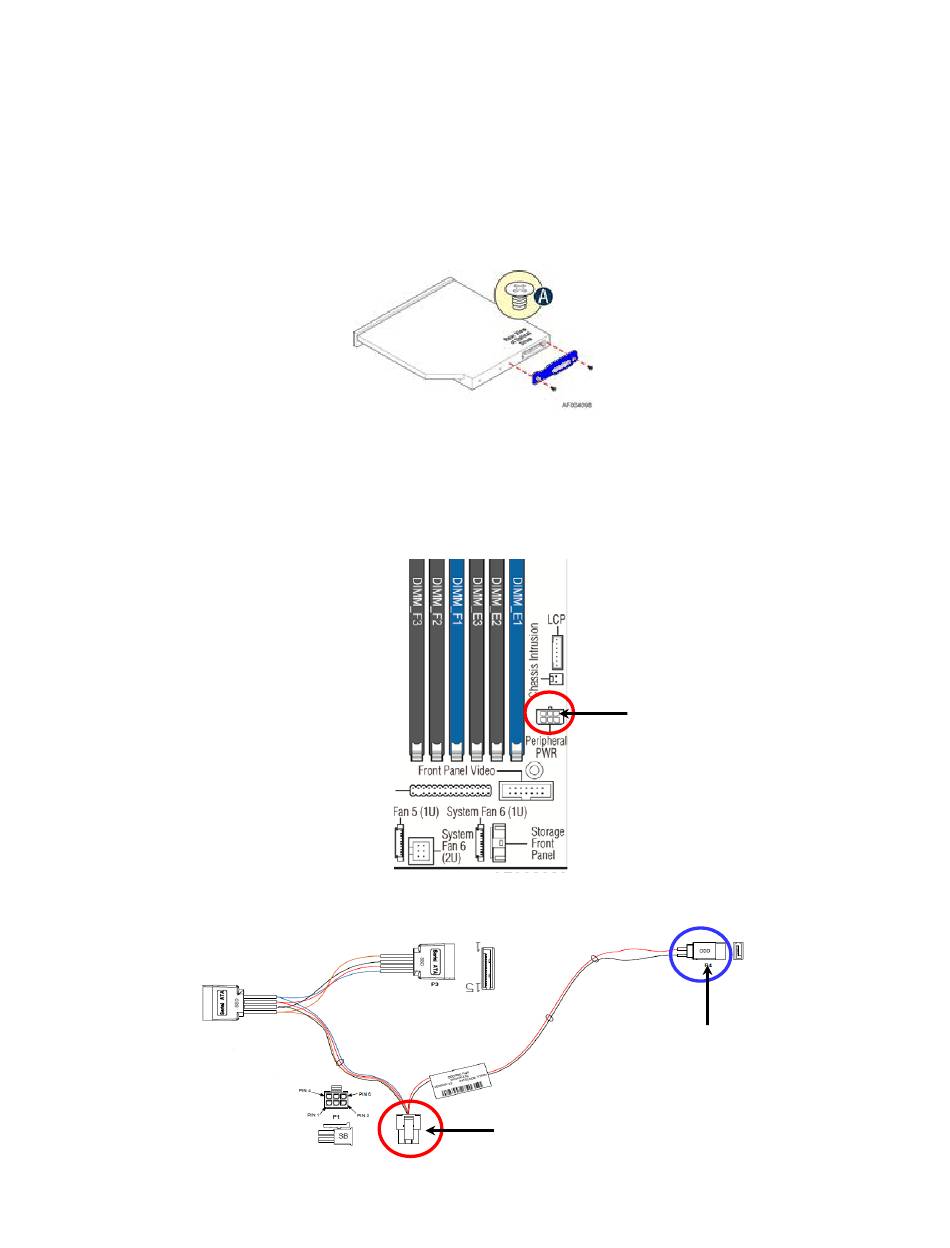

Figure 58. Installing the Plastic Mounting Clip to an Optical Drive
Figure 59. Peripheral Power Connector
Figure 60. 7-pin Single SATA Port Connectors
Peripheral
Power
Connector
Server Board
Connector
(Peripheral PWR)
Optical Drive
Power Connector
47
