Intel ® Server System R2000WT Product Family System Integration and Service Guide
1.3 System Assembly
Server Board Installation
Note: Follow ESD precautions outlined at the beginning of this manual
Clear the area for server board placement by carefully moving aside any cables that may be taped to the
•
chassis base
Remove the server board from its anti-static bag
•
• Holding the server board by its edges, carefully lower the server board into the chassis so that the rear
I/O connectors of the server board align with and are fully seated into the matching holes on the chassis
back panel and each server board mounting hole is aligned with a threaded chassis standoff.
The server board is accurately placed when the two end screw holes nearest the front edge of the server
•
board (See letter "A") sit securely onto the shouldered chassis standoffs
Using 12 in-lbs torque, fasten down the server board with 9 screws in the positions shown in Figure 5
•

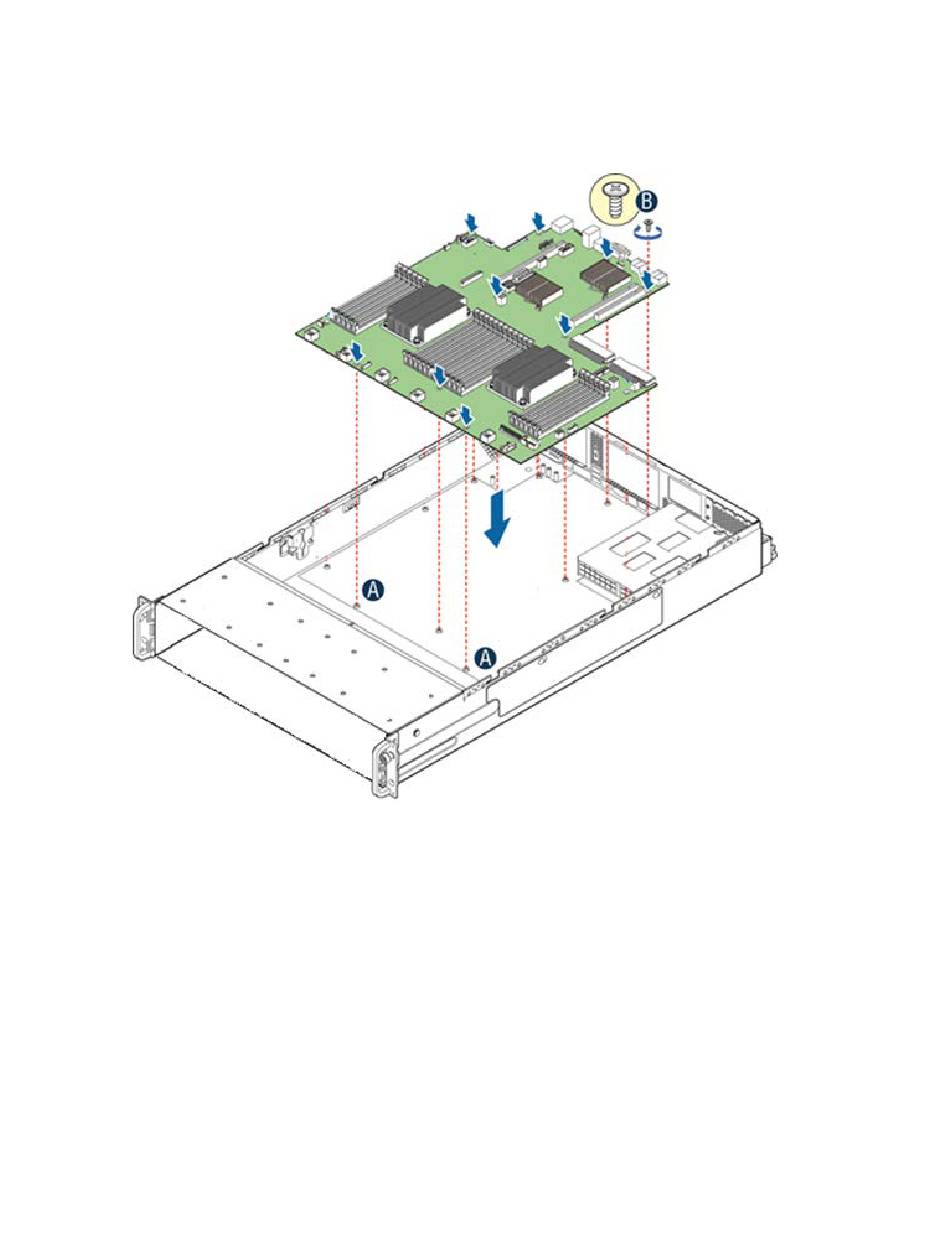

Figure 5. Server Board Installation
7
