Intel ® Server System R2000WT Product Family System Integration and Service Guide
Insert 8 x 2.5" drive bay module
Carefully unpackage the 8 x 2.5" drive bay module from the accessory kit
•
• Slide the 8 x 2.5" drive bay module into the server chassis (see letter 'D').
Using two fastener screws on the top back edge of the drive bay, secure the drive bay to the chassis (See
•
Letter 'E') (8 in/lbs torque for each screw)
Repeat steps 1-3 for the second drive bay module (if applicable)
•
Carefully place the chassis on its side and secure each installed drive bay module with one additional
•
screw on the bottom of the chassis (see letter 'F'). (8 in/lbs torque for each screw)
Carefully return the chassis to its original position
•
Install Drive Bay Retention Bracket
Locate the drive bay retention bracket and screws
•
Carefully slide the drive bay retention bracket into the gap between the top of the drive bay module(s)
•
and the bottom of the drive bay sheet metal. (see letter 'A').
Secure the retention bracket with six fastener screws (see letter 'B'). (8 in/lbs torque for each screw)
•
Continue to section 1.3.5
•
10

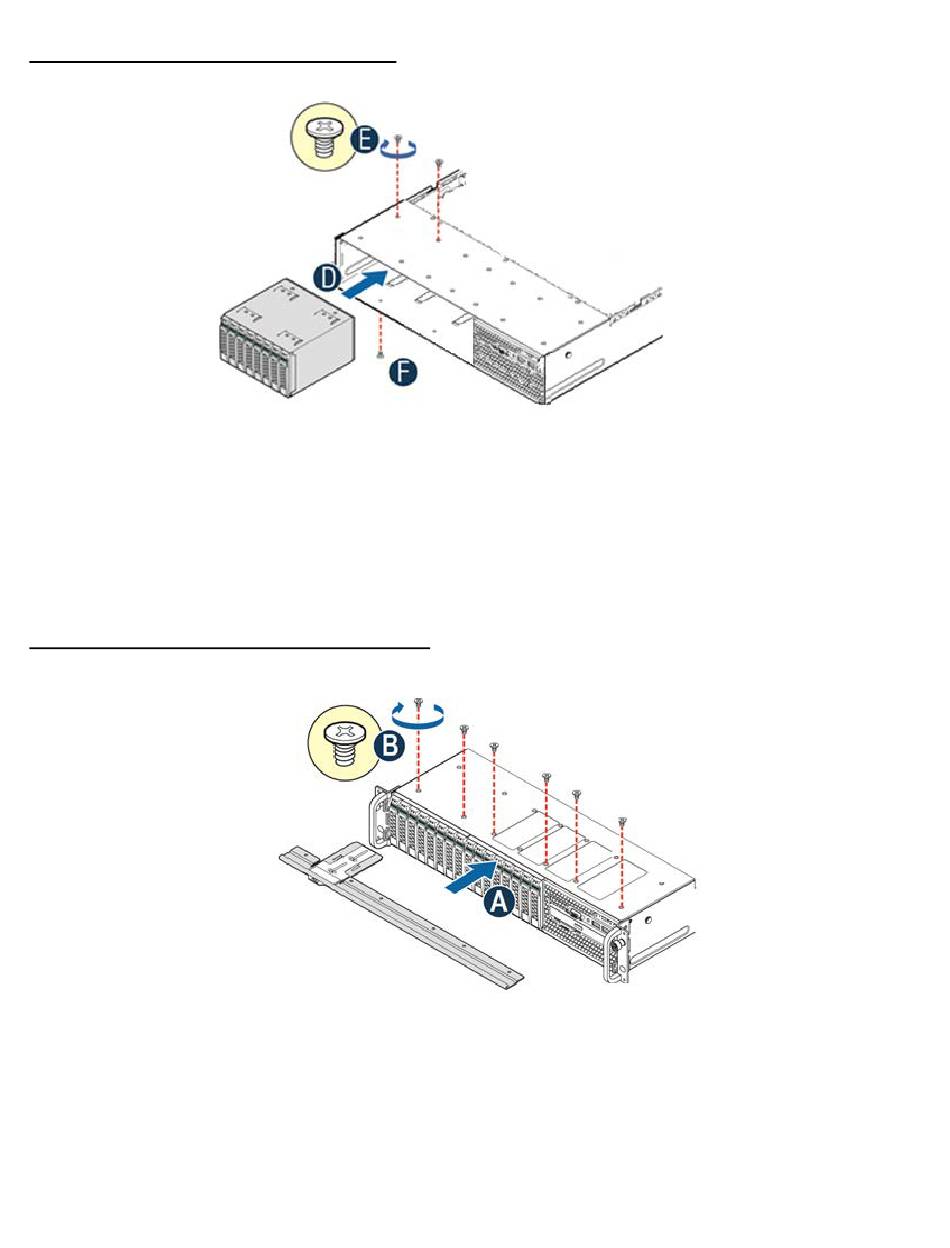

Figure 8. 8 x 2.5" Drive Bay Module Installation
Figure 9. R2000WTxxx Drive Bay Retention Bracket Installation
