2.1 Internal Cable Routing
The system fan assembly must be removed when routing cables from front-to-back. All cables should be

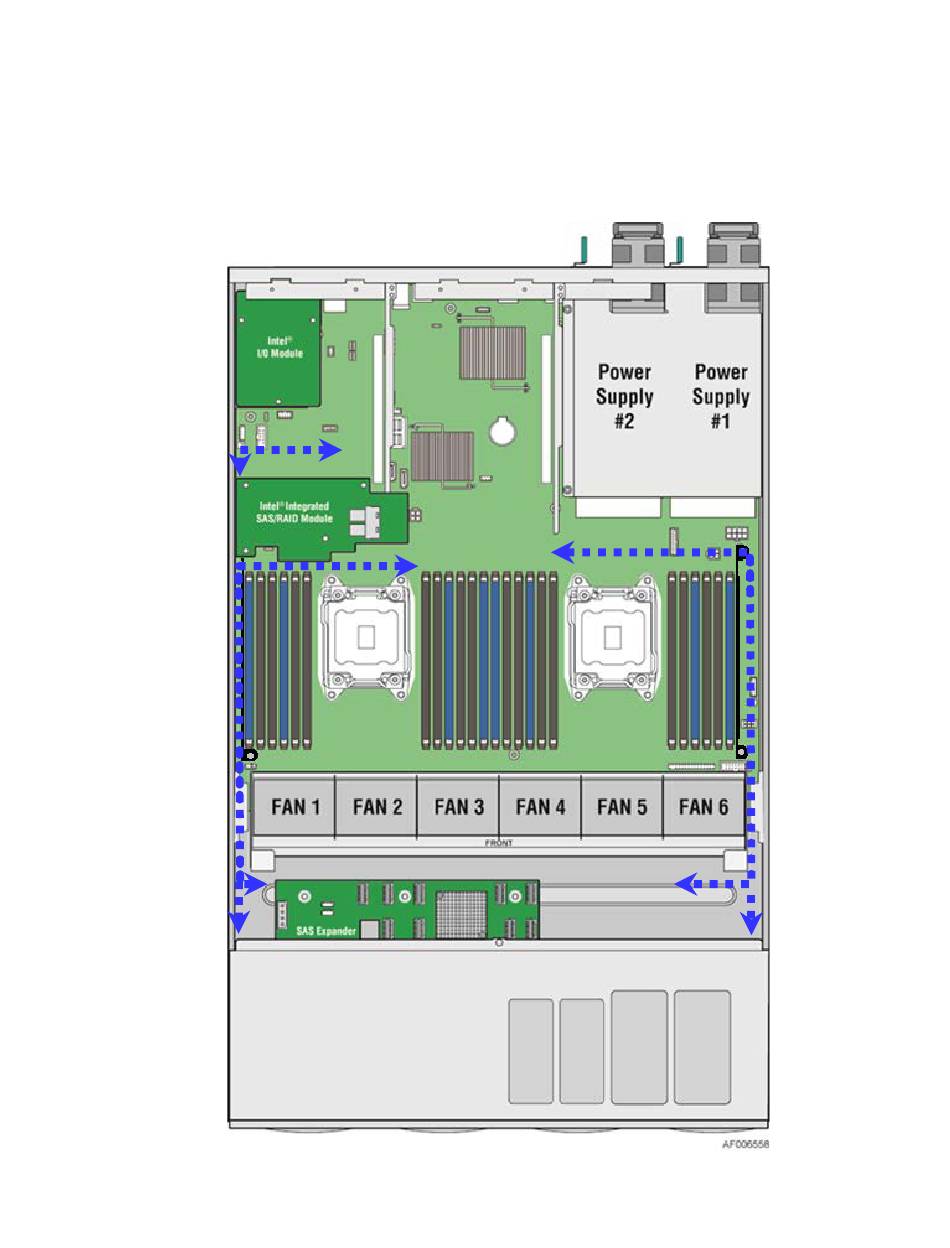

routed using the cable channels in between the chassis sidewalls and the air duct side walls, as shown in the
following illustration. When routing cables front-to-back, none should be routed through the center of the
system or in the area between the system fans and the DIMMs slots. See Appendix B. System Cable Routing
Diagrams for additional cable routing details.
