Intel ® Server System R2000WT Product Family System Integration and Service Guide
3.9.2 Front Bezel Installation
Note: Before installing the bezel, you must install the rack handles (see section 2.9.1)
• Lock the right side of the bezel to the rack handle (see letter 'A').
Rotate the left side of the bezel towards the chassis
•
• Press the left side of the bezel into the rack handle until it clicks into place (see letter 'B').
Lock the bezel
•
3.9.3 Front Bezel Removal
If your system includes a front bezel, follow these steps to remove it from the chassis:
Unlock the bezel
•
Pull out the left side of the bezel from the rack handle (see letter 'A').
•
• Rotate the left side of the bezel out away from the chassis to release the latches on the right side from
the rack handle (see letter 'B').
58

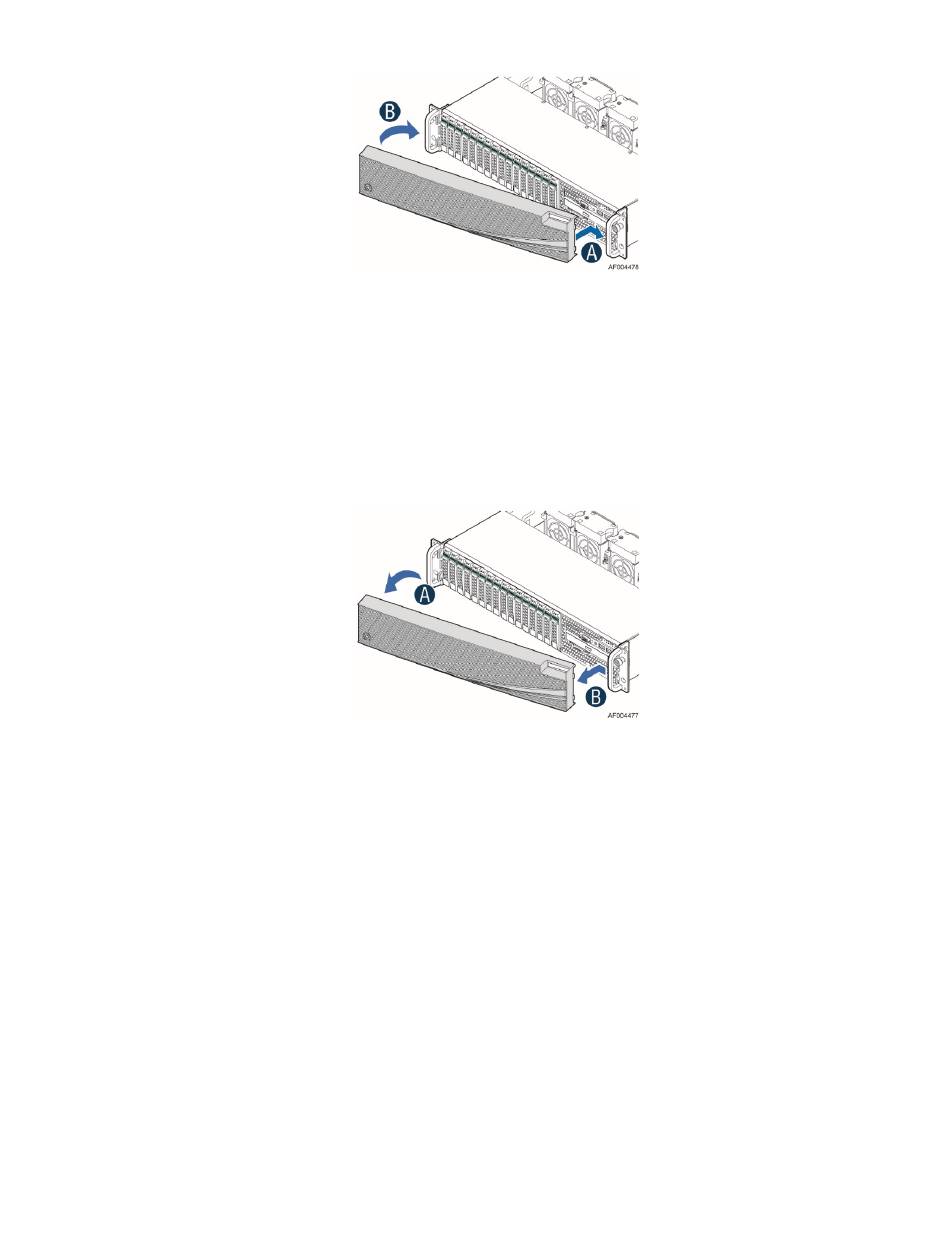

Figure 74. Installing the Front Bezel
Figure 75. Removing the Front Bezel
