Wiring HySecurity Sensors: Smart Touch

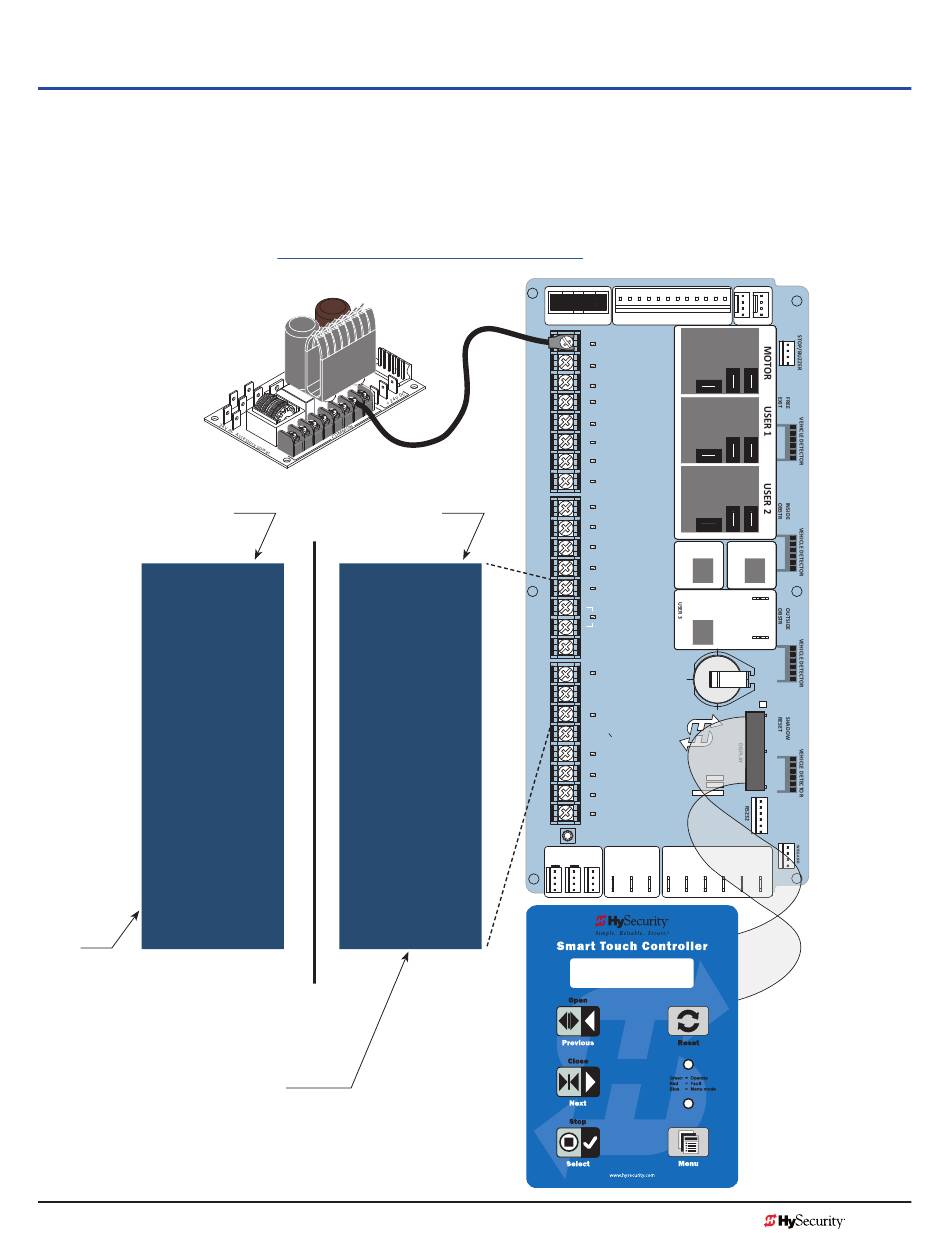

Wiring diagrams are provided on the following pages. The diagrams illustrate how to connect sensors and
program the gate operator. HySecurity Smart Touch gate operators can monitor entrapment protection
sensors per UL 325 - 2015 Standard of Safety using software version h4.50 (or higher).
The site designer or installer must determine which external entrapment protection sensors will be installed
with the gate operator to create a UL 325 compliant installation site. For additional information, review For
additional information, review
Power Supply
Board
Label: pre-
2016
EDGE SENSOR EDGE SENSOR
PHOTO EYE POWER PHOTO EYE POWER
24 VOLTS COMMON 24 VOLTS COMMO
PHOTO EYE POWER PHOTO EYE POWER
DO NOT USE
PHOTO EYE PHOTO EYE
OPEN DIRECTION OPEN DIRECTION
DO NOT USE
PHOTO EYE PHOTO EYE
CLOSE DIRECTION CLOSE DIRECTION
Label:
Pre-2016
Build Year (BY 1)
MX3979-02
Used on replacement
boards for
gate operators
manufactured prior to
2016.
Post 2016 Label
Build Year (BY 2)
MX3978-01
Wiring HySecurity Sensors: Smart Touch
MX3657-01 Rev. D ©2020
Gate Safety on the HySecurity website.
Label: 2016
SENSOR 1 SENSOR 1
SENSOR SENSOR
COM COM
DO NOT USE
SENSOR 2 SENSOR 2
DO NOT USE
SENSOR 3 SENSOR 3
DRIVE POWER
1
STOP BUTTON
2
OPEN BUTTON
3
CLOSE BUTTON
REMOTE OPEN AND
4
RADIO CONTROL
5
OPEN/CLOSE
6
OPEN PARTIAL
INTERLOCK OPEN
7
TIME CLOCK OPEN
8
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
9
DISABLE CLOSE TIMER
10 INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
11
VEHICLE DETECTOR
12 SHADOW/RESET
VEHICLE DETECTOR
EDGE SENSOR
14
PHOTO EYE POWER
24 VOLTS COMMON
15
PHOTO EYE POWER
16
DO NOT USE
PHOTO EYE
17
OPEN DIRECTION
18
DO NOT USE
PHOTO EYE
19
CLOSE DIRECTION
20
DO NOT USE
CHARGER
21
AC LOSS
HySecurity
22
LOCK INTERLOCK
MX000585
VERSION
23
S/N
EMERG CLOSE
24
FIRE DEPT OPEN
Smart Touch Controller
LED
LIMIT DUAL GATE RADIO OPTIONS
RPM
COM A B COM OPEN +24V
S2 6 (EDGE BOTH)
SENSOR #2 TYPE
hysecurity.com | 800-321-9947
RS485
COM
NO
STATUS
S 1
+24V COM
