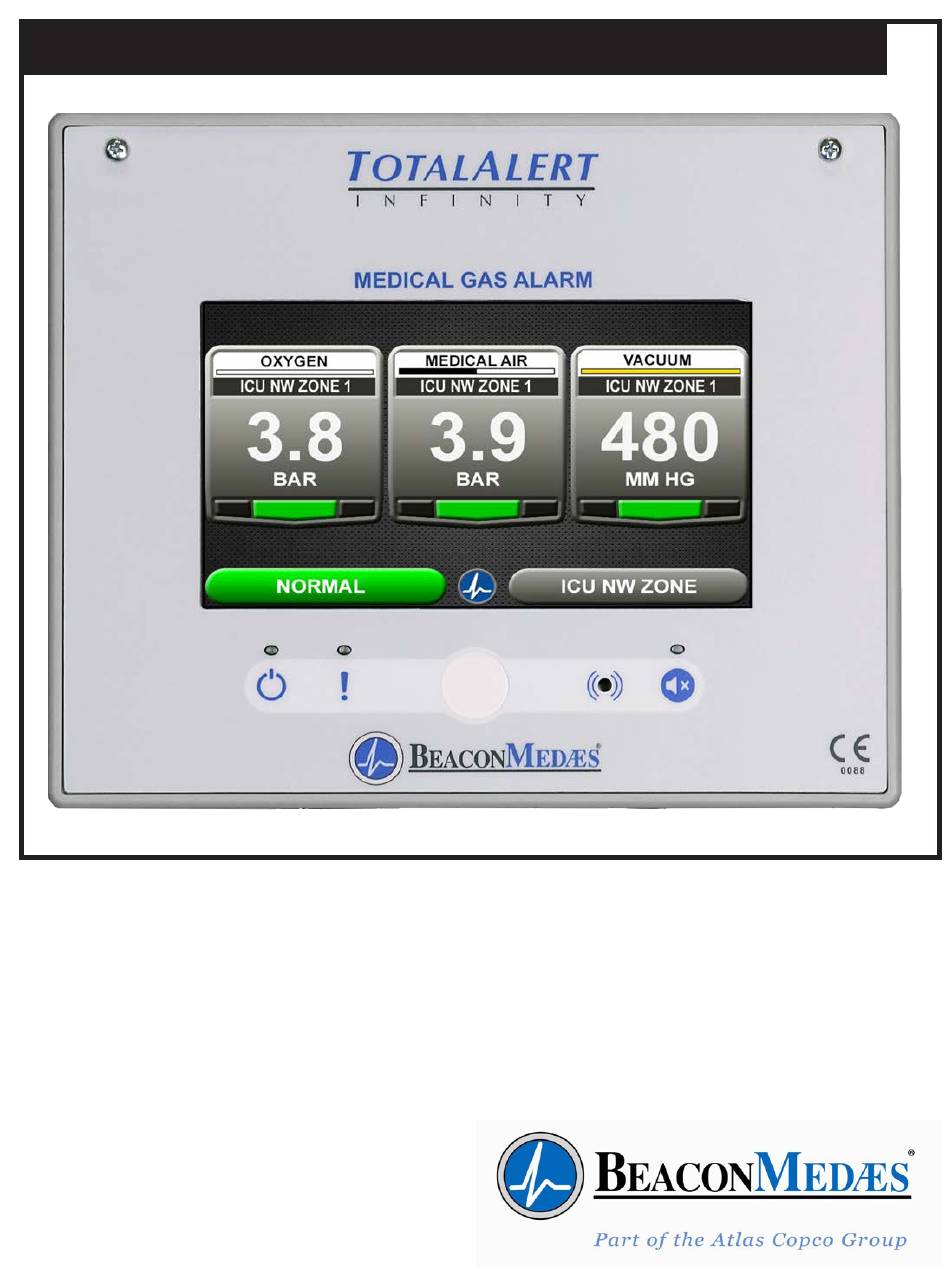

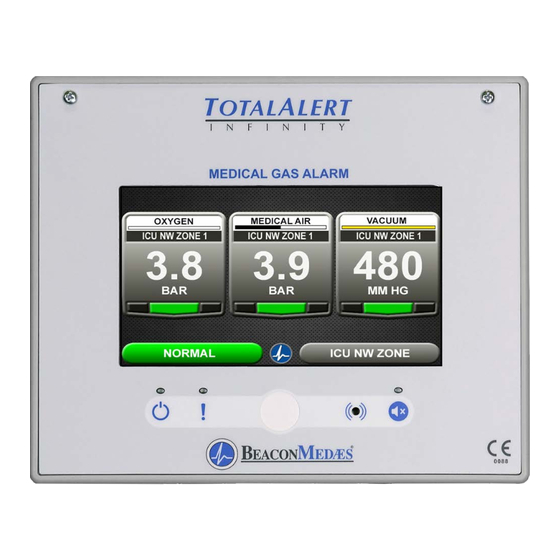

Installation, Operation and Maintenance Instructions
TotalAlert Infinity
HTM Medical Gas Notification System
™
Part number 4107 9016 60
Revision 01
December 18, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TotalAlert Infinity and is the answer not in the manual?

Questions and answers

Tom Spremo
March 24, 2025

My area alarm has a red light illuminated above the Exclamation point and above the silence button but all systems show normal pressure levels?

0

Related Manuals for BeaconMedaes TotalAlert Infinity

Summary of Contents for BeaconMedaes TotalAlert Infinity

  • Page 1 Installation, Operation and Maintenance Instructions TotalAlert Infinity HTM Medical Gas Notification System ™ Part number 4107 9016 60 Revision 01 December 18, 2017...
  • Page 5 Installation, Operation and Maintenance Manual TotalAlert Infinity™ HTM Medical Gas Notification System This unit is purchased from: Date purchased: Model number: Part number: Option(s) included: Any information, service or spare parts requests should be directed to: BeaconMedæs Telford Crescent, Staveley,...

  • Page 7: Table Of Contents

    1.5.2 Zone Alarms 1.5.3 Gas Combination Alarms 1.6 Electromagnetic Compatibility 1.6.1 EN 60601-1-2 1.7 TotalAlert Infinity™ Medical Gas Notification System Parent Model Number Chart 2.0 Installation Procedures 2.1 Surface Mount Box 2.2 Gas Sensor Installation 2.2.1 Remotely Installed Sensors in Pipeline 2.3 Wiring...
  • Page 8 TotalAlert Infinity™ HTM Medical Gas Notification System Table of Contents (continued) 2.3.9 Alarm Panel “Mirroring” 2.3.10 General Fault Relay 2.3.11 Ethernet 2.3.12 Field Wiring Cable Shield Grounding 2.3.13 BACnet 2.4 Finish Assembly 2.4.1 Front Panel Mounting 3.0 Wiring Schematics 3.1 HTM Central Wiring Diagram 3.2 HTM Zone Wiring Diagram...
  • Page 9 TotalAlert Infinity™ HTM Medical Gas Notification System 4.7.2 Relay Output Board (B4X Board) 4.7.3 Wired Ethernet Setup 4.7.4 BACnet Set-Up 4.7.5 “Mirroring” Two Alarm Panels 4.8 Medipoint/Shire Network 4.8.1 Medipoint Network 4.8.2 Medipoint Network Setup 4.8.3 Medipoint Network Gas Badge Setup 4.8.4 Shire Network Setup...

  • Page 10: Safety Symbols / Environmental Protection

    TotalAlert Infinity™ HTM Medical Gas Notification System 0.0 Safety Symbols / 0.2 Environmental Protection Environmental Protection 0.1 Important symbols for safety, Do Not Dispose of in General Waste. storage and handling This unit and/or components may be discarded in any standard refuse facility. The unit does Read Instructions not contain any hazardous substances.

  • Page 12: Introduction

    TotalAlert Infinity™ HTM Medical Gas Notification System 1.0 Introduction 1.2 User Interface Layout 1.1 Product Identification Each alarm is identified by a Reference number, Item number, and Lot Code. Installation procedures vary depending on the alarm configuration. The product ID label is located on the inside of the Home alarm back box (Figure 1.1).

  • Page 13: Central Alarm

    TotalAlert Infinity™ HTM Medical Gas Notification System 1.2.2 Central Alarm 1.2.5 Boards NOTE: Features: 4-20mA Inputs Displays a maximum of 24 signals. Combinations can Source Signal Inputs include: Dry-Contact Relay Outputs • Locally wired BeaconMedaes Line Contact Digital Gas Sensor Inputs Monitored Signals (Up to 20) •...
  • Page 14 TotalAlert Infinity™ HTM Medical Gas Notification System B06 Digital Gas Sensor Board B40, B41 Relay Output Boards Features: Features: • Monitors the Pressure/Vacuum from the pipeline, • Provides 16 normally closed dry-contact relay out- and provides a gas-specific digital signal for the puts for external monitoring.

  • Page 15: Definition Of Statements

    TotalAlert Infinity™ HTM Medical Gas Notification System 1.4 Definitions B60 Gas Input Board Features: 4-20 mA Input which monitors a two or three-wire 4-20mA transducer. • Monitors up to 8 Digital Gas Sensor Boards. One normally closed dry-contact relay output is avail- Address Resolution Protocol (ARP) able and opens when any fault occurs.

  • Page 16: Alarm Configurations

    TotalAlert Infinity™ HTM Medical Gas Notification System 1.5 Alarm Configurations General Fault Relay Single-pole single-throw dry-contact relay output. Used to activate remote alarm or building management All TotalAlert Infinity™ alarm panels are factory system. Relay will open whenever ANY audible alarm pre-configured.
  • Page 17 TotalAlert Infinity™ HTM Medical Gas Notification System 1.5.2 Area Alarms Sensor modules are mounted outside alarm backbox Figure 1.11: Area Alarm Front Panel Figure 1.12: Remote Sensors Area alarm panels include the following modular components: • Gas Sensor input board (B60) that are used for up to 8 digital sensors modules •...

  • Page 18: Gas Combination Alarms

    The TotalAlert Infinity is intended for use in the electromag- netic environment specified below. The customer or the user Combination alarms can monitor up to 20 of the TotalAlert Infinity should assure that it is used in such an BeaconMedaes Line Contact Monitoring signal. environment.
  • Page 19 RF transmitters, and electromagnetic site survey should be considered. If the measured field strength in the location in which the TotalAlert Infinity is used exceeds the applicable RF compliance level above, the TotalAlert Infinity should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the TotalAlert Infinity.

  • Page 20: Totalalert Infinity™ Medical Gas Notification System Parent Model Number Chart

    RF communications equipment and the TotalAlert Infinity The TotalAlert Infinity is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the TotalAlert Infinity can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the TotalAlert Infinity as recom- mended below, according to the maximum output power of the communications equipment.

  • Page 22: Installation Procedures

    TotalAlert Infinity™ HTM Medical Gas Notification System 2.0 Installation Procedures Drill wall and fit anchors in position. Select cable entry/exit points and remove the 2.1 Surface Mount Box desired knock-out segments from the inside. Fit suitable grommets/cable glands as required by the contract specification.

  • Page 23: Remotely Installed Sensors In Pipeline

    TotalAlert Infinity™ HTM Medical Gas Notification System 2.2.1 Remotely Installed Sensors in 2.3.1 General Requirements Pipeline All alarms are to be powered from the Essential Circuit as required by applicable standards. Mains Sensors can be installed onto the hospital pipeline operated using 115/230V, 50/60Hz AC.

  • Page 24: Power Supply

    TotalAlert Infinity™ HTM Medical Gas Notification System The following rules along with references to this conductor category 5 network cable is required manual’s schematics clarify wiring requirements. between each alarm panel and a facility’s Ethernet hub or switch. • Digital Gas Sensor Modules 2.3.4 Power Supply...

  • Page 25: B60 Gas Input Board

    TotalAlert Infinity™ HTM Medical Gas Notification System 2.3.5 B60 Gas Input Board field wiring. Alarm panels require 115 to 230VAC 50/60Hz 250mA mains power. Refer to HTM Central, Area, Combination Wiring Diagrams (Section 3). An Area alarm has 8 Gas Inputs. Signals are numbered D01 thru D08.

  • Page 26: B4X Relay Output Board

    TotalAlert Infinity™ HTM Medical Gas Notification System 2.3.6 B30 Gas Input Board 2.3.7 B4X Relay Output Board A Central or Combination alarm panel can contain a A Central or Combination alarm can contain multiple signal input board, maximum of 1 board or 20 relay output boards;...

  • Page 27: B50 4-20Ma Combination Board

    TotalAlert Infinity™ HTM Medical Gas Notification System 2.3.8 B50 4-20mA Combination Board 2.3.9 Alarm Panel “Mirroring” Each alarm panel has an Ethernet port on the back of A Combination alarm can contain a B50 board that the front panel assembly. By connecting the alarm to...

  • Page 28: Field Wiring Cable Shield Grounding

    TotalAlert Infinity™ HTM Medical Gas Notification System 2.3.12 Field Wiring Cable Shield 2.3.13 BACnet Grounding The BeaconMedæs TotalAlert Infinity™ HTM control systems utilize the TCP/ IP family of protocols for All field wiring cable shields must be grounded inside communication and each alarm has a unique IP alarm panel back box.

  • Page 29: Finish Assembly

    TotalAlert Infinity™ HTM Medical Gas Notification System 2.4 Finish Assembly 2.4.1 Front Panel Mounting ATTENTION: Observe Precautions for Handling ELECTROSTATIC SENSITIVE DEVICES Remove front panel assembly from packaging. Remove front panel mounting screws from alarm panel backbox assembly. Remove lanyard mounting nut from alarm panel back box assembly.

  • Page 31: Wiring Schematics

    TotalAlert Infinity™ HTM Medical Gas Notification System 3.0 Wiring Schematics 3.1 HTM Central Wiring Diagram 4107 9016 60.01...
  • Page 32 TotalAlert Infinity™ HTM Medical Gas Notification System 3.2 HTM Area Wiring Diagram 4107 9016 60.01...

  • Page 33: Htm Combination Wiring Diagram

    TotalAlert Infinity™ HTM Medical Gas Notification System 3.3 HTM Combination Wiring Diagram 4107 9016 60.01...

  • Page 35: Operation

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.0 Operation 4.1.2 Gas Badge Every gas monitored by the alarm will have a gas badge 4.1 Overview which will show the following information: • Gas being monitored The TotalAlert Infinity™ Medical Gas Notification •...

  • Page 36: Toolbar

    TotalAlert Infinity™ HTM Medical Gas Notification System NOTES: Home Button Information Button To provide an aesthetic display and maintain consistency in accordance with recognized and established medical gas service sequencing, it is recommended that displays are positioned in the Alarm...

  • Page 37: Display Screens

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.1.6 Display Screens Information Screen Active Alarm Screen The INFORMATION screen provides pertinent informa- tion about the alarm—including high and low alarm The ACTIVE ALARM screen provides detailed infor- values and firmware details—in one central place.
  • Page 38 TotalAlert Infinity™ HTM Medical Gas Notification System Touch the X button in the upper right to close and Warnings Tab return to the INFORMATION screen. Touch the WARNINGS tab to view any possible active warnings that would include lost network communica-...

  • Page 39: Alarm Configuration

    TotalAlert Infinity™ HTM Medical Gas Notification System Type the default password (121212), and touch the History Screen Enter button. You will be prompted to change the pass- To view up to 100 alarm events on screen, touch the word if you have not done so previously.
  • Page 40 TotalAlert Infinity™ HTM Medical Gas Notification System 4.3 Setting Up an Area Alarm Panel ID Description To change the description of the location of the alarm panel: Touch the [B] button that is located to the right of the numeric display (Figure 4.17).
  • Page 41 TotalAlert Infinity™ HTM Medical Gas Notification System The SETUP INFORMATION screen is the first screen that users will see on an unconfigured alarm. (The MAIN screen is the first screen that users will see on a configured alarm.) Password Setup - Unconfigured Alarm •...
  • Page 42 TotalAlert Infinity™ HTM Medical Gas Notification System Initialize Modules Tab Primary Settings Tab The PRIMARY SETTINGS screen will now display with The PRIMARY SETTINGS tab allows you to select the ALARM TYPE checked, INITIALIZE MODULES active, and alarm type, initialize boards, and select gas inputs.
  • Page 43 TotalAlert Infinity™ HTM Medical Gas Notification System • Touch the GAS SENSORS tab. Figure 30: B60 board selected Figure 32: Gas Input Screen Note: Users may select up to eight different gases on the GAS THE GAS INPUT / B60 board must be selected INPUT screen.
  • Page 44 TotalAlert Infinity™ HTM Medical Gas Notification System • Touch the right and left arrows at the bottom of the screen to scroll through additional gas choices, including options to create custom mixes. Select the gas that is wired into the D01 input on the GAS INPUT / B60 board.

  • Page 45: Configuring Gas Id Badges

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.3.2 Configuring Gas ID Badges The TotalAlert Infinity Area alarm is designed to allow ™ configuration of eight gas badges using the B60 board. To configure the first badge to custom settings, touch the [1] button in the numeric display of the configura- tion screen (Figure 4.17).
  • Page 46 TotalAlert Infinity™ HTM Medical Gas Notification System C = [Gas Name] Tab E = [Units of Measure] Tab Figure 38: Gas Text Screen Figure 40: Units of Measure Tab • Touch the Erase button on the keyboard to delete the gas name.
  • Page 47 In some cases, facility dial gauges may show slightly different readings than the TotalAlert Infinity™ alarm (e.g., 3.2 BAR versus 3.0 BAR). To match the TotalAlert Infinity™ alarm exactly to a facility dial gauge: Select the offset amount. Touch the Save button to close the screen.

  • Page 48: Setting Up A Central Alarm

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.4 Setting Up a Central Alarm The SETUP INFORMATION screen is the first screen that users will see on an unconfigured alarm. The central alarm monitors whether source equipment (The MAIN screen is the first screen that users will see is working properly.
  • Page 49 TotalAlert Infinity™ HTM Medical Gas Notification System Save Erase Figure 50: Choosing Code and Alarm Styles Figure 48: Changing the Security Password • Touch the Save button when you see checks beside your selections to close the screen and return to Primary Settings Tab the PRIMARY SETTINGS screen.
  • Page 50 TotalAlert Infinity™ HTM Medical Gas Notification System At this point, you have two options: Either touch the Scan button to prompt the alarm to autofill the screen for you. Complete the screen by selecting the boards installed in the alarm.

  • Page 51: Configuring Source Badges

    TotalAlert Infinity™ HTM Medical Gas Notification System Figure 57: Gas Input Screen Figure 59: Gas Sensors Selection Up to eight different gases may be Touch the Save button when you see a check beside selected on the GAS INPUT screen.
  • Page 52 TotalAlert Infinity™ HTM Medical Gas Notification System B = Gas Color Code Tab (1) botton in the numeric display (Figure 4.60). Figure 61: Configure Source Screen Figure 63: Gas Color Code Tab To select the color code for the appropriate gas based...
  • Page 53 TotalAlert Infinity™ HTM Medical Gas Notification System D = Area Monitored Each Plant (Source) badge has room for 5 signal inputs (E-J) (Figure 4.61). The first tab E is used to show the alarm in “Normal” condition. The (F-H) inputs are used for warning inputs such as “Change Cylinders”...

  • Page 54: Maintenance Mode Setup

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.4.3 Maintenance Mode Setup NOTE: See the end of this section for information on the To ensure the audible warning does not sound while Miscellaneous Tab. See Section 4.6 for information setting up the alarm, the MAINTENANCE MUTE function on the Active Alarm Opt Tab.
  • Page 55 TotalAlert Infinity™ HTM Medical Gas Notification System The SETUP INFORMATION screen is the first screen that Entering the Password users will see on an unconfigured alarm. The ENTER SECURITY PASSWORD screen appears. (The MAIN screen is the first screen that users will see on a configured alarm).
  • Page 56 TotalAlert Infinity™ HTM Medical Gas Notification System • Touch the ALARM TYPE tab. The INITIALIZE MODULES screen is used to set up the • Choose a code style based on code requirements. boards that are installed. The boards function as the •...
  • Page 57 TotalAlert Infinity™ HTM Medical Gas Notification System Setting up the Location B60 Board Touch B to set the LOCATION text. Users may select up to six different gases on the GAS INPUT screen. These gases correspond to the pressure sensors wired into the GAS INPUT / B60 board or the Gas Combination / B65 board.

  • Page 58: Configuring Source Badges

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.5.2 Configuring Source Badges A = Alarm Point Touch the ALARM POINT tab to select the The TotalAlert Infinity combination alarm is designed ™ proper HTM Signal. to allow the configuration of ten source badges. Twenty locations with up to eight source signals each can be tied to each source badge.
  • Page 59 TotalAlert Infinity™ HTM Medical Gas Notification System C = Gas Text Tab Each Plant (Source) badge has room for 5 signal inputs (E-J) (Figure 4.85). The first tab E is used to show the alarm in “Normal” condition. The (F-H) inputs are used for warning inputs such as “Change Cylinders”...

  • Page 60: Configuring Gas Id Badges

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.5.2 Configuring Gas ID Badges The TotalAlert Infinity™ Area alarm is designed to allow configuration of eight gas badges using the B60 board. To configure the first badge to custom settings, touch the [1] button in the numeric display of the configura- tion screen (Figure 4.83).
  • Page 61 TotalAlert Infinity™ HTM Medical Gas Notification System C = [Gas Name] Tab E = [Units Of Measure] Tab Figure 92: Gas Text Screen Figure 94: [Units of Measure] Tab Touch the Erase button on the keyboard to delete To change the unit of measure: the gas name.
  • Page 62 TotalAlert Infinity™ HTM Medical Gas Notification System H = Zero Offset Tab Active Alarm Instruction: To set facility instructions for active alarms, touch either the GENERAL MESSAGE or OPTION MSG tab. The alarm defaults to GENERAL MESSAGE. See Sec- tion 4.6 for how to set up custom instructions.

  • Page 63: Miscellaneous Tab

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.5.4 Miscellaneous Tab The WIFI screen shows: • WIFI status Users can customize certain aspects of the TotalAlert • SSID Infinity™ Alarm’s appearance and functionality. One • IP address aspect of changing the Alarms appearance is that the users can select between English, Spanish, and French by touching the “LANGUAGE”...

  • Page 64: Customized Instructions Set Up

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.6 Customized Instructions Set Up Active Alarm Opt Tab The ACTIVE ALARM OPT tab allows users to customize their Active Alarm options in two ways: by adding alarm instructions and by changing the alarm default screen.
  • Page 65 TotalAlert Infinity™ HTM Medical Gas Notification System Keyboard tips: • Touch the 01 tab. Enter the instruction. Touch the • Touch the [<ÁÑ] to toggle to symbols. Touch the [<ÁÑ] to toggle to symbols. Touch the [1AZ] key to [1AZ] key to toggle back to letters and numbers.

  • Page 66: Additional Components

    Figure 109: Alarm Message: High • Changing the Alarm Default Screen • The TotalAlert Infinity™ Area Alarm switches to the Figure 110: Configuration screen ACTIVE ALARM screen if the alarm goes into fault status. The TotalAlert Infinity™ alarm is designed to allow configuration of four gas badges using the B50 board •...
  • Page 67 TotalAlert Infinity™ HTM Medical Gas Notification System A = [Gas Input] Tab After configuring the Alarm Type, the B50 board must be initialized. Select “Initialize Modules” on the Primary The B50 should be green and there should be 4 Settings Screen. Press the “Scan” button to make sure choices (I01, I02, I03, I04).
  • Page 68 TotalAlert Infinity™ HTM Medical Gas Notification System C = [Gas Name] Tab Use the keyboard to assign a device name. Type in the name of the device to be monitored. Touch the [<ÁÑ] to toggle to symbols and extended Latin Characters.

  • Page 69: Relay Output Board (B4X Board)

    TotalAlert Infinity™ HTM Medical Gas Notification System F = Low Alarm Settings Tab Active Alarm You can remove the low alarm set point or customize To setup active alarm General Message: the low alarm set point. Touch the General Message tab to activate general message.
  • Page 70 TotalAlert Infinity™ HTM Medical Gas Notification System The B40 (or B41) board must be initialized. Touch Select the corresponding “Ethernet” if an Ethernet Primary Settings from the right side menu, then select signal has been set up. (See Mirroring in Section 4.6.4.) “Initialize Modules”.

  • Page 71: Wired Ethernet Setup

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.7.3 Wired Ethernet Setup The TotaAlert Infinity™ Notification System allows for networking via standard Ethernet. Any alarm panel can be remotely observed on the network using a standard web browser. IP Address using DHCP method: Upon power-up of the system, the device will search for a DHCP server.

  • Page 72: Bacnet Set-Up

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.7.4 BACnet Set-Up Wired Ethernet Settings On the Miscellaneous screen, touch the WIRED The TotalAlert Infinity™ alarms employ the TCP/IP ETHERNET tab (Figure 4.113). family of protocols for communication and each device has a unique IP address. The alarm utilizes a built-in Ethernet connection for BACnet transmission of signals to a Building Automation System.

  • Page 73: Mirroring" Two Alarm Panels

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.7.5 “Mirroring” Two Alarm Panels Each alarm panel has an Ethernet port on the back of the front panel assembly. By connecting the alarm to the hospital network, via Ethernet, or directly cabling it...
  • Page 74 TotalAlert Infinity™ HTM Medical Gas Notification System • Touch Wired Ethernet tab to access the Wired Ethernet control screen (Section 4.7.3). • Configuration of the Wired Ethernet settings to be performed by facility’s IT specialist. Settings for the IP Address, Subnet Mask, Default Gateway, and DNS Server Address to conform to facility’s net-...
  • Page 75 TotalAlert Infinity™ HTM Medical Gas Notification System • Touch the ETHERNET tab that corresponds to Central Signals the alarm panel providing the gas pressure to be • Go to the Configuration screen mirrored. Figure 143: Configuration Screen Figure 141: Ethernet Screen A = [Gas Color Code] Tab •...
  • Page 76 TotalAlert Infinity™ HTM Medical Gas Notification System C = Area Monitored Tab D = Normal Text To add areas to be monitored: • Defaults to Normal condition Touch the AREA MONITORED tab. E = Alarm Point Tab • Touch the ALARM POINT tab to assign a channel to the badge.

  • Page 77: Medipoint/Shire Network

    TotalAlert Infinity™ HTM Medical Gas Notification System 4.8 Medipoint/Shire Network 4.8.1 Medipoint Network The Medipoint alarm system works by identifying each individual gas channel or set or point alarm inputs with a unique ID. The switches are hexadecimal (i.e. A corre- sponds to 10, B corresponds to 11 etc.

  • Page 78: Medipoint Network Gas Badge Setup

    TotalAlert Infinity™ HTM Medical Gas Notification System Figure 154: Medipoint Network Setup Figure 156: Medipoint Network Setup • To communicate with a Medipoint network, press • Select the inputs for signals that will be wired the MEDIPOINT COMMS tab. locally to the alarm.
  • Page 79 TotalAlert Infinity™ HTM Medical Gas Notification System B = Gas Color Code Tab Figure 158: Configure Source Locations Figure 161: Gas Color Code Tab A = Alarm Point Tab • Touch ALARM POINT tab to configure gas badge To select the color code for the appropriate gas based on your standard and country: Touch the B = GAS COLOR CODE tab (Figure 4.63)

  • Page 80: Shire Network Setup

    TotalAlert Infinity™ HTM Medical Gas Notification System Scroll through the options using the right and left letters and numbers. arrows at the bottom of the screen. Touch the Save button. Touch the tab for the appropriate option, or select D = Area Monitored a blank to create a custom alarm.

  • Page 81: Shire Network Gas Badge Setup

    TotalAlert Infinity™ HTM Medical Gas Notification System Figure 166: Shire Network Setup Figure 168: Shire Network Setup • Communication (B30) can be toggled OFF or ON by • Select the inputs for signals that will be wired pressing the correlating tabs. Alarm Role can also locally to the alarm.
  • Page 82 TotalAlert Infinity™ HTM Medical Gas Notification System B = Gas Color Code Tab Figure 170: Configure Source Locations Figure 173: Gas Color Code Tab A = Alarm Point Tab • Touch ALARM POINT tab to configure gas badge To select the color code for the appropriate gas based on your standard and country: Touch the B = GAS COLOR CODE tab (Figure 4.63)

  • Page 83: Website

    TotalAlert Infinity™ HTM Medical Gas Notification System letters and numbers. Scroll through the options using the right and left Touch the Save button. arrows at the bottom of the screen. Touch the tab for the appropriate option, or select D = Area Monitored a blank to create a custom alarm.
  • Page 84 TotalAlert Infinity™ HTM Medical Gas Notification System Alarms Network Devices Click Alarms to view current alarms (Figure 4.159). To view all devices on the network, click Network Click Refresh to view the most recent information. Devices (Figure 4.161). Click Refresh to view the most recent information.

  • Page 85: Website Set-Up

    TotalAlert Infinity™ HTM Medical Gas Notification System Figure 181: Event Log Figure 182: Typical Alarm Panel Home Page Login to Setup Pages NOTE: Click Login and Setup. The Event Log page provides a snapshot of the The web browser will request a username and event log.
  • Page 86 Click the SET tab to complete. When the SET tab is pressed, the date and time are set on the system The TotalAlert Infinity™ provides the ability to enroll up and seconds are set to zero. to 100 TotalAlert Embedded devices connected to the medical gas network.
  • Page 87 This setup page is used to configure alarm name, location, facility name, and contact information. The page also provides input for TotalAlert1 compatibility if the TotalAlert Infinity™ needs to be enrolled on the TotalAlert 1 network. Click Device Setup to access the Setup Device page (Figure 4.171).
  • Page 88 TotalAlert Infinity™ HTM Medical Gas Notification System BACnet Setup The BeaconMedæs TotalAlert Infinity™ HTM control systems utilize the TCP/ IP family of protocols for communication and each alarm has a unique IP address. Each BACnet enabled TotalAlert Infinity™ alarm conforms to the BACnet protocol.

  • Page 89: Wireless Ethernet Set-Up

    TotalAlert Infinity™ HTM Medical Gas Notification System Clear Event Log The WIRELESS ETHERNET screen allows for customiza- tion of the WIFI settings. All of the tabs on this screen Click Clear Event Log to access the Clear Event Log are set to default status.
  • Page 90 • Open the browser and enter the IP address (default is 192.168.50.1) to go to the TotalAlert Infinity™ home page. This page displays active alarms, gas pressure signals, Network devices, device informa- tion, and the event log.
  • Page 91 TotalAlert Infinity™ HTM Medical Gas Notification System 4-57 4107 9016 60.01...

  • Page 92: Retrofit

    TotalAlert Infinity™ HTM Medical Gas Notification System 5.0 Retrofit 5.1.2 Install New Components Install the Trim Ring to the concealed backbox using the previous hinge screws (Figure 5.1). 5.1 Retrofit of MP26 or MP125 Concealed Mounted Alarm Panels 5.1.1 Remove Components from Existing...
  • Page 93 Medipoint or Shire communication wires. Refer to HTM Central Wiring Diagram (Section 3.1). Remote Sensors New TotalAlert Infinity Digital Gas Sensors must be installed to work with the TotalAlert Infinity alarm panel. 2. CAUTION: If Orifice fitting is not installed at the...
  • Page 94 Surgical Air configurations contact BeaconMedaes Customer O2-N2O Service +44 (0) 1246 474 242. Notes: Example: TotalAlert Infinity™ Central Alarm with 20 Inputs and 16 Relay * Limitations on Combination Panels: Outputs Example Model Number: A3-M11-R • C10, C11, C12 Combinations Example: TotalAlert Infinity™...
  • Page 95 TotalAlert Infinity™ HTM Medical Gas Notification System Typical Retrofit Layouts (Recommended Installation) Module Components Letter Description Designator B05 Power Supply B30 Module (Signals, 20 Inputs) B60 Module (Gas Input, 8 gases, 1 output) Dimensions 282mm 232mm MP125 Retrofit 282mm 232mm MP26 Retrofit 4107 9016 60.01...

  • Page 96: Maintenance

    TotalAlert Infinity HTM Medical Gas Notification System ™ 6.0 Maintenance I/O Board* See Table 2 for complete list Gas Sensor Module** See Table 1 Power Supply Front Panel Assembly Figure 6.1: Maintenance NOTE: For additional service parts, see parts list manual (Part #4107 9017 56).
  • Page 97 BeaconMedæs service technician. Open front panel and locate the grey power cable con- For TotalAlert Infinity alarms, Order Service Replace- ™ necting to back of front panel. Disconnect grey cable ment Kit by calling Customer Service at 1-800-4MED- from front panel (power will be removed at this point).

  • Page 98: Troubleshooting

    TotalAlert Infinity HTM Medical Gas Notification System ™ 7.0 Troubleshooting Symptom Possible Cause Corrective Action No LED power indicator AC power is not turned on Check AC power source. illuminated on alarm Blown power supply fuse Replace fuse. front panel...
  • Page 99 TotalAlert Infinity HTM Medical Gas Notification System ™ Troubleshooting (continued) Symptom Possible Cause Corrective Action Area Display pressure/ Bad gauge on pipeline Verify gauge used on pipeline vacuum reading not Incorrect unit of measure Check unit of measure, if incorrect, matching pipeline.

  • Page 100: Central Alarm Signal Input Data

    TotalAlert Infinity HTM Medical Gas Notification System ™ 8.0 Central Alarm Signal Input Data Module Board Input Alarm Message Source Location C1X1 C1X2 C1X3 C1X4 C2X1 C2X2 C2X3 C2X4 C3X1 C3X2 C3X3 C3X4 C4X1 C4X2 C4X3 C4X4 C5X1 C5X2 C5X3 C5X4 4107 9016 60.01...

  • Page 102: Non-Latin Language Website

    TotalAlert Infinity™ HTM Medical Gas Notification System 9.0 Non-Latin Language Website NOTE If the on-screen password has been changed 9.1 Website Login from the default password, use the newly assigned password. 1. Accessing the Web Page. Connect Ethernet cable from computer to ethernet port on main display board.

  • Page 103: Area Alarm Configuration - Website

    TotalAlert Infinity™ HTM Medical Gas Notification System The TotalAlert Infinity alarm main label set- up screen allows for setting up Area, Cen- tral, and Combination alarms with non-latin language characters. NFPA, HTM, and ISO colors can all be selected within this setup.
  • Page 104 TotalAlert Infinity™ HTM Medical Gas Notification System how many area alarms are displayed on the alarm’s LCD. (See Figure 239) Figure 241 9. To setup location of gas monitored, Figure 239 select Location tab on badge (located just under the gas label). Enter non-latin lan- 6.
  • Page 105 TotalAlert Infinity™ HTM Medical Gas Notification System Figure 243 Figure 245 TotalAlert Infinity alarm allows for custom- 16. To save, select “Save High Alarm Instruc- ized instructions for each high and low tions” button. Touch the Back button to pressure fault condition.
  • Page 106 TotalAlert Infinity™ HTM Medical Gas Notification System Figure 247 Figure 249 17. To setup the active alarm screen High, from the pull down menu, choose “Active Alarm Screen Message High”. Then input the non-latin language character for “HIGH” in the writable tab.

  • Page 107: Central Alarm Configuration - Website

    TotalAlert Infinity™ HTM Medical Gas Notification System Figure 253 21. Then go to physical alarm screen. Figure 256 22. Go to config screen. 26. If units of measure was setup from web- site, then go to configuration screen and 23. Put in password.
  • Page 108 TotalAlert Infinity™ HTM Medical Gas Notification System 4. Click on Label Setup to enter the main NOTE label screen for non-latin language input. To learn the IP address, touch the MISCEL- LANEOUS tab on the configuration screen NOTE then touch the WIRED ETHERNET tab.
  • Page 109 TotalAlert Infinity™ HTM Medical Gas Notification System Figure 263 4. To setup Panel Location Label, select Figure 261 “Panel Location Label”. Enter the non-latin language for the location of the panel. 2. Setup display is similar to what is dis- Click save button to enter.
  • Page 110 TotalAlert Infinity™ HTM Medical Gas Notification System Figure 267 9. To setup location of gas monitored, select Location tab on badge (located just under the gas label). Enter non-latin lan- guage characters for the location of gas Figure 265 being monitored. (See Figure 268) 6.
  • Page 111 TotalAlert Infinity™ HTM Medical Gas Notification System TotalAlert Infinity Central alarm allows for 15. Choose “Back” button to return to the setup of 4 alarm conditions (ie. Change main setup screen. Cylinders, Change Immediate, Reserve Low, Pressure Fault). A customized instruction 16.
  • Page 112 TotalAlert Infinity™ HTM Medical Gas Notification System Close Clear all entered text Figure 274 Backspace Enter Figure 277 30. Touch Security Tab Figure 275 Figure 278 31. Touch Roboot Software Tab (alarm will reboot - blinking LED power light while loading data) Figure 276 18.

  • Page 113: Combination Alarm Configuration - Website

    TotalAlert Infinity™ HTM Medical Gas Notification System Figure 281 Login to Setup Pages Figure 280 1. Click Login and Setup. 2. The web browser will request a user- name and password (Figure 282). The factory defaults are: 9.4 Combination Alarm configura-...
  • Page 114 TotalAlert Infinity™ HTM Medical Gas Notification System tion of source and area badges. NOTE Logging in applies only to the computer on 2. Setup display is similar to what is dis- which the login occurs. If more than one played on the alarm home screen. (See Fig-...
  • Page 115 TotalAlert Infinity™ HTM Medical Gas Notification System based from the required standard (NFPA, HTM, ISO). Custom colors can also be added by entering the RGB numbers. The non-latin language input field (located at the bottom of the parameter tab) de- faults in English with the gas previously se- lected.
  • Page 116 TotalAlert Infinity™ HTM Medical Gas Notification System Enter non-latin language characters for the location of gas being monitored. (See Figure 291) Figure 293 Figure 291 15. Choose “Back” button to return to the TotalAlert Infinity Central alarm allows for main setup screen.
  • Page 117 TotalAlert Infinity™ HTM Medical Gas Notification System Figure 295 Figure 297 17. Starting at the top of the Area Badge The TotalAlert Infinity alarm allows for set- parmeter box, select gas type from pull ting up custom Units which is typically done down menu (Gas color options will be up- for 4-20mA devices.
  • Page 118 TotalAlert Infinity™ HTM Medical Gas Notification System return key while typing if you wish to move to the second line of text early. 24. To save, select “Save Low Alarm Instruc- tions” button. Figure 301 The TotalAlert Infinity alarm allows the user...
  • Page 119 TotalAlert Infinity™ HTM Medical Gas Notification System Figure 303) Figure 305 Figure 303 31. To setup Information Screen from the pull down menu, Choose “Information Screen Version”. Then input the non-latin language character for “Version” in the writ- able tab. (See Figure 304) 32.
  • Page 120 TotalAlert Infinity™ HTM Medical Gas Notification System 23. Put in password. 26. If units of measure was setup from web- site, then go to configuration screen and choose the Area badge that requires the Close website units. Choose E “units of measure”...
  • Page 121 Blank Page...
