BeaconMedaes TotalAlert Infinity Quick Setup Manual

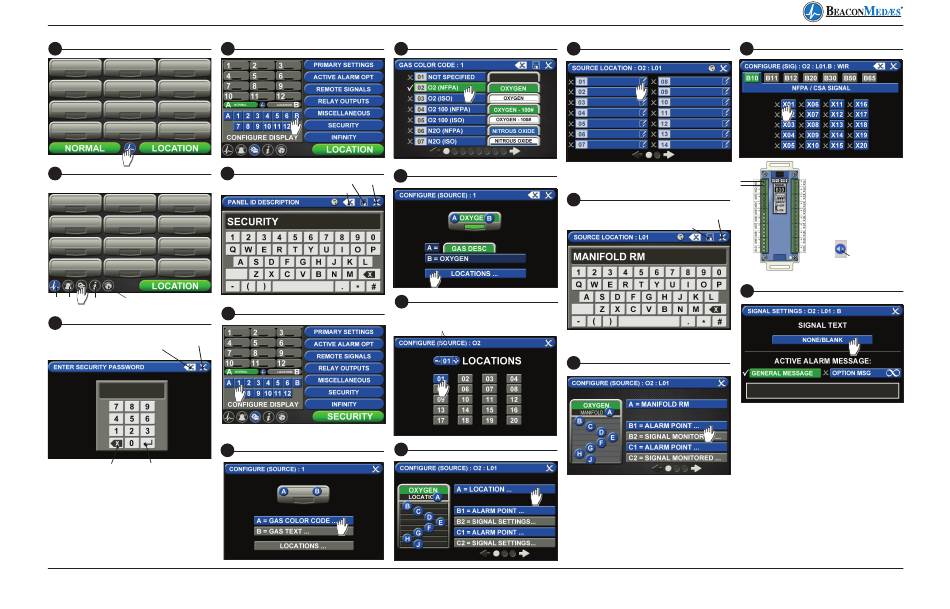

Quick Set-Up Guide: TotalAlert Infinity
1
2
Heartbeat
Alarm Information History
Icon
Configuration
3
Clear all
Close
entered
text
Backspace Enter
Type the default password (121212) and touch
Enter. Choose continue or change password.
4107 9016 92.01
™ Master Alarm
4 8
Touch B to set the LOCATION text.
Select appropriate gas and color code and touch save.
5
9
Clear all Cancel
Save
entered text
Enter master alarm location and touch save. 10
6
Touch 1 to set the gas and source locations, which will
be shown on badge 1.
11
7
12
Touch a blank location label to enter new text, or choose
an existing location label if the location has already been
set up. Touch save.
13
Select number of source locations for the above se-
lected gas (1 location per piece of source equipment)
After inputing source location, touch save, then select
the location to turn it green. Touch save.
14
Touch the B1 tab to begin set up of the first alarm point
(B).
15
Route each pair of signal input
wires as shown to appropriate
terminals on input board(s).
Touch the corresponding signal
point and touch save once the
point has been selected.
Clear all Cancel
Note: Alarm may sound. Touch
entered text
the mute button to silence the
alarm.
16
To select alarm description text:
• Scroll through the options using the right and left
arrows at the bottom of the screen.
• Touch the tab for the appropriate option.
• Touch the Save button when you see a check beside
your selection to close and return to the SIGNAL
SETTINGS screen.
• Touch the X button in the upper right to save the
signal text and return to the CONFIGURE (SOURCE)
screen to set up remaining signals for the first
location.
• Set up remaining locations for the first gas (badge
1), then set up additional gases as needed following
steps 6-15.
• To return to the home screen, touch the heartbeat
icon.
Mute Button
