Installation, Operation and Maintenance Instructions

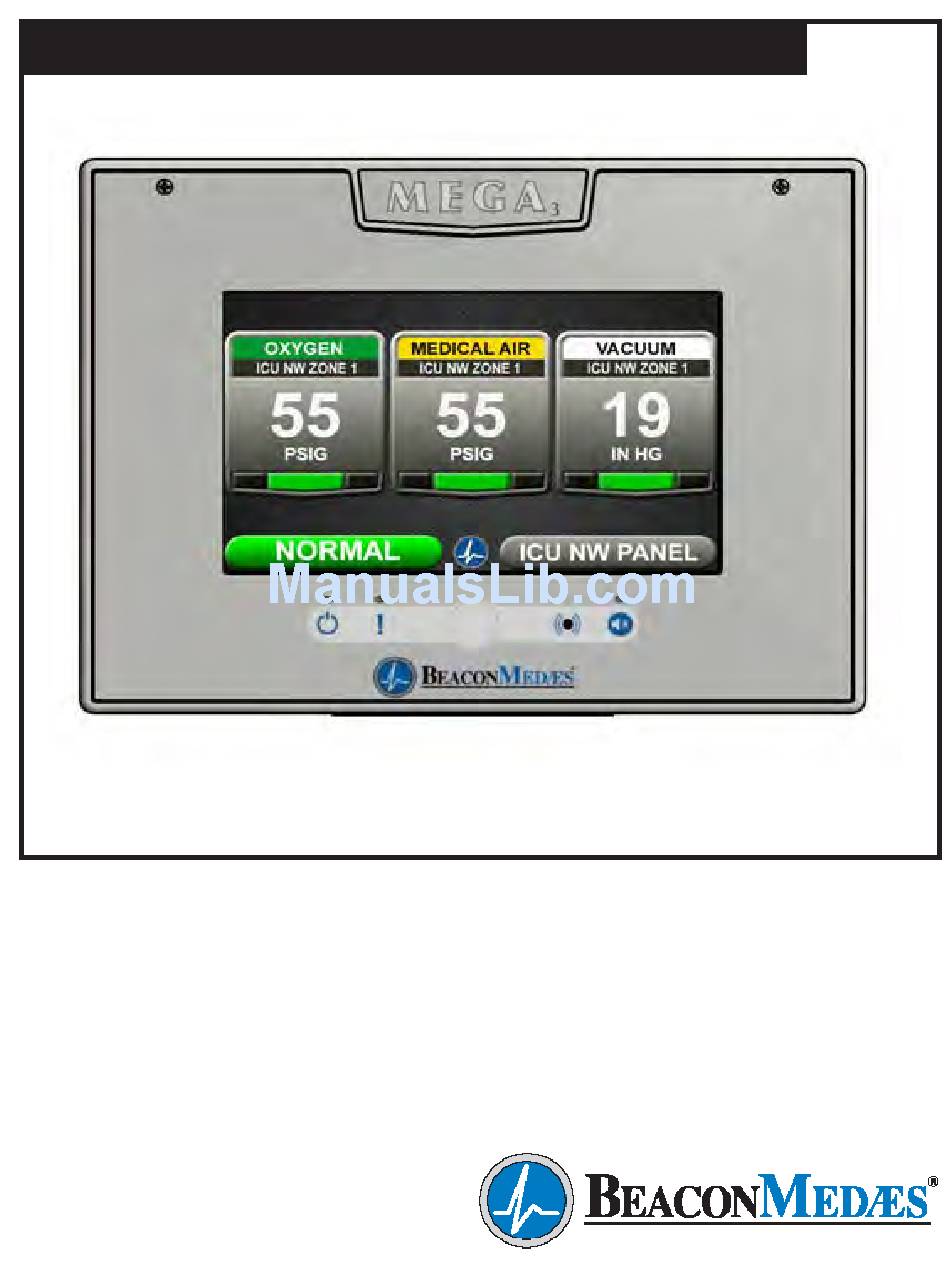

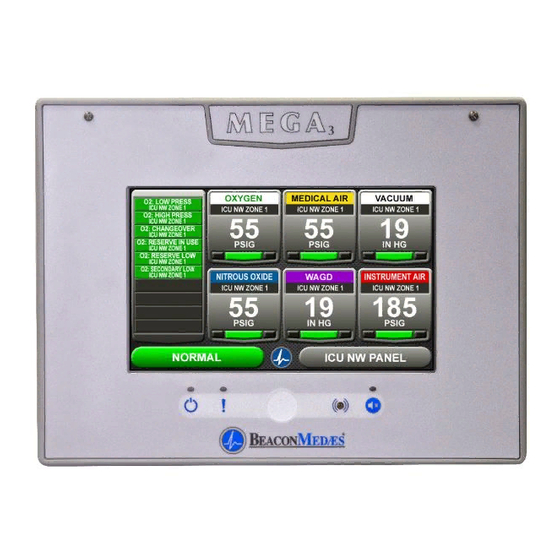

MEGA3 NFPA Medical Gas Notification System
Part number 4107 9016 59
Revision 03
August 27, 2015
Andersen Medical Gas
12 Place Lafi fi tte
Madisonville, LA 70447
http://www.TheMedicalGas.com
1-866-288-3783
