TotalAlert Infinity™ HTM Medical Gas Notification System

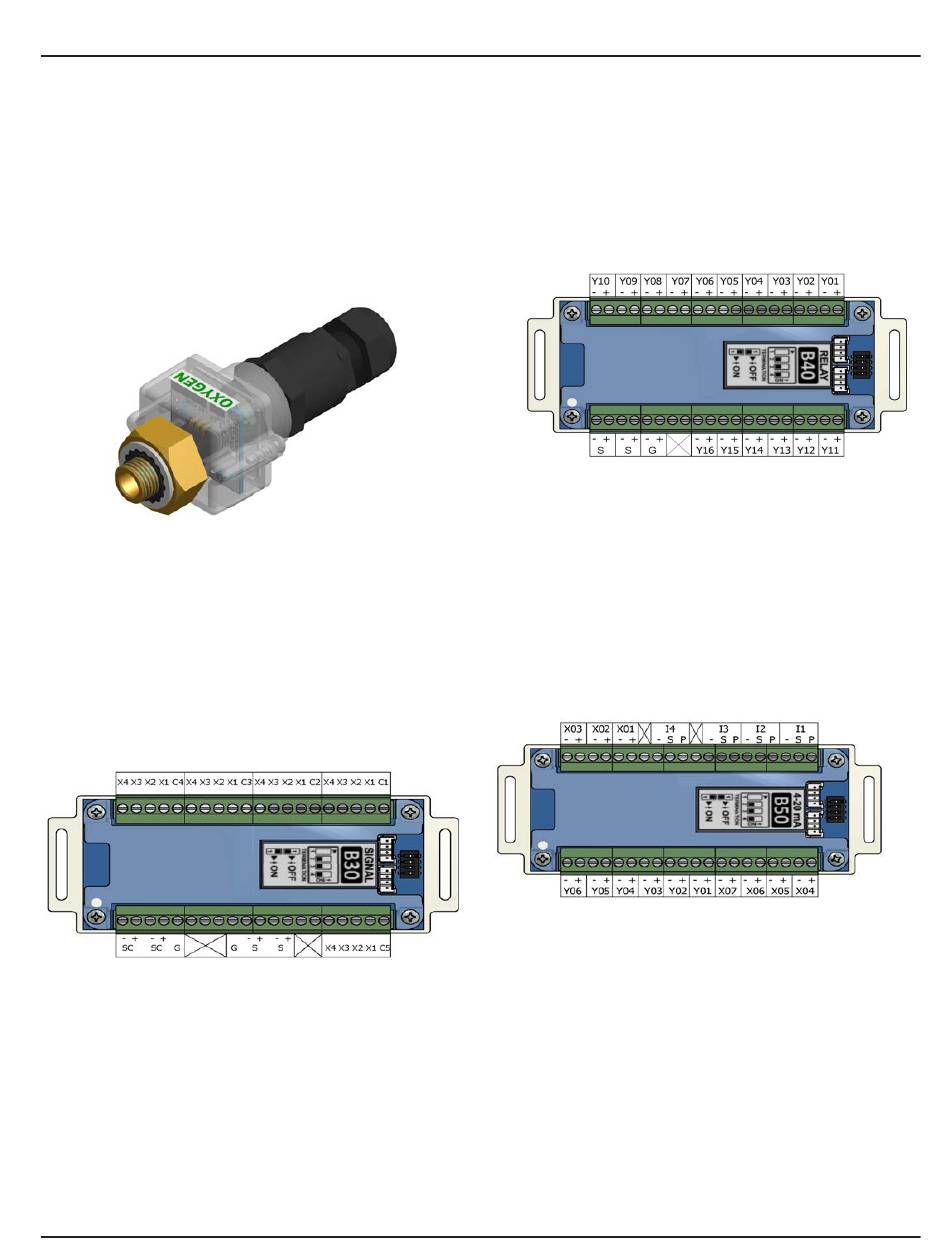

B06 Digital Gas Sensor Board
Features:
• Monitors the Pressure/Vacuum from the pipeline,
and provides a gas-specific digital signal for the
alarm.
• Heartbeat indicator to indicate proper operation.
• Embedded in the gas sensor
Figure 1.5: B06 Digital Gas Sensor Board
B30 Digital Gas Sensor Board
Features:
• Monitors up to 20 BeaconMedaes Line Contact
Monitoring signals on each board from source
equipment.
• Heartbeat indicator to signal proper operation.
Figure 1.6: B30 Digital Gas Sensor Board
B40, B41 Relay Output Boards
Features:
• Provides 16 normally closed dry-contact relay out-
puts for external monitoring.
• Heartbeat indicator to signal proper operation.
Figure 1.7: B40, B41 Output Boards
B50 4-20mA Combination Board
Features:
• Monitors up to four 4-20mA inputs and provides
6 normally closed dry-contact relay outputs for
external monitoring.
• Heartbeat indicator signals proper operation.
Figure 1.8: B50 4-20 mA Combination Board
