TotalAlert Infinity™ HTM Medical Gas Notification System

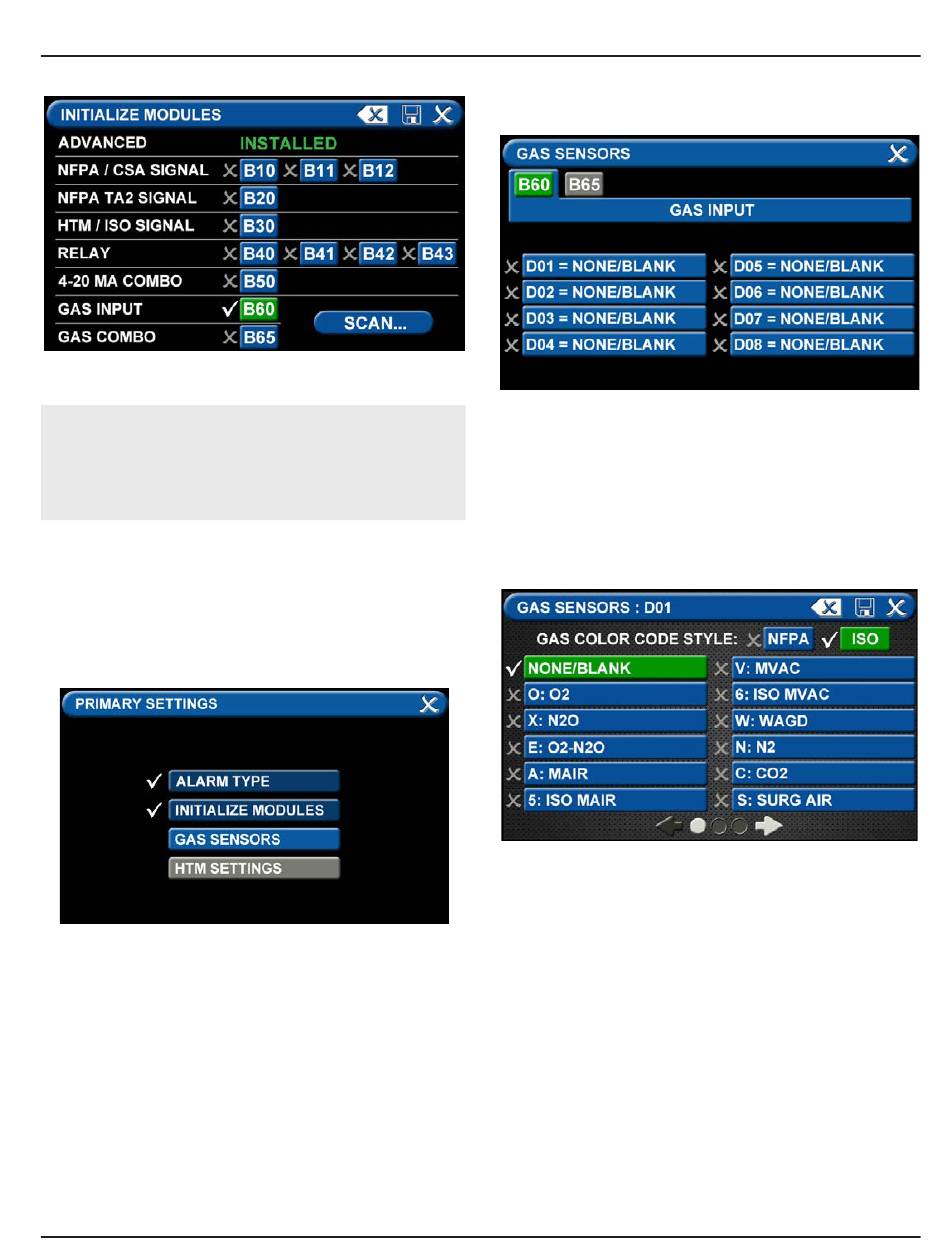

Figure 30: B60 board selected
Note:
THE GAS INPUT / B60 board must be selected
during the configuration of an area alarm.
• Touch the Save button when you see checks beside
your selections.
Gas Sensors Tab
The PRIMARY SETTINGS screen will now display with
ALARM TYPE and INITIALIZE MODULES checked, GAS
SENSORS active, and the last tab grayed out.
Figure 31: Gas Sensors Tab
• Touch the GAS SENSORS tab.
Figure 32: Gas Input Screen
Users may select up to eight different gases on the GAS
INPUT screen. These gases correspond to the digital
gas sensors wired into the GAS INPUT / B60 board (see
section 2.4.2).
• To select the first gas, touch the D01 = NONE/
BLANK tab.
Figure 33: Gas Sensors Screen
