• Touch the ETHERNET tab that corresponds to
the alarm panel providing the gas pressure to be
mirrored.

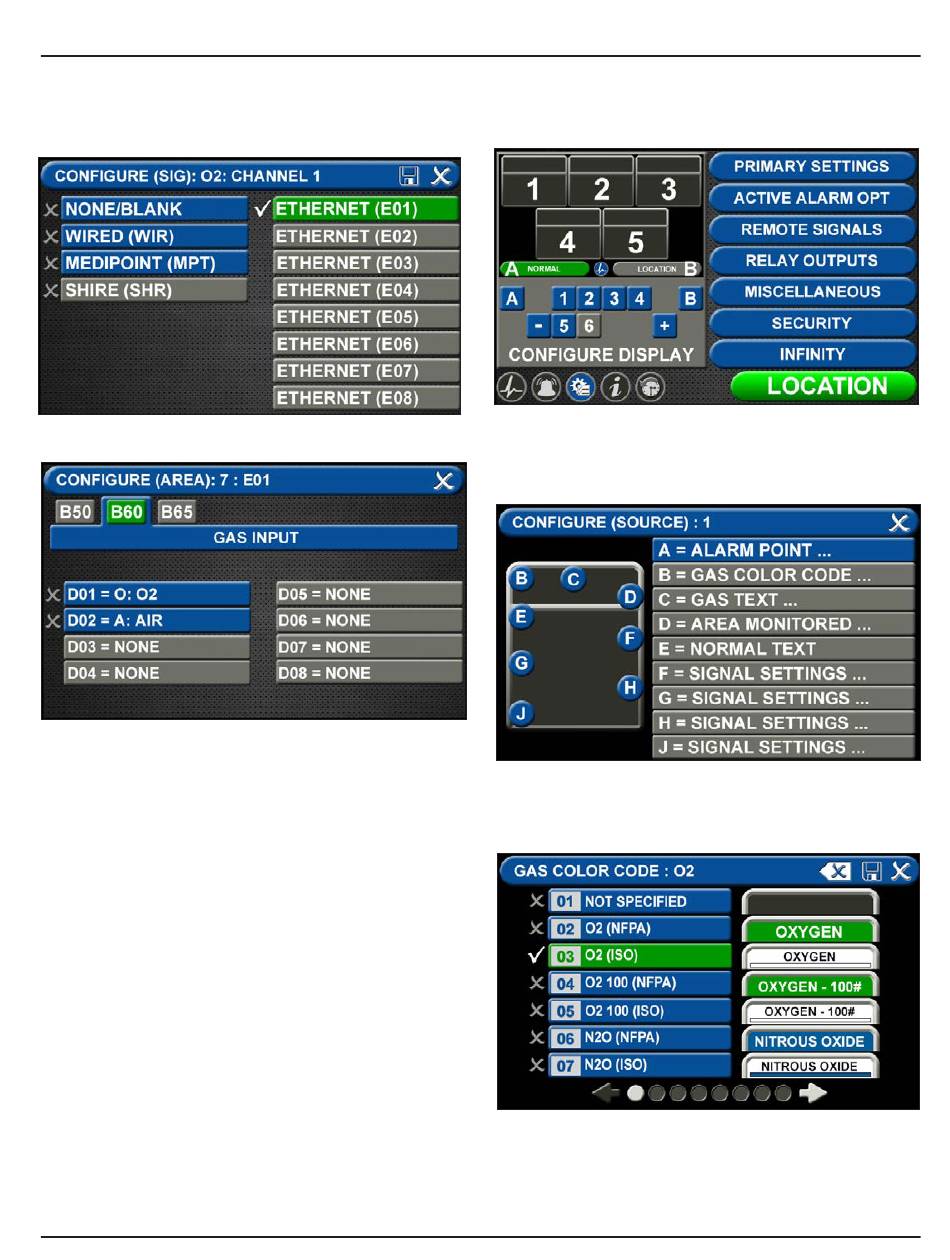

Figure 141: Ethernet Screen
Figure 142: Configure Area Screen
• At the CONFIGURE (AREA) screen (B60 Gas Input),
touch the gas to be mirrored.
• Touch the save button.
• Follow the steps for configuring gas badges listed
in Section 4.3.
Central Signals
• Go to the Configuration screen
Figure 143: Configuration Screen
A = [Gas Color Code] Tab
• Choose the source signal badge that represents the
source gas to be mirrored.
Figure 145: Configure Source Locations
• Touch the GAS COLOR CODE tab to select the
proper gas color code.
Figure 146: Gas Color Code Screen
• Select the proper gas color code and standard.
• Touch the save button.
