TotalAlert Infinity™ HTM Medical Gas Notification System
At this point, you have two options:
1.
Either touch the Scan button to prompt the alarm
to autofill the screen for you.
OR
2.
Complete the screen by selecting the boards
installed in the alarm.

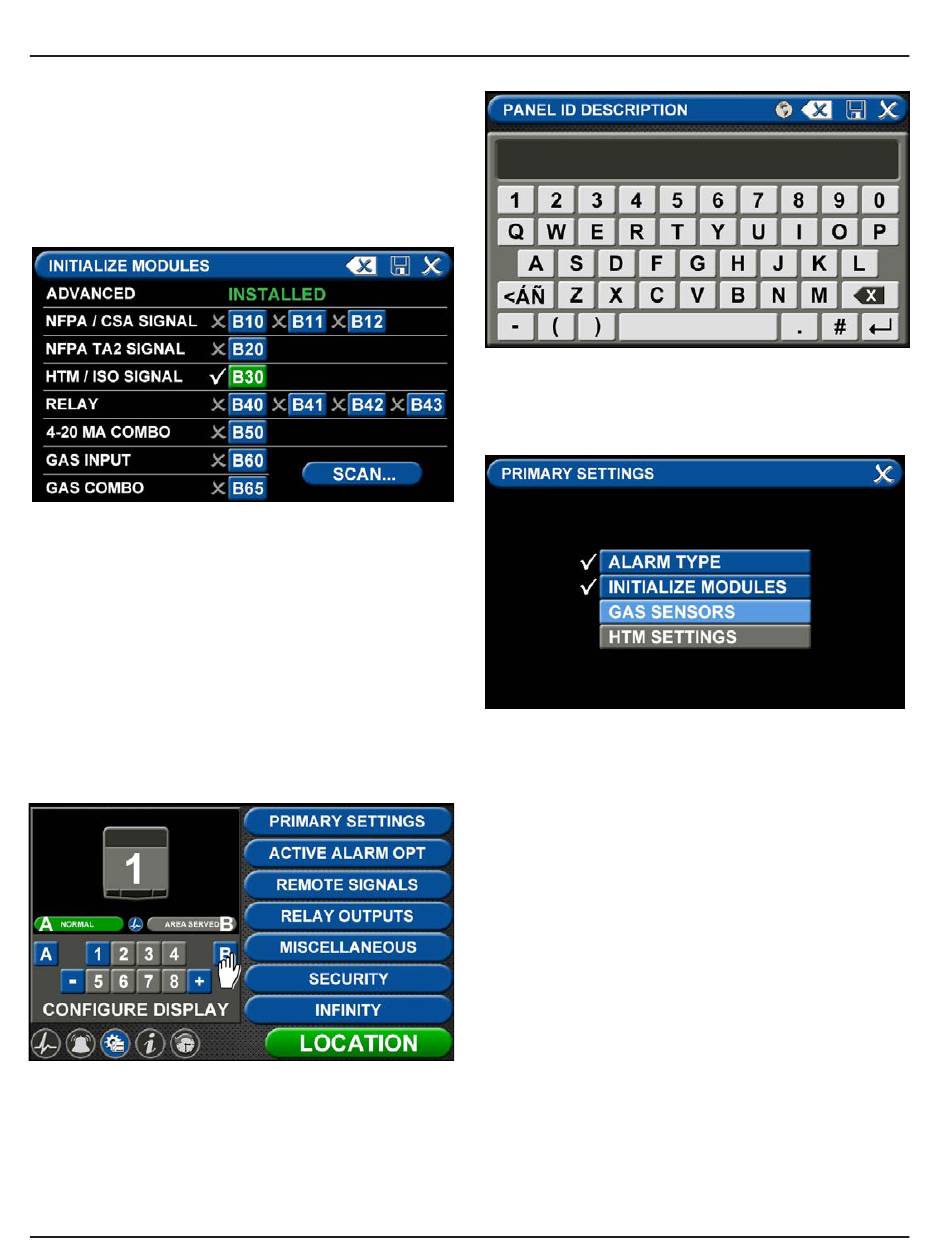

Figure 53: B30 board selected
Touch the Save button when you see checks beside
your selections.
Touch the X button in the upper right to close and
return to the CONFIGURATION screen.
The PRIMARY SETTINGS screen will now display with
ALARM TYPE and INITIALIZE MODULES highlighted and
checked and the other tabs grayed out.
Touch the X button in the upper right to close and
return to the CONFIGURATION screen.
Setting up the Location
Figure 54: Location Setup
Touch B to set the LOCATION text.
4107 9016 60.01
Figure 55: Entering the Location
Enter area served and touch save to return to the
configuration screen. Touch the PRIMARY SETTINGS
tab.
Figure 56: Primary Settings Screen
The PRIMARY SETTINGS screen will display with ALARM
TYPE and INITIALIZE MODULES checked, GAS SENSORS
active, and the last tab grayed out.
Touch the GAS SENSORS tab.
4-16
