BeaconMedaes Floor Pedestal Installation Instructions

Definition of Statements

Statements in these instructions preceded by the
following words are of special significance:
WARNING: Means there is a possibility of injury or
death to yourself or others.
CAUTION: Means there is a possibility of damage
to the unit or other property.
NOTE: Indicates points of particular interest for more
efficient and convenient operation.

Tools and Supplies Needed

• Stainless steel fastener systems (threaded fasteners,
lock washers, flat washers, etc.) 5/16" recommended
• Wrenches: 7/16" for crate fasteners
1/2" (or as required) for floor fasteners
• Phillips screwdriver
• Clear silicone caulk/sealer
• Tools for opening holes in floor surface
• Tools for installing fastener anchors
• Copper tube silver brazing equipment

Before you Begin

1. Notify facility you will be installing unit into gas piping
system.
2. Verify interruption/connection into gas piping system
WARNING:
Failure to follow proper lockout/tagout
procedures on electrical or pneumatic supply systems can
result in injury, death, or property damage.
has been authorized.

Unpacking Service Pedestal

1. Remove screws from top of crate. Top is printed with
REMOVE THIS SIDE FIRST message.
2. Remove packing foam and accessory carton (if
required) from inside crate. Remove additional
NOTE:
#6-32 x .375 flat-head fasteners are taped to inside
surface of lid. These are used to attach lid to pedestal unit
after final inspection.
packing foam to expose pedestal lid.
3. Remove lid from pedestal unit.
4. Reach into crate and remove four 1/4" nuts and
retaining washers with 7/16" wrench (Figure 1).
NOTE:
Some units may be shipped with gas service and
electrical outlets already installed.
Floor-Mounted Service

Installation Instructions

5. Carefully lift entire pedestal unit out of crate and
move to desired location.
6. Open accessory carton (if required) and verify that
NOTE:
Figures are for illustration purposes only. Actual unit
may vary in size and configuration from what is shown in
figures.

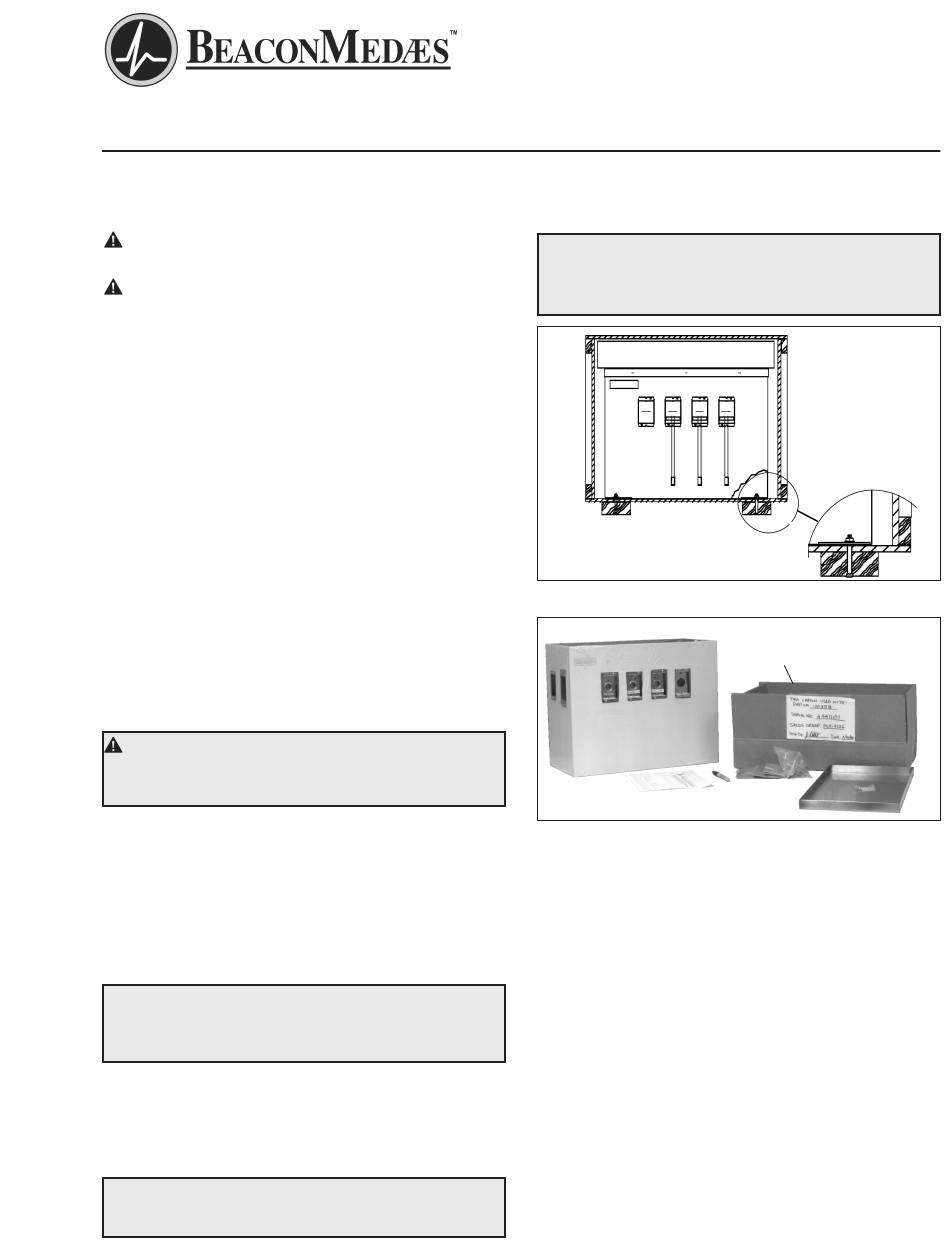

Figure 1
Figure 2
contents match packing list (Figure 2). Close
accessory carton and set aside until final assembly.

Installing Pedestal

1. Place pedestal unit in desired location and mark
four corner fastener locations on floor surface.
Reference standard pedestal (PED-08 and PED-
012) footprint dimensions (Figure 3a). Mark
locations for gas and electrical service(s) that will
be routed through floor into unit (Figure 3).
2. Move pedestal unit aside and prepare floor area
for installation. Attach fasteners into floor surface.
Pedestal
Accessory Carton
(if required)
Part No. 6-780748-00 Rev. C00 Pg. 1
