TotalAlert Infinity™ HTM Medical Gas Notification System
1.5.2 Area Alarms

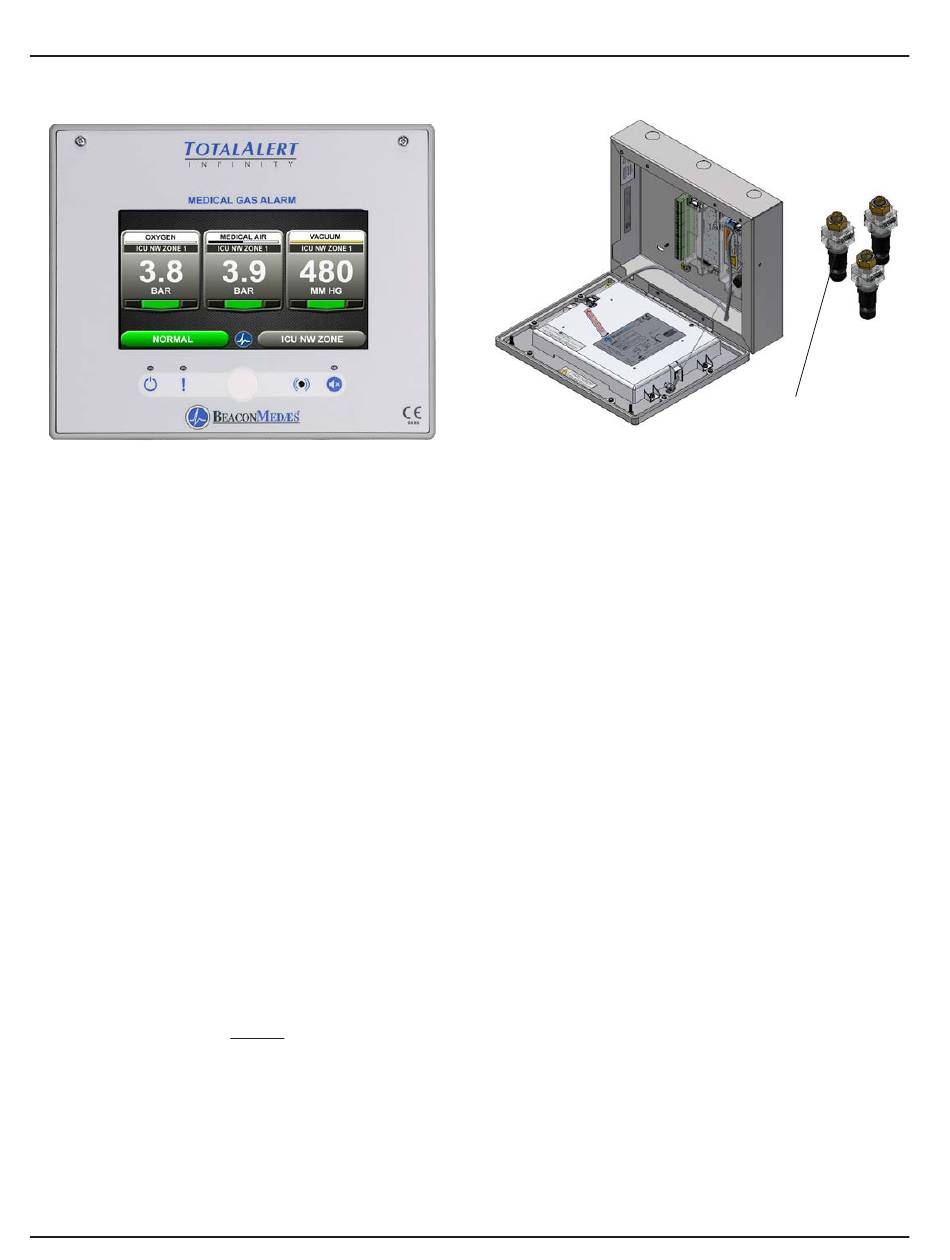

Figure 1.11: Area Alarm Front Panel
Area alarm panels include the following modular
components:
•
Gas Sensor input board (B60) that are used for up
to 8 digital sensors modules
•
Digital gas sensor module (B06), can be mounted
remotely on the gas pipeline. A maximum of 8 digi-
tal gas sensor modules are allowed per Area alarm
panel.
Area alarm panels may be configured for 1 to 8 gas
inputs. If alarm is configured with gas inputs, the
sensors will be included for connection to pressure/
vacuum pipeline.
Sensors have a 1/4" BSPP male fitting for attaching to
the hospital pipeline.
Model Number Scheme:
____ - _______ - ____
Series - Configuration - Retrofit
See Model Number Chart in Section 1.6.
Example:
TotalAlert Infinity™ Area Alarm
Example Model Number: A3-A10
4107 9016 60.01
Figure 1.12: Remote Sensors
1-6
Sensor modules are
mounted outside alarm
backbox
