TotalAlert Infinity™ HTM Medical Gas Notification System
Primary Settings Tab
The PRIMARY SETTINGS tab allows you to select the
alarm type, initialize boards, and select gas inputs.
• Touch the PRIMARY SETTINGS tab
Alarm Type Tab
The ALARM TYPE screen defines which type of alarm
will be displayed and drives later setup functions.

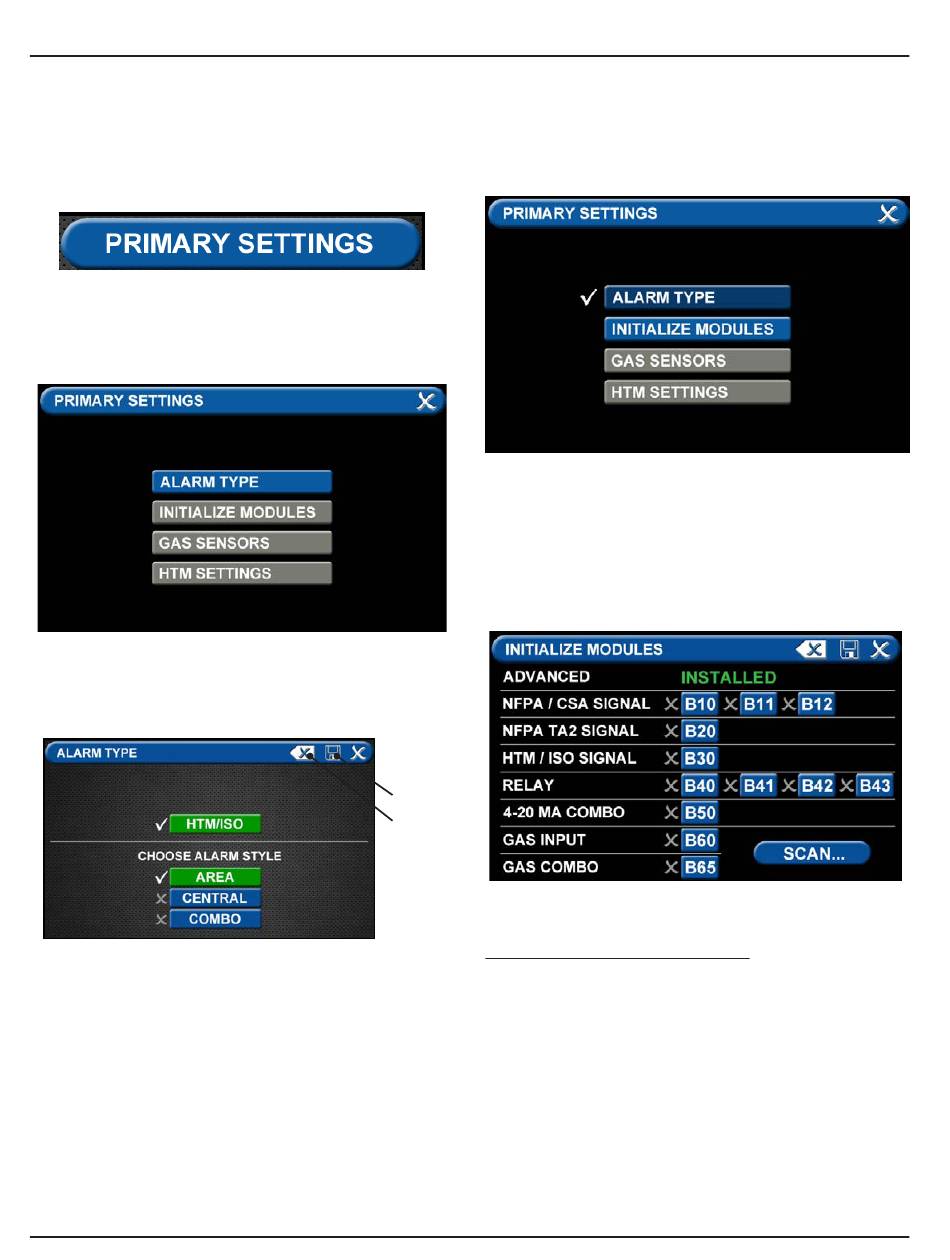

Figure 26: Alarm Type Tab
• Touch the ALARM TYPE tab.
• Choose a code style based on code requirements.
Figure 27: Choosing Code and Alarm Styles
• Touch the AREA tab
• Touch the Save button when you see checks beside
your selections to save the settings and return to
the PRIMARY SETTINGS screen.
Note: To clear your selections, touch the Erase button.
4107 9016 60.01
Initialize Modules Tab
The PRIMARY SETTINGS screen will now display with
ALARM TYPE checked, INITIALIZE MODULES active, and
the other tabs grayed out.
Figure 28: Initialize Modules Tab
• Touch the INITIALIZE MODULES tab.
The INITIALIZE MODULES screen is used to set up the
boards that are installed. The boards function as the
input/output hardware of the alarm.
Save
Erase
Figure 29: Initialize Modules Screen
At this point, you have two options:
1. Either touch the Scan button to prompt the alarm
to auto fill the screen for you.
OR
2. Complete the screen by selecting the boards
installed in the alarm.
