TotalAlert Infinity™ HTM Medical Gas Notification System
The B40 (or B41) board must be initialized. Touch
Primary Settings from the right side menu, then select
"Initialize Modules". Press the "Scan" button to make
sure the B40 board is set up, as it should turn green.
Once the B40 board is green, press the "Save" icon to
exit the screen. Exit the "Primary Settings" screen.

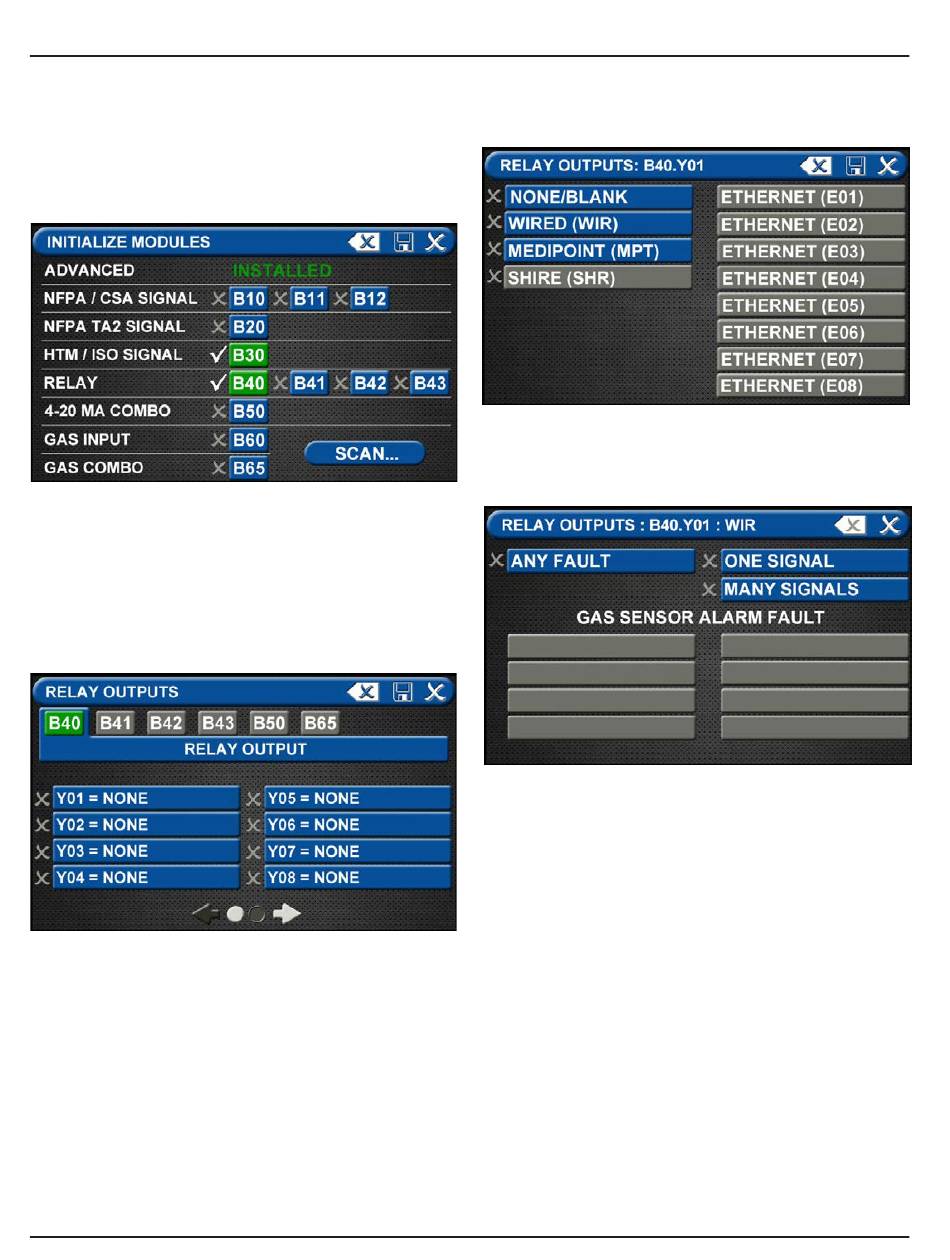

Figure 121: Initialize Modules Screen
The next step is to select the "Relay Outputs" from the
menu on the Configuration Screen. The B40 board
should be highlighted in Green (or other Relay Output
board installed in the backbox).
Select the signal that corresponds to the output wires
on the relay board (Y01 for example).
Figure 122: Relay Outputs Screen
After selecting the signal, you will need to assign it to
an alarm signal to send. Select "Wired" on the Relay
Output screen if the signal to be relayed is wired into
the backbox.
4107 9016 60.01
Select the corresponding "Ethernet" if an Ethernet
signal has been set up. (See Mirroring in Section 4.6.4.)
Figure 123: Relay Output Signal
There are three choices for the relay output signal.
Figure 124: Relay Output Signals Screen
1.
A single "Any Fault" which will report a general
alarm fault if any of the alarm signals on the alarm
go into alarm condition. To select "Any Fault", press
the blue "Any Fault" to change it to green with the
check mark. Then press Save to return to Relay
Outputs and set up additional outputs.
2.
"One Signal" reports a single signal through the
relay output. When pressing "One Signal", the next
step is to assign the signal to be transmitted.
On the Relay Output screen, select the Input Signal
to be transmitted (C1X1 from the B30 board for
example). Press Save to return to the Relay Out-
puts screen.
