TotalAlert Infinity™ HTM Medical Gas Notification System

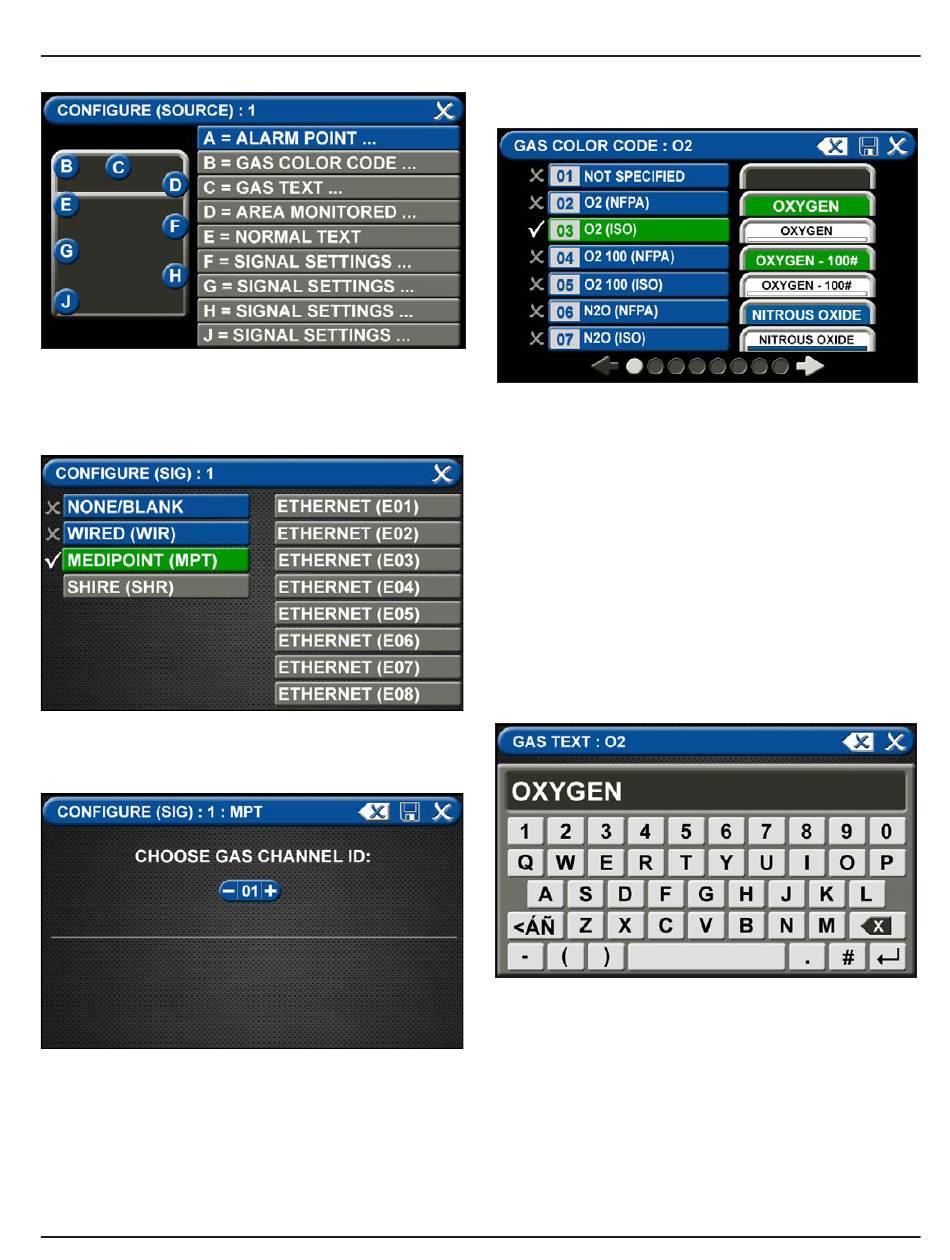

Figure 158: Configure Source Locations
A = Alarm Point Tab
• Touch ALARM POINT tab to configure gas badge
Figure 159: Configure Source
• Select MEDIPOINT (MPT) tab
Figure 160: Channel ID
• Use (-) and (+) to select the Gas Channel ID to be
displayed.
• Press Save Icon to complete setup.
B = Gas Color Code Tab
Figure 161: Gas Color Code Tab
To select the color code for the appropriate gas based
on your standard and country:
1. Touch the B = GAS COLOR CODE tab (Figure 4.63)
2. Scroll through the gas types using the right and left
arrows at the bottom of the screen.
3. Touch the tab for the appropriate code, or select a
"custom" tab to create a unique source badge.
4. Touch the Save button when you see a check
beside your selection. This will automatically fill in
tabs C-J with default values for the gas selected. If
changes are needed follow the next steps below.
C = Gas Text Tab
Figure 162: Gas Text Keyboard
To add areas to be monitored:
5. Touch the AREA MONITORED tab.
6. Touch on the 01 tab.
Using the keyboard, enter the name of the area. To
change the name of the gas:
1. Touch the C = [GAS TEXT] tab.
2. Touch the Erase button on the keyboard to delete
the gas name.
3. Enter the new gas name. Touch the [<ÁÑ] to toggle
to symbols. Touch the [1AZ] key to toggle back to
