TotalAlert Infinity™ HTM Medical Gas Notification System

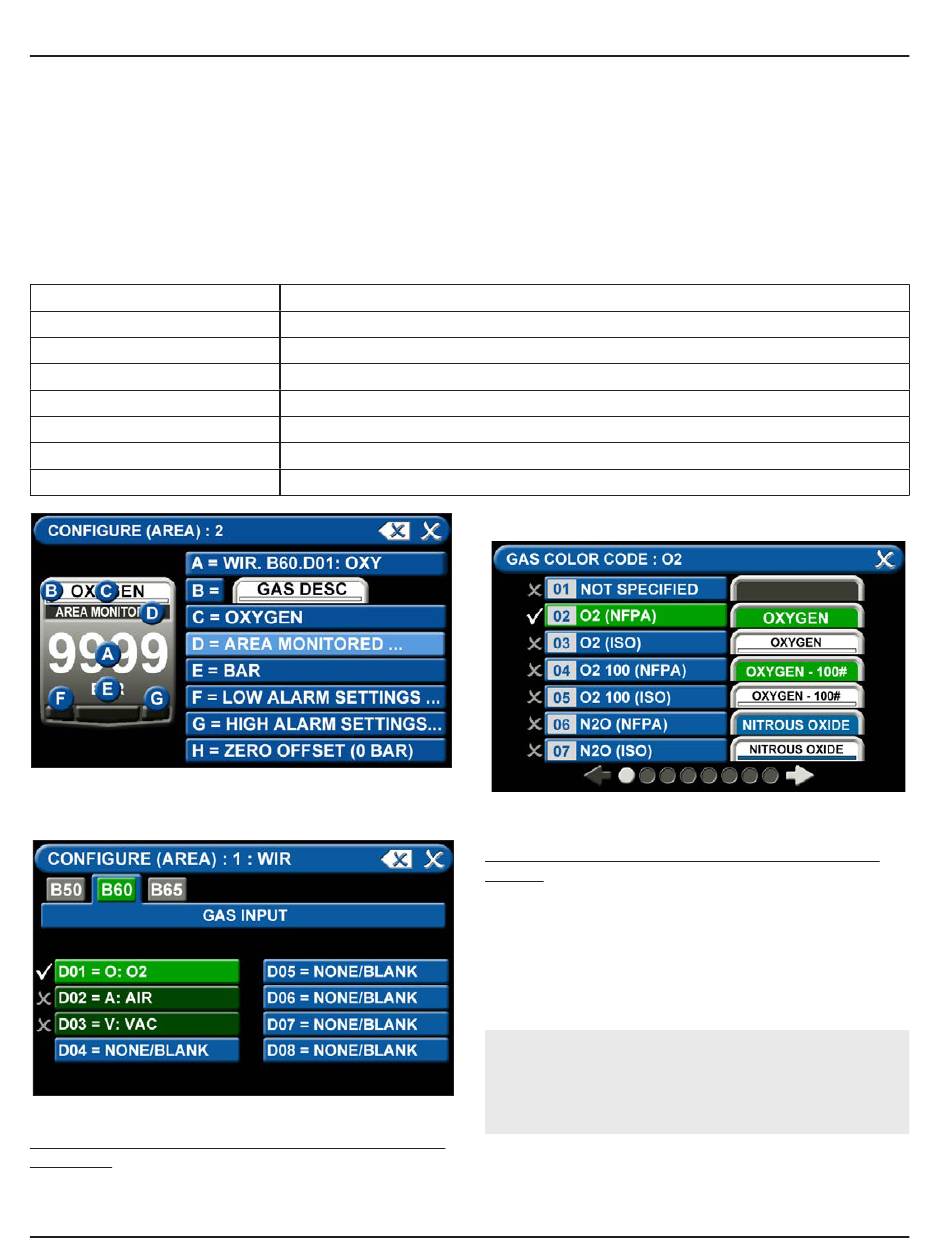

4.5.2 Configuring Gas ID Badges

The TotalAlert Infinity™ Area alarm is designed to allow
configuration of eight gas badges using the B60 board.
To configure the first badge to custom settings, touch
the [1] button in the numeric display of the configura-
tion screen (Figure 4.83).
Eight tabs are used for configuration (Figure 4.89). Tabs
are listed in alphabetical order.
A = [GAS INPUT]
B = GAS DESC
C = [GAS NAME]
D = AREA MONITORED
E = [UNITS OF MEASURE]
F = LOW ALARM SETTINGS
G = HIGH ALARM SETTINGS
H = ZERO OFFSET
Figure 89: Configuring Gas Badges
A = [Gas Input] Tab
Figure 90: [Gas Input] Tab
To change which wired sensor should be displayed on
that badge:
1. Touch the tab for the appropriate wired gas sensor.
2. Touch the Save button to close the screen.
4107 9016 60.01
To change which wired input should be shown on the badge
To change color codes based on standard and country
To label the gas
To edit the location label for a specific gas
To change the displayed unit of measure for the pressure/vacuum
To adjust the value that indicates that the pressure is low
To adjust the value that indicates that the pressure is high
To make small adjustments to the displayed pressure based on user preference
4-26
B = Gas Desc Tab
Figure 91: Gas Color Code Screen
To change color codes based on your standard and
country:
1. Scroll through the codes using the right and left
arrows at the bottom of the screen.
2. Touch the tab for the appropriate code.
3. Touch the Save button when you see a check
beside your selection.
NOTE:
If the alarm default is correct, touch the X button
in the upper right to close the screen.
