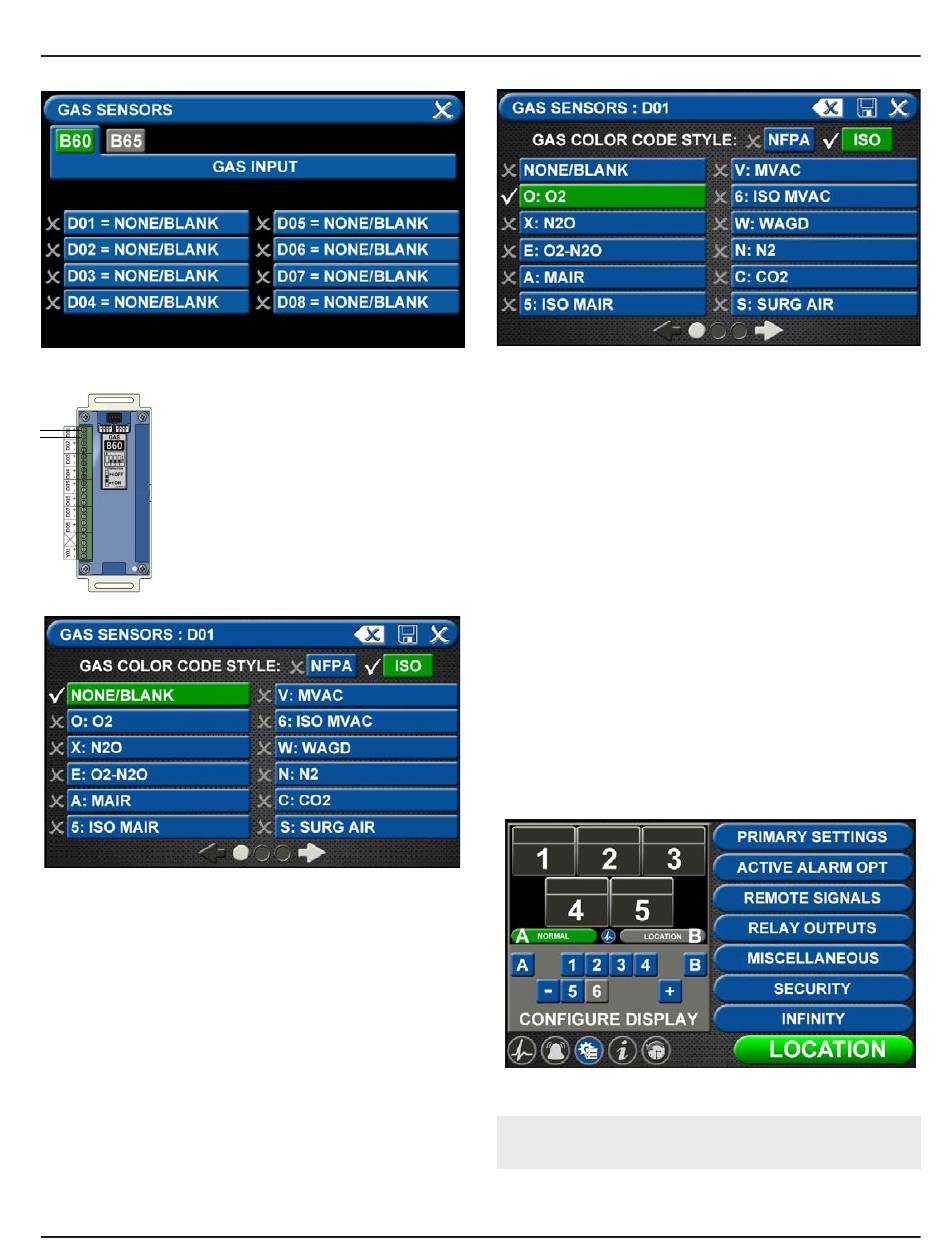

Figure 57: Gas Input Screen
Up to eight different gases may be
selected on the GAS INPUT screen.
These gases correspond to the digital
gas sensors wired into the GAS INPUT
/ B60 board. To select the first gas,
touch the D01 = NONE/BLANK tab.
Figure 58: Gas Sensors Screen
Select the gas that is wired into the D01 input on the
GAS INPUT / B60 board. Touch the right and left arrows
at the bottom of the screen to scroll through additional
gas choices, including options to create custom mixes.
Figure 59: Gas Sensors Selection
Touch the Save button when you see a check beside
your selection (If an alarm sounds, press the Mute
button on the panel under the screen and continue
with setup).
Repeat starting at step 4.57 to add additional gases.
Touch the X button in the upper right to close the GAS
SENSORS screen and return to the PRIMARY SETTINGS
screen. Touch the X button in the upper right to close
the PRIMARY SETTINGS screen. The alarm will retain
your information.

4.4.2 Configuring Source Badges

The TotalAlert Infinity
allow the setup and monitoring of 6 source badges.
Forty source locations with up to 8 source signal inputs
for each location can be configured (maximum of 20
locations per gas type).
To configure alarm points in the first badge, touch the
Figure 60: Configuration Screen
Note:
Maximum wired input signals allowed is 20.
4-17
