TotalAlert Infinity™ HTM Medical Gas Notification System

4.5.2 Configuring Source Badges

The TotalAlert Infinity combination alarm is designed
™
to allow the configuration of ten source badges. Twenty
locations with up to eight source signals each can be
tied to each source badge.
To configure alarm points in a central badge, touch the
[1] button on the configuration screen (Figure 4.83).

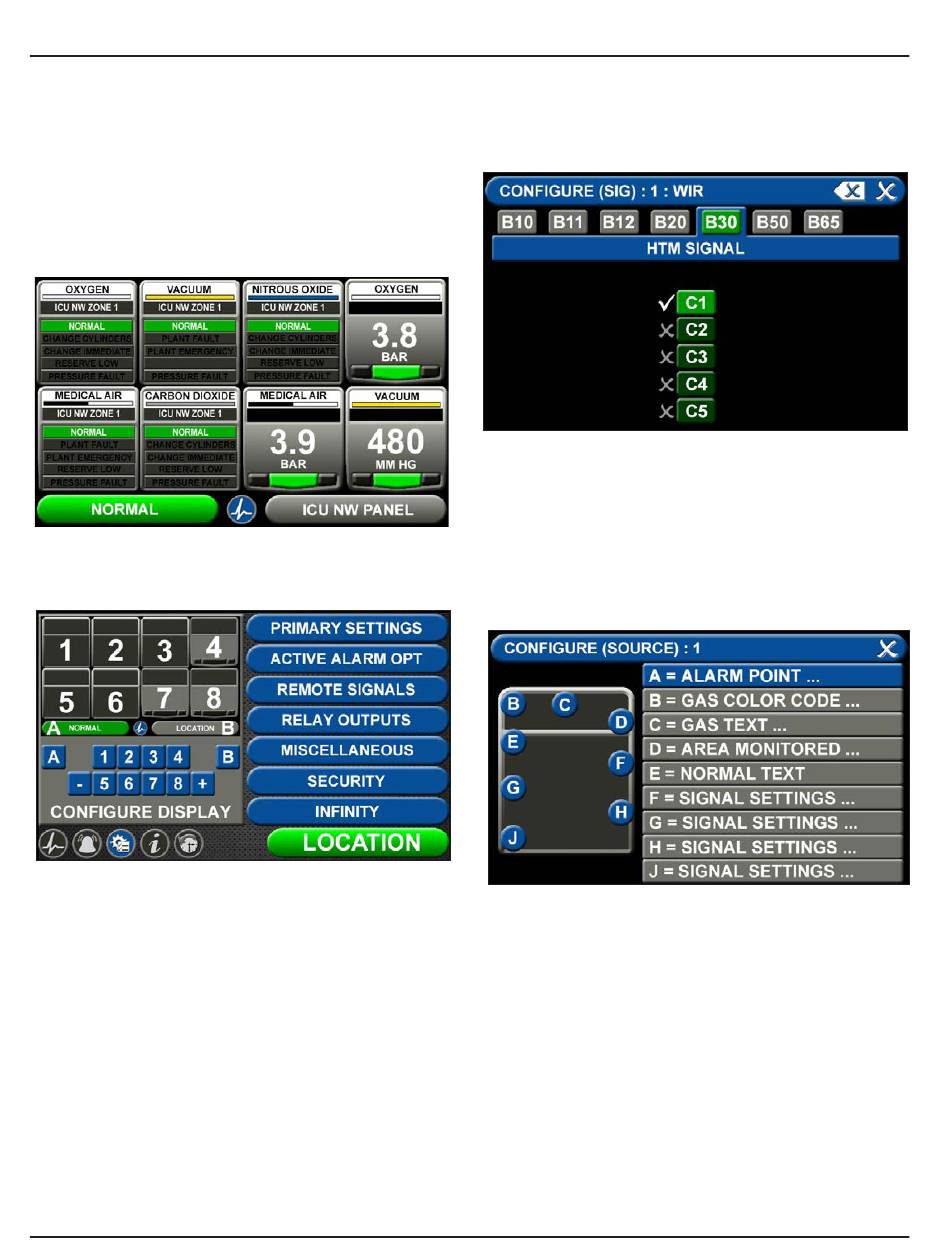

Figure 82: Combination Alarm Screen
• Configure (Source) Badge
Figure 83: Configure Source Screen
4107 9016 60.01
A = Alarm Point
Touch the ALARM POINT tab to select the
proper HTM Signal.
Figure 84: HTM Signal Configuration Screen
To identify the location where the wires are landed:
1. Touch the tab for the appropriate board and
terminal block. (C1, C2, C3, C4, C5)
2. Touch the Save button when you see a check
beside your selection.
B = Gas Color Code Tab
Figure 85: Configuration Screen
To select the color code for the appropriate gas based
on your standard and country:
1. Touch the B = GAS COLOR CODE tab (Figure 4.85)
2. Scroll through the gas types using the right and left
arrows at the bottom of the screen.
3. Touch the tab for the appropriate code, or select a
"custom" tab to create a unique source badge.
4. Touch the Save button when you see a check be-
side your selection.
4-24
