BeaconMedaes TotalAlert Infinity Installation, Operation And Maintenance Instructions page 40

TotalAlert Infinity™ HTM Medical Gas Notification System
Panel ID Description
To change the description of the location of the alarm
panel:
1. Touch the [B] button that is located to the right of
the numeric display (Figure 4.17).
2. Touch the Erase button on the keyboard to delete
the existing description.
3. Enter the new description.
4. Touch the Save button.

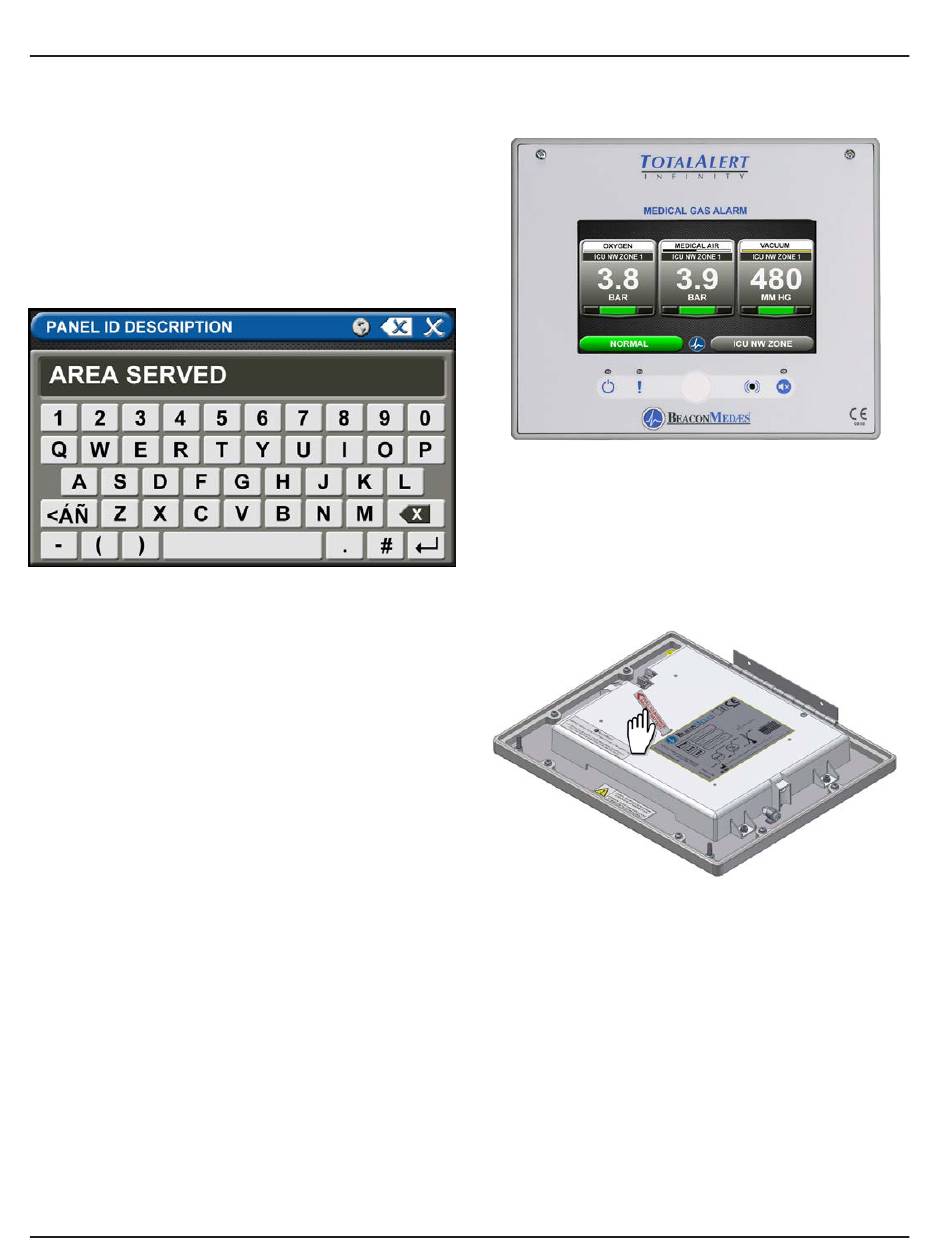

Figure 19: Panel ID Description screen
4107 9016 60.01
4.3 Setting Up an Area Alarm
Figure 20: Area Alarm Main Screen
4.3.1 Initial Setup of an Unconfigured
Area Alarm
To begin setup of the alarm, first pull the battery tab
located on the back of the front panel to activate
battery backup of the alarm.
Figure 21: Battery Pull Tab
4-6
