TotalAlert Infinity™ HTM Medical Gas Notification System
D = Area Monitored
Figure 65: Configure Channels
Touch the D = (Area Monitored) Tab

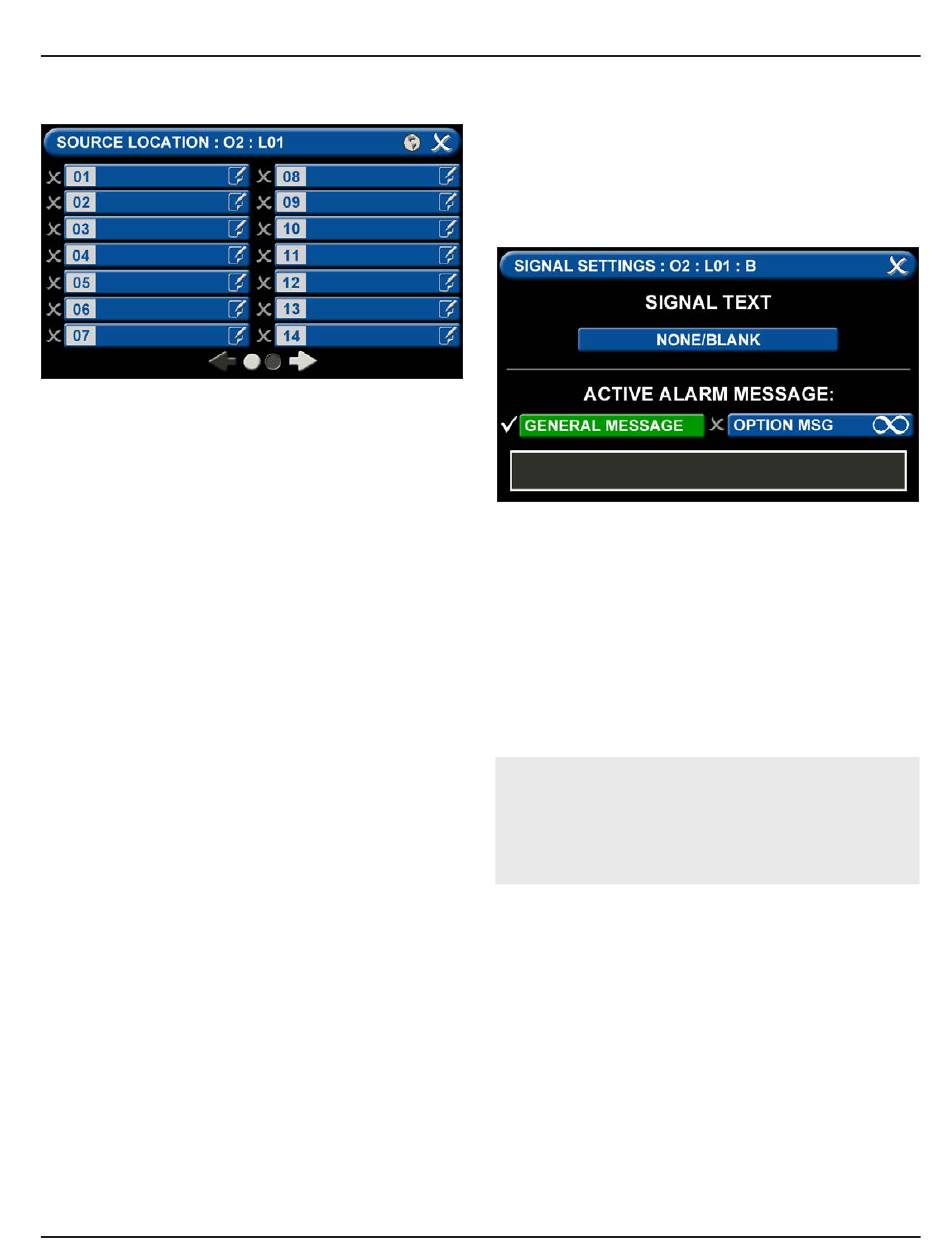

On the SOURCE LOCATION screen:
1. Touch the 01 tab. 1.
2. Using the keyboard, enter the name of the location
for the source equipment being monitored (e.g.,
ROOM 1). Enter multiple locations as needed (e.g.,
Manifold Room, Roof Top, Source Room).
3. Touch the Save button. A check appears when the
location is saved. Note: To edit the location, touch
the Pencil button.
4. Touch the X button to close and return to the
CONFIGURE (SOURCE) screen.
Each Plant (Source) badge has room for 5 signal inputs
(E-J) (Figure 4.61). The first tab E is used to show the
alarm in "Normal" condition. The (F-H) inputs are used
for warning inputs such as "Change Cylinders" and flash
yellow when active. The last input (J) is used for the
fault condition and flashes red when in fault mode.
To select source signal input text:
Figure 66: Signal Settings Screen
1. Scroll through the options using the right and left
arrows at the bottom of the screen.
2. Touch the tab for the appropriate option, or select
a blank to create a custom alarm.
3. Touch the Save button when you see a check
beside your selection to close and return to the
SIGNAL SETTINGS screen.
4. Touch the X button in the upper right to close and
return to the CONFIGURE (SOURCE) screen.
Active Alarm Instruction:
To set facility instructions for active alarms, touch
either the GENERAL MESSAGE or OPTION MSG tab.
The alarm defaults to GENERAL MESSAGE. See
Section 4.6 for how to set up custom instructions.
