TotalAlert Infinity™ HTM Medical Gas Notification System
C = Area Monitored Tab
To add areas to be monitored:
1. Touch the AREA MONITORED tab.

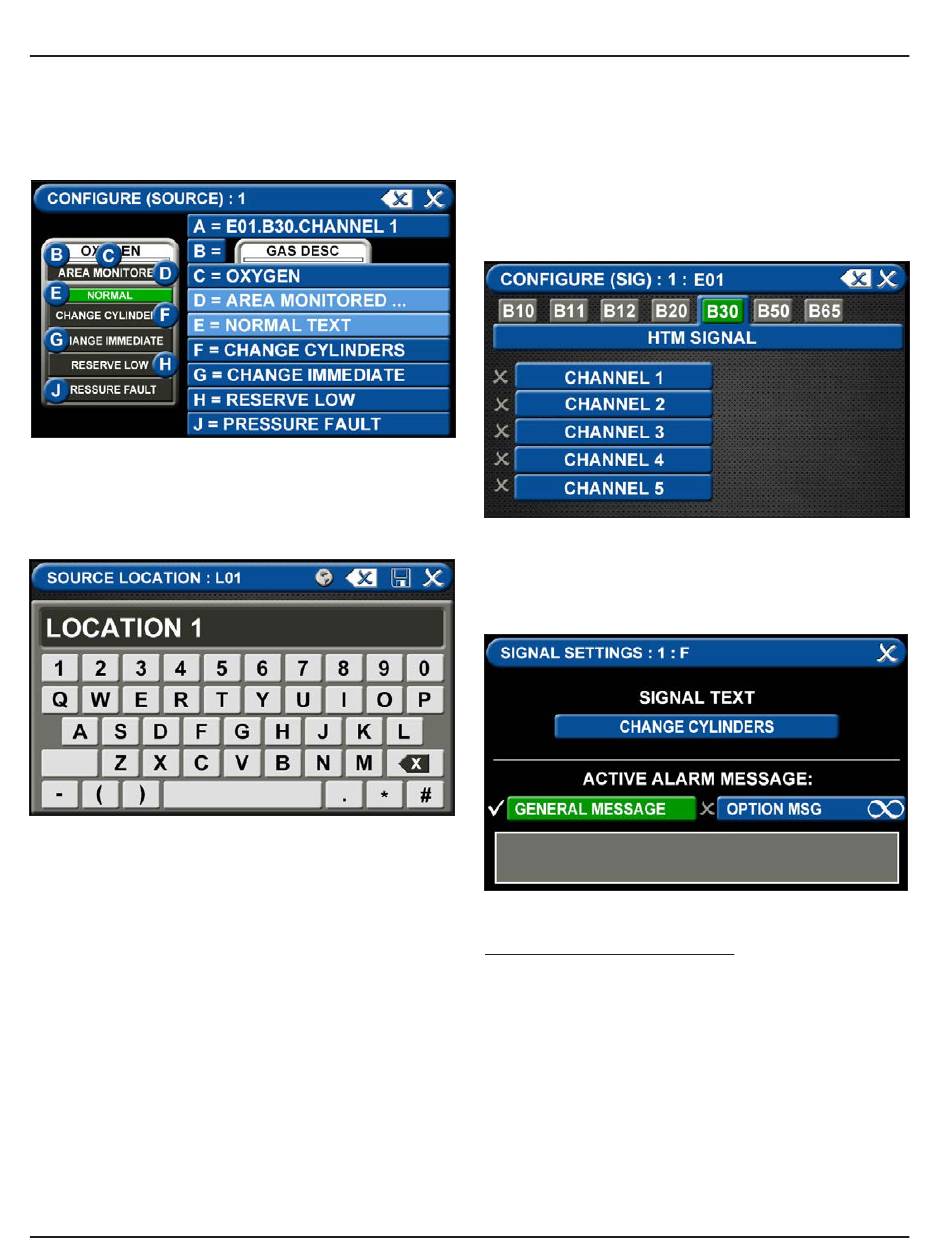

Figure 147: Configure Source Screen
2. Using the keyboard, enter the name of the area
monitored
3. Touch the save button.
Figure 148: Location Keyboard
4107 9016 60.01
D = Normal Text
• Defaults to Normal condition
E = Alarm Point Tab
• Touch the ALARM POINT tab to assign a channel to
the badge.
• Select one of the five CHANNEL tabs.
• Touch the save button.
Figure 149: Configure Channels
Signal Settings (F-J)
• Choose SIGNAL SETTING Tab F-J
Touch the NONE/BLANK tab.
Figure 150: Signal Settings Screen
To select source signal input text:
• Scroll through the options using the right and left
arrows at the bottom of the screen.
• Touch the tab for the appropriate option, or select
a blank to create a custom alarm.
4-42
