Summary of Contents for BeaconMedaes Gemini

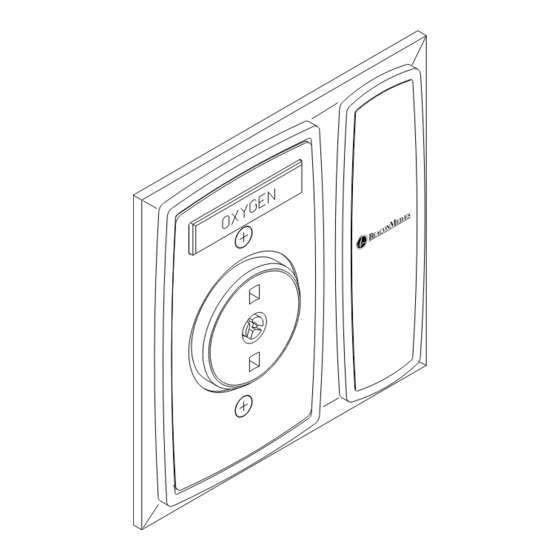

- Page 1 Service Manual Gemini, Diamond®II and Diamond®III Medical Gas Outlets for Concealed Piping and Console Applications MAN01-049 Part number 847706-00 Rev. C00...
-
Page 2: Table Of Contents
Replacement Components........9-12 Introduction This manual provides information needed to service BeaconMedæs Gemini, Diamond® II and Diamond® III Gas Outlets. Information contained in this manual is intended for use by technicians or personnel qualifi ed to repair and service medical equipment. -
Page 3: General Product Description
Primary valve closes when nipple is removed. WARNING: Do not use oil on adapters or outlets. Gemini Concealed Quick-Connect Front Body Gemini Concealed DISS Front Body Description Manufacturer MAN01-049 Part No. 847706-00 Rev. C00... -
Page 4: Tools And Service Materials
Tools and Service Materials Description Manufacturer Lubricant Krytox® GPL206 BeaconMedæs P/N GRS01-007 No. 2 Phillips screwdriver Local source No. 2 Flat-blade screwdriver Local source Oxygen compatible leak Sherlock or equivalent detector solution Cleaning and Lubrication BeaconMedæs outlets are cleaned for oxygen or the indicated service. -
Page 5: Outlet Identifi Cation
Diamond®II medical gas outlets must be upgraded to Gemini Medical gas outlets. Upgrade of Diamond II® Medical Gas Outlets Rough-in assembly must be upgraded to accept Gemini front body. This requires installation of a new spring, secondary check, o-ring, rubber seal and retaining ring. -
Page 6: Outlet Assembly Ordering
Outlet Assembly Ordering Complete assemblies for concealed piping and console applications. Gemini/Diamond® III Assembly Numbers Outlet Type Gas Service Rough-in Assembly Finish Assembly Gemini Oxygen 234510-00 234610-00 Nitrous Oxide 234511-00 234611-00 Concealed 234512-00 234612-00 Quick-Connect Vacuum 234513-00 234613-00 WAGD 234519-00... -
Page 7: Service
- secondary check and bushing in back Lock ring body prevents fl ow from outlet. Adapter locking spring on Gemini/Diamond® III front body housing, and front body o-ring, can be replaced by dismantling housing as follows: 1. Loosen two front body screws. -
Page 8: Troubleshooting Guide
Troubleshooting Guide Symptom Possible Cause Corrective Action Quick-Connect or DISS Valve Leaks... • without quick-connect • Faulty primary seal • Replace primary seal adapter in place • Faulty rubber bushing • Replace rubber bushing • with quick-connect adapter in • Faulty primary seal •... -
Page 9: Replacement Components
Replacement Components Gemini and Diamond® III Outlets Concealed Wall Outlet Back Body Console Wall Outlet Back Body Item Part Number Description 4107 2097 29 Spring (Bronze) for pressure gases (pkg of 10) 4107 2097 30 Spring (SS) for vacuum and... - Page 10 290804-PG and 1 each of 831344-PG, as shown as item 6. Do not interchange Keying Discs or Front Body Cylinders between Gemini and Diamond® III Diamond III: To repair 10 outlets, order 1 each of applications. Repairs may result in leakage.
- Page 11 290804-PG and 1 each of 831344-PG, as shown as item 6. Do not interchange Keying Discs or Front Body Cylinders between Gemini and Diamond® III Diamond III: To repair 10 outlets, order 1 each of applications. Repairs may result in leakage.
-
Page 12: Replacement Components
Replacement Components DISS Outlets DISS Concealed Wall Outlet DISS Console Outlet Item Part Number Description Piston (Not available as separate item. Order appropriate repair kit below.) O-ring 622585-PG For Oxygen, Vacuum, Evacuation and WAGD (pkg of 10) 622586-PG For N2O, Air, N2 and CO2 (pkg of 10) Refer to page 6 for complete replacement assemblies.
