TotalAlert Infinity™ HTM Medical Gas Notification System
2.3.12 Field Wiring Cable Shield
Grounding
All field wiring cable shields must be grounded inside
alarm panel back box.
Studs are provided in the top and bottom of the alarm
back box for ring terminals (Figure 2.11).
Shields from several cables may be wrapped together
and crimped into one ring terminal (by others).

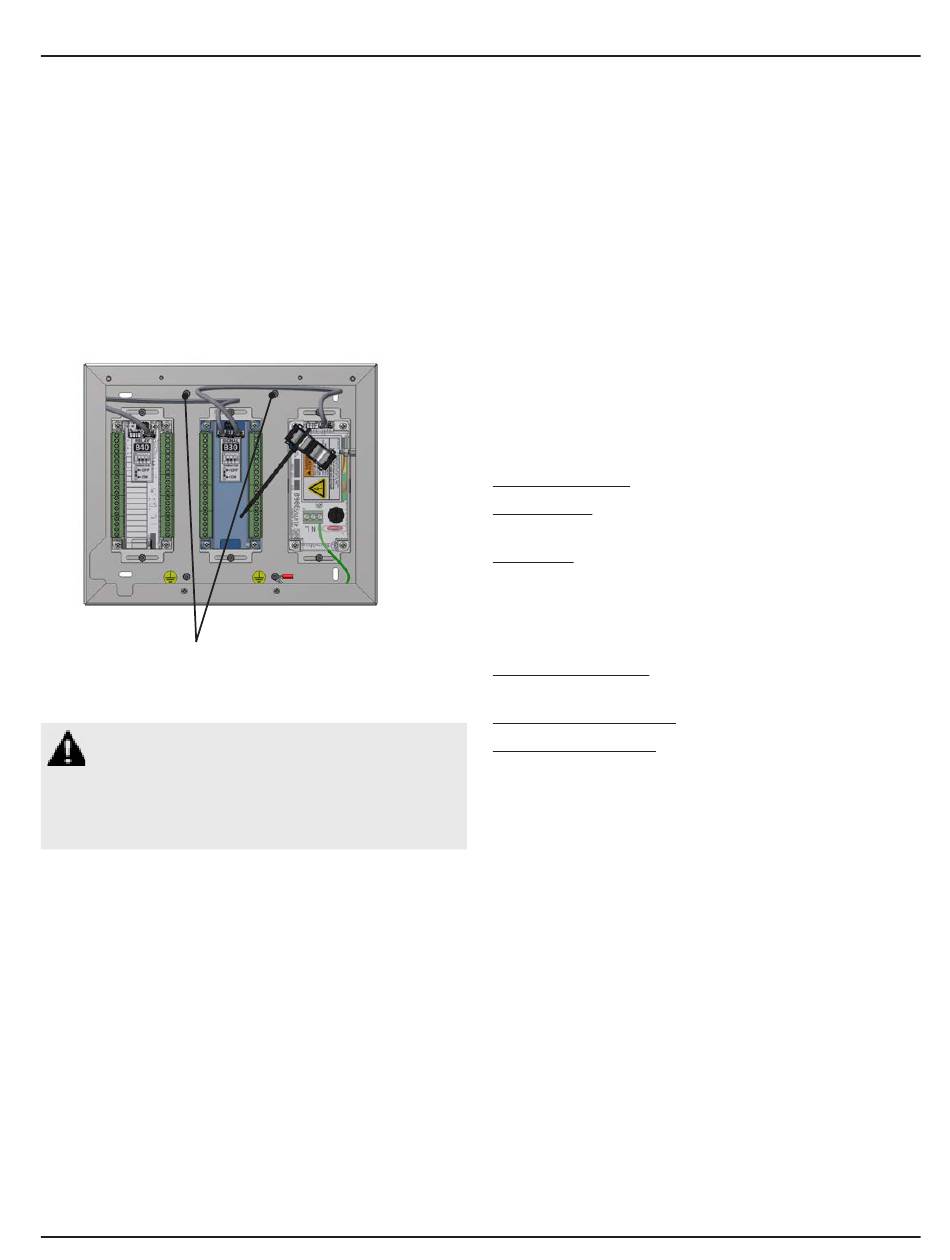

Grounding Studs
Figure 2.11: Cable Shield Grounding-Zone
CAUTION:
Keep shield wires to ground screw as short as
possible so they can not touch front panel circuit
boards when front panel is closed.

2.3.13 BACnet

The BeaconMedæs TotalAlert Infinity™ HTM control
systems utilize the TCP/ IP family of protocols for
communication and each alarm has a unique IP
address.
Each BACnet enabled TotalAlert Infinity™ alarm
conforms to the BACnet protocol.
• Protocol Implementation Conformance
Statement
Each BACnet enabled TotalAlert Infinity™ alarm has
available a Protocol Implementation Conformance
Statement (PICS). The PICS is a written document
created by BeaconMedæs that identifies the particular
options specified by BACnet that are implemented in
the TotalAlert Infinity™ alarm.
• BACnet Conformance
BACnet Vendor ID: 543
Alarm Profile: BACnet Smart Sensor (B-SS)
BIBB (BACnet Interoperability Building Blocks)
Supported:
• Read Property - B (DS-RP-B)
• Dynamic Device Binding - B (DM-DDB-B)
• Dynamic Object Binding - B (DM-DOB-B)
Object Type Support: Analog value, Binary value,
Device.
Data Line Layer Options: ISO 8802-3 ("Ethernet") LAN
Character Set Support: ISO 10646 (UTF-8)
Encoding
2-7 4107 9016 60.01
